MACRO VIEW
SKU: RM05-001

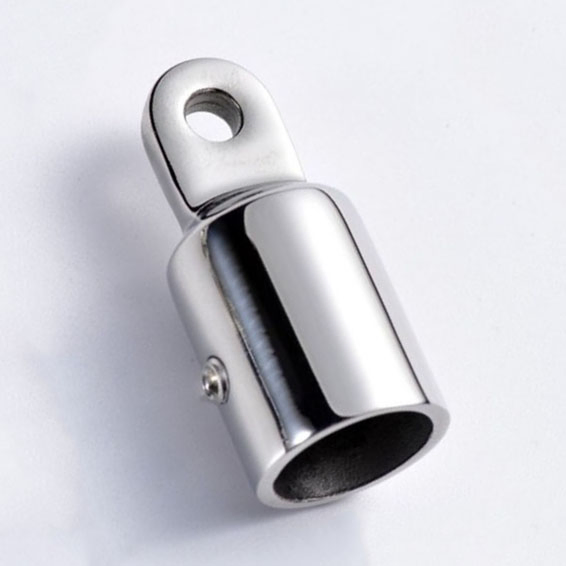

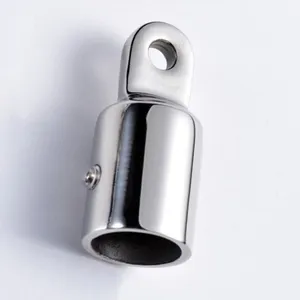

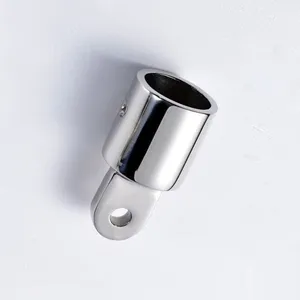

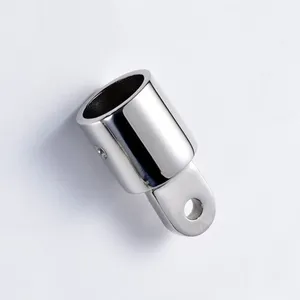

Standard Bimini Top Eye End Cap
Heavy-gauge 316L eye end cap. Precision-calibrated internal diameter ensures seamless tube integration, eliminating rattle under wave impacts.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Machined Tube Integration
Calibrated inner diameters (ID) are engineered to fit standard marine rails seamlessly, eliminating structural rattle.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear and offshore pounding.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic.

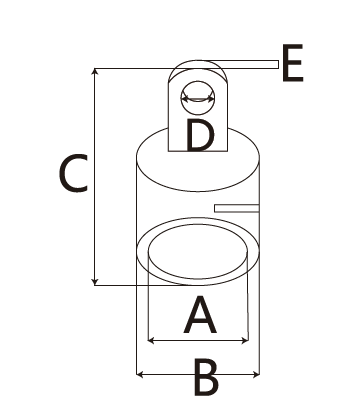

Dimensional Specifications
| RM05-001 | 19mm Bimini Top Cap | 19.5 | 25 | 55 | 6.5 | 7 |
| RM05-001 | 20mm Bimini Top Cap | 20.5 | 26.5 | 55 | 6.5 | 7 |
| RM05-001 | 22mm Bimini Top Cap | 22.5 | 28.8 | 58 | 6.5 | 7 |
| RM05-001 | 25mm Bimini Top Cap | 25.8 | 31.8 | 56 | 6.5 | 7 |
| RM05-001 | 30mm Bimini Top Cap | 30.8 | 37.5 | 61 | 6.5 | 7.2 |
| RM05-001 | 32mm Bimini Top Cap | 32.8 | 39.6 | 61 | 6.5 | 7.2 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
Standard Bimini Top Eye End Cap
