MACRO VIEW
SKU: RM05-006

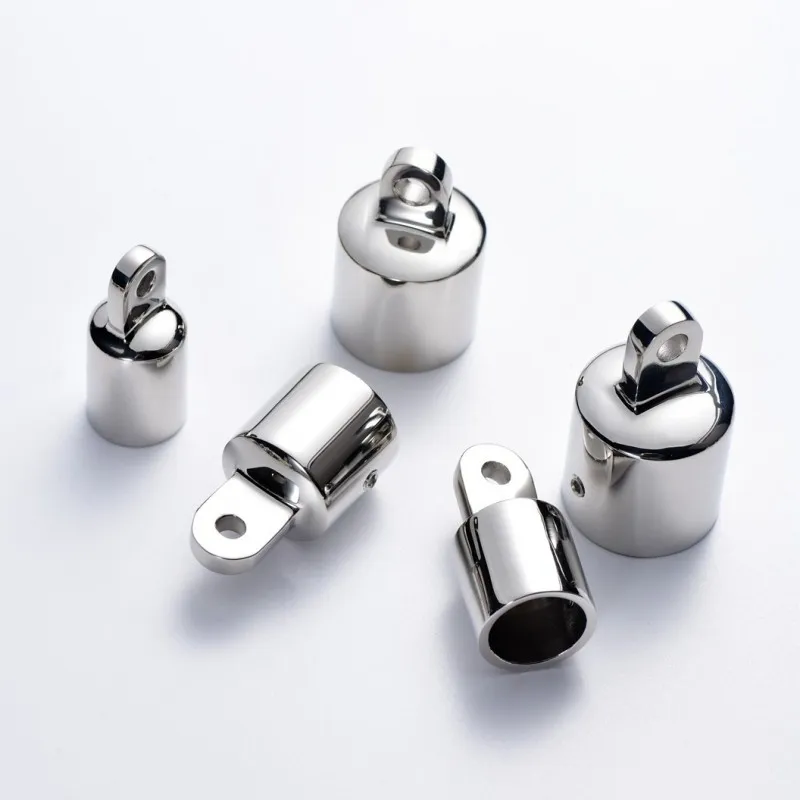

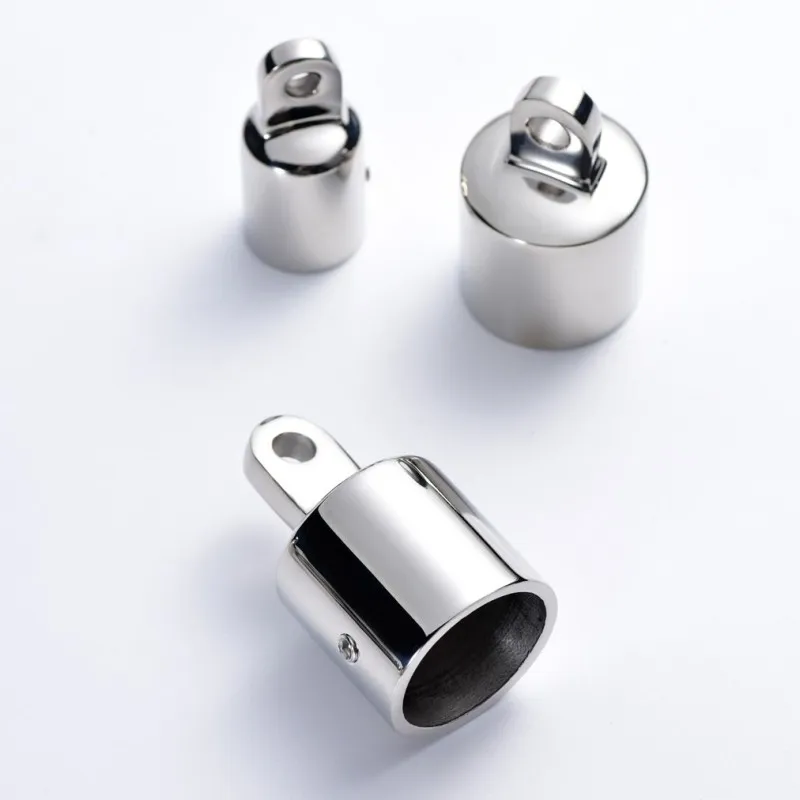

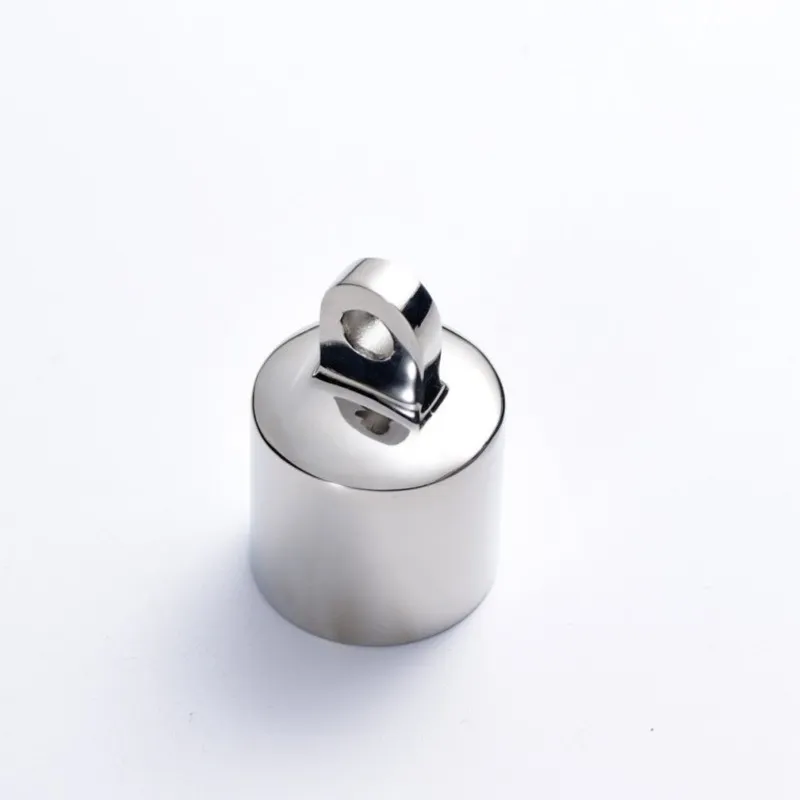

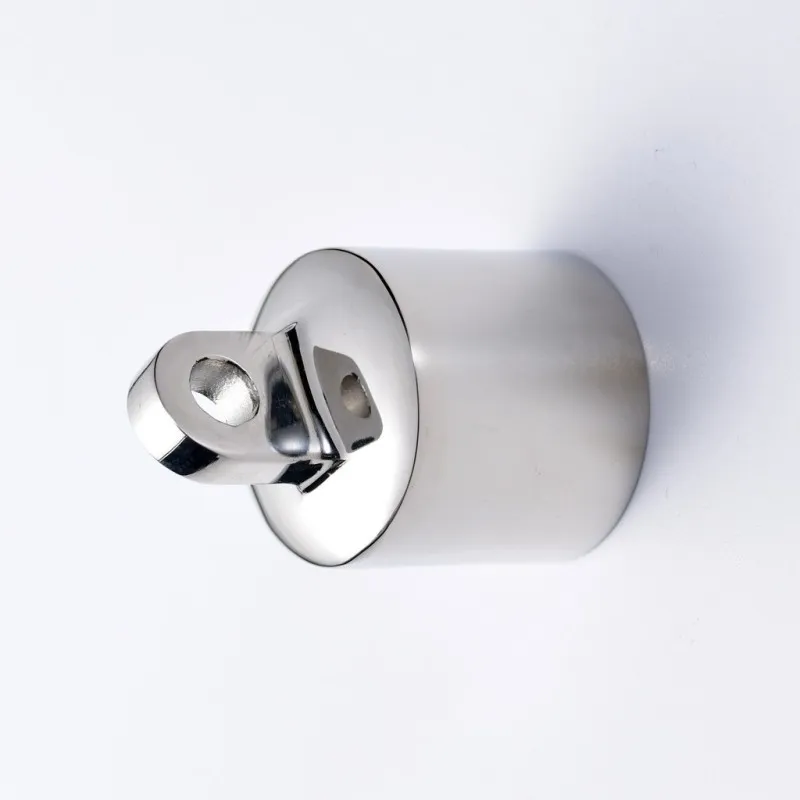

Counter-sunk Eye End Top Fitting
Flush-fastened 316L top fitting. Countersunk screw ports allow bolt heads to sit below the surface, eliminating line snags on active decks.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Anti-Chafe Countersunk Ports
Precision-tapered screw holes allow fasteners to sit flush, ensuring adjacent sails or ropes slide freely over the joint.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

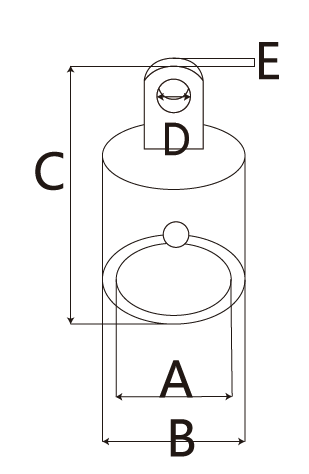

Dimensional Specifications
| RM05-006 | 22mm Countersunk Top Cap | 22.6 | 28.8 | 60 | 6.5 | 6.4 |
| RM05-006 | 25mm Countersunk Top Cap | 26 | 32 | 60 | 6.5 | 6.5 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
