MACRO VIEW
SKU: RM05-003

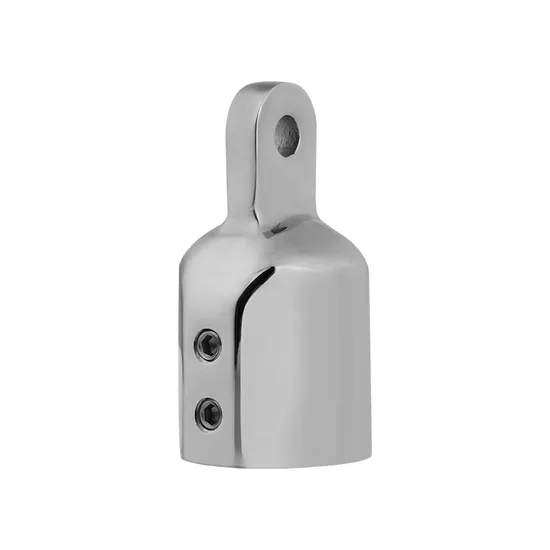

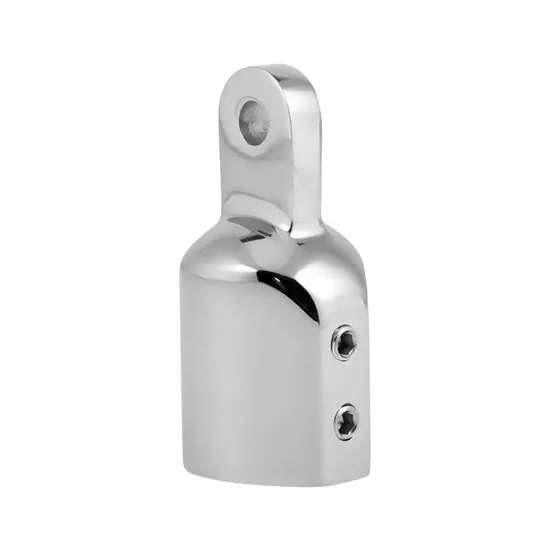

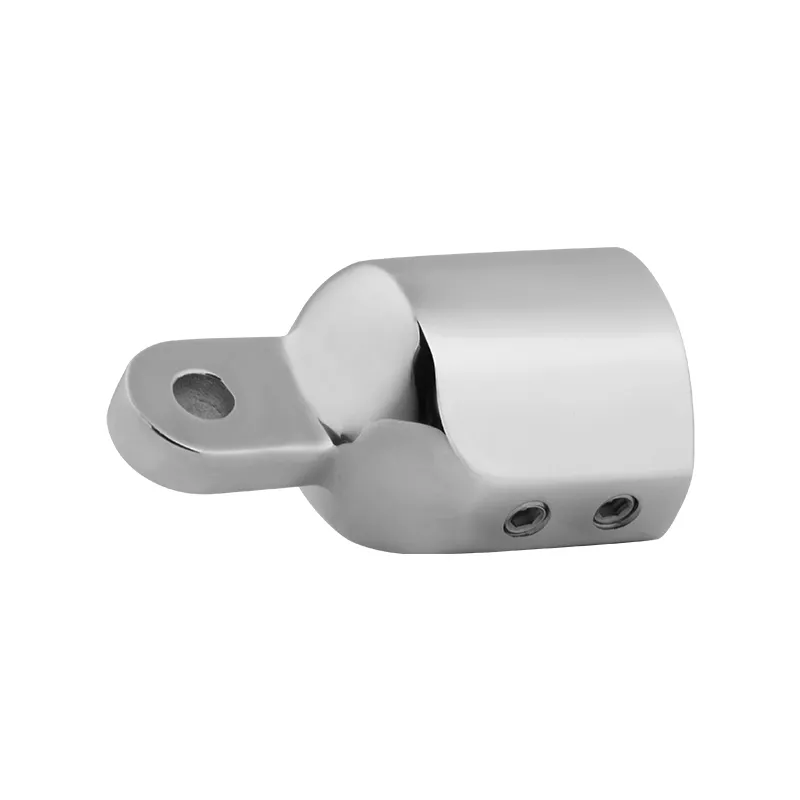

HD Bimini Eye End (Dual Set Screws)
Extreme-grip 316L top cap. Twin heavy-duty set screws double the clamping force, absolutely preventing tube slip under violent wind shear.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Dual-Axis Fastening Lock
Two robust set screws dig into the stainless tubing, providing unparalleled resistance against pull-out forces.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

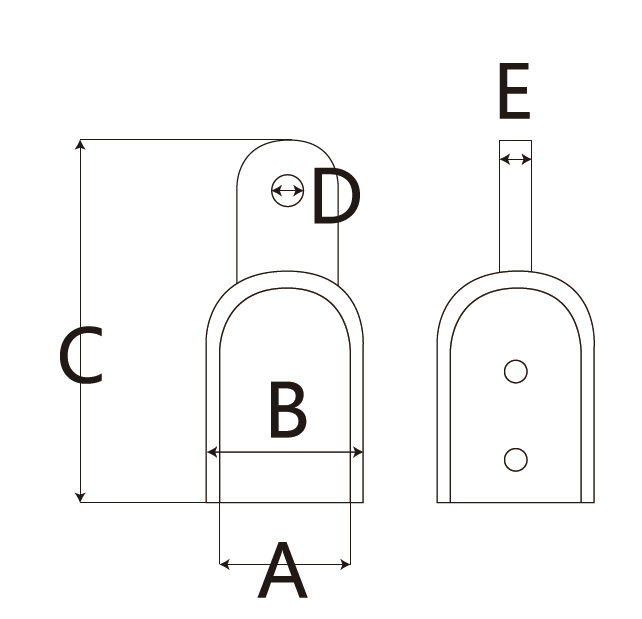

Dimensional Specifications
| RM05-003 | 7/8" Top Cap with Double Set Screws | 22.7 | 29.5 | 70 | 6.7 | 7 |
| RM05-003 | 1" Top Cap with Double Set Screws | 25.8 | 33.2 | 70 | 6.7 | 7 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
Direct Factory Quote
Provide your target quantities. Our engineers will return a official quotation within 24h.
ITEM: HD Bimini Eye End (Dual Set Screws)
