MACRO VIEW
SKU: RM05-004

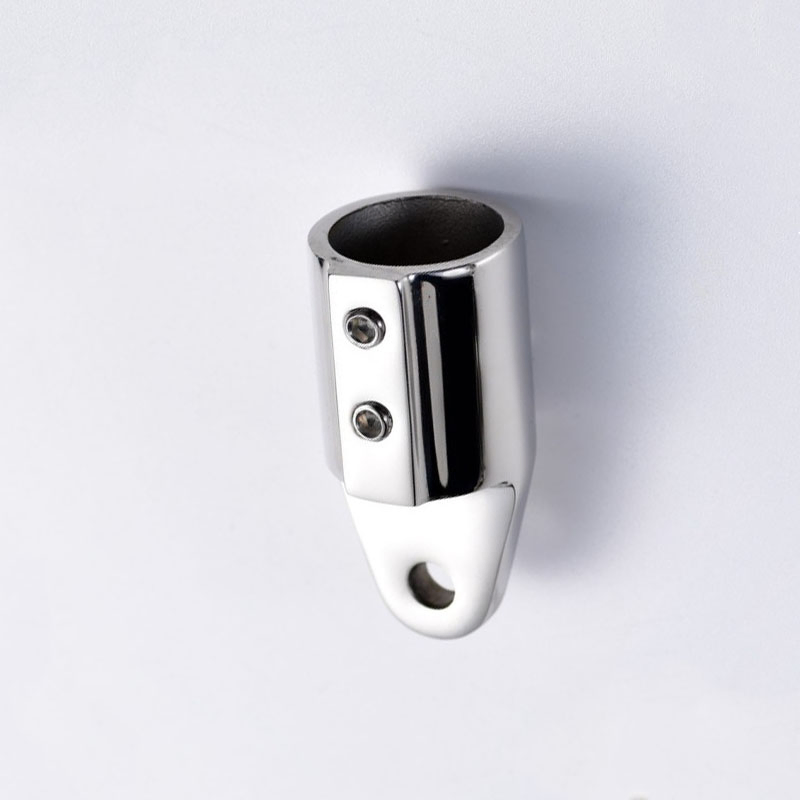

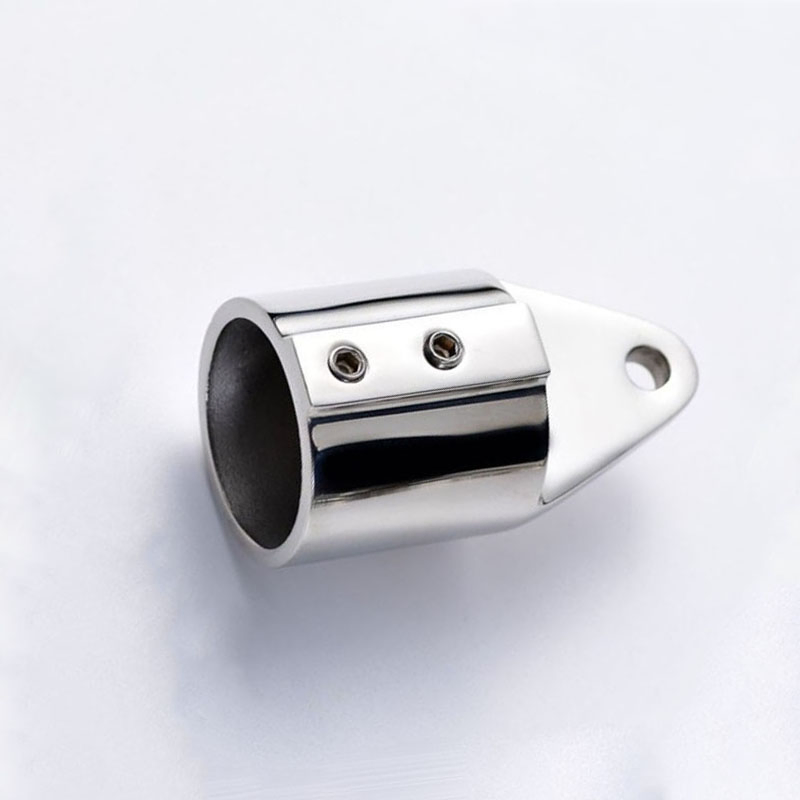

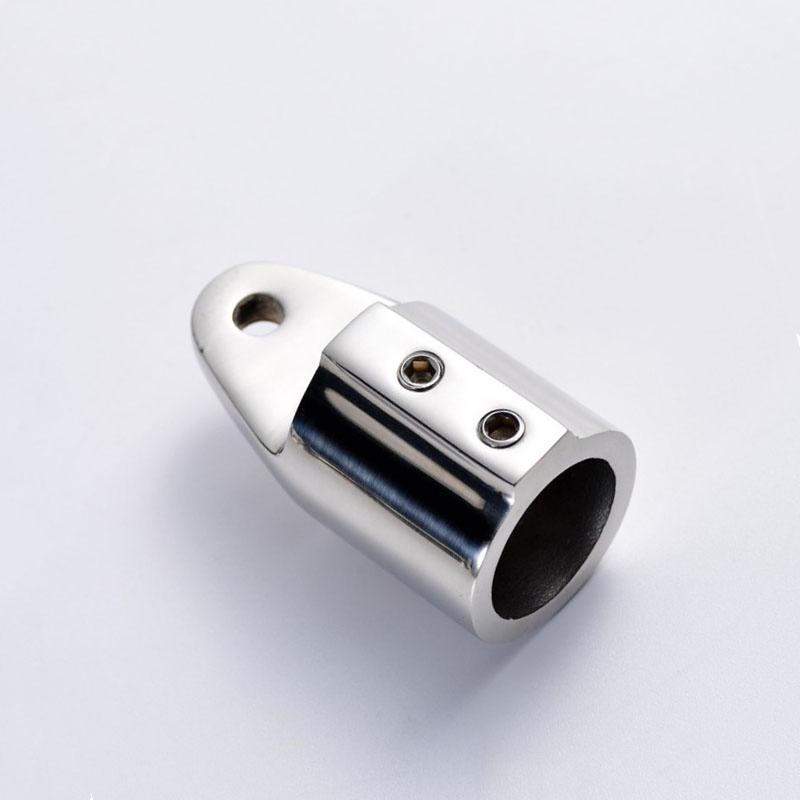

316 SS Triangle Eye End Cap
Tri-axial load 316L eye end. Distinctive triangular geometric head distributes canvas tension evenly across three vector points to prevent fatigue.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages

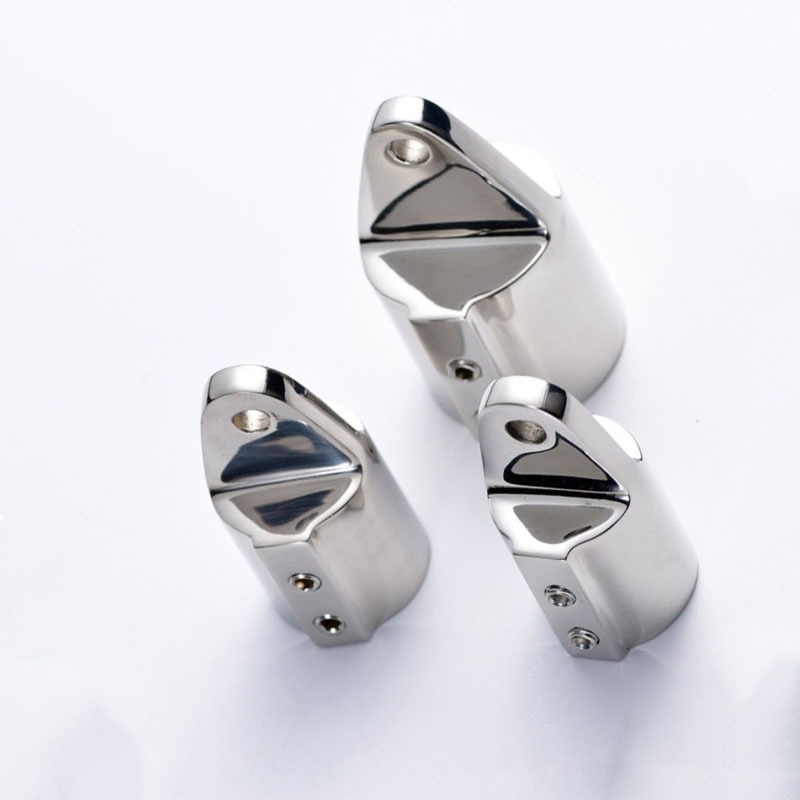

Vector-Optimized Triangular Head
Triangular profile reduces localized stress concentration on the pin hole, extending the life of the bimini frame.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

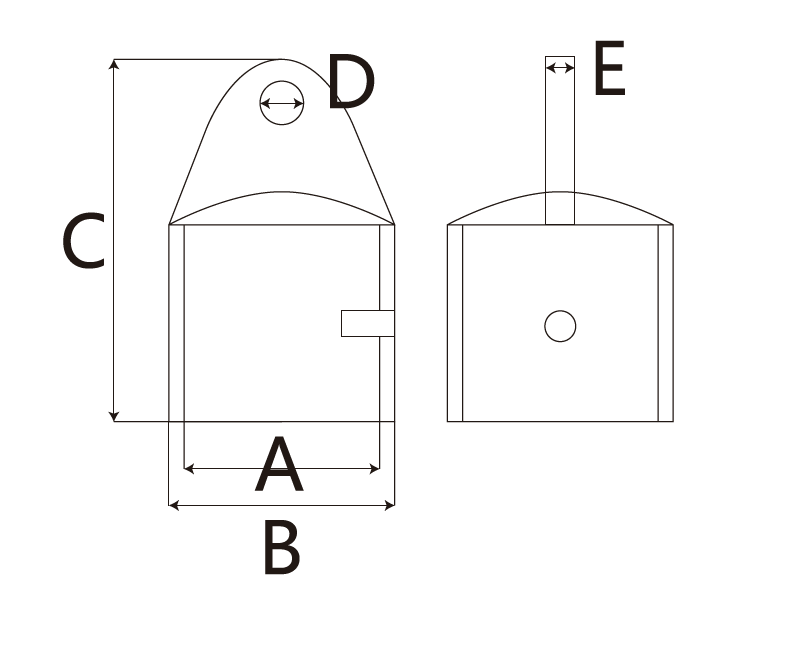

Dimensional Specifications
| RM05-004 | 22mm Triangle Top Cap | 22.5 | 28.5 | 52.5 | 6.4 | 6 |
| RM05-004 | 25mm Triangle Top Cap | 25.7 | 31.5 | 54 | 6.4 | 6.3 |
| RM05-004 | 30mm Triangle Top Cap | 30.5 | 38 | 66.5 | 8 | 7 |
| RM05-004 | 32mm Triangle Top Cap | 32.6 | 40 | 72 | 8 | 7 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
316 SS Triangle Eye End Cap
