SKU: RM05-002

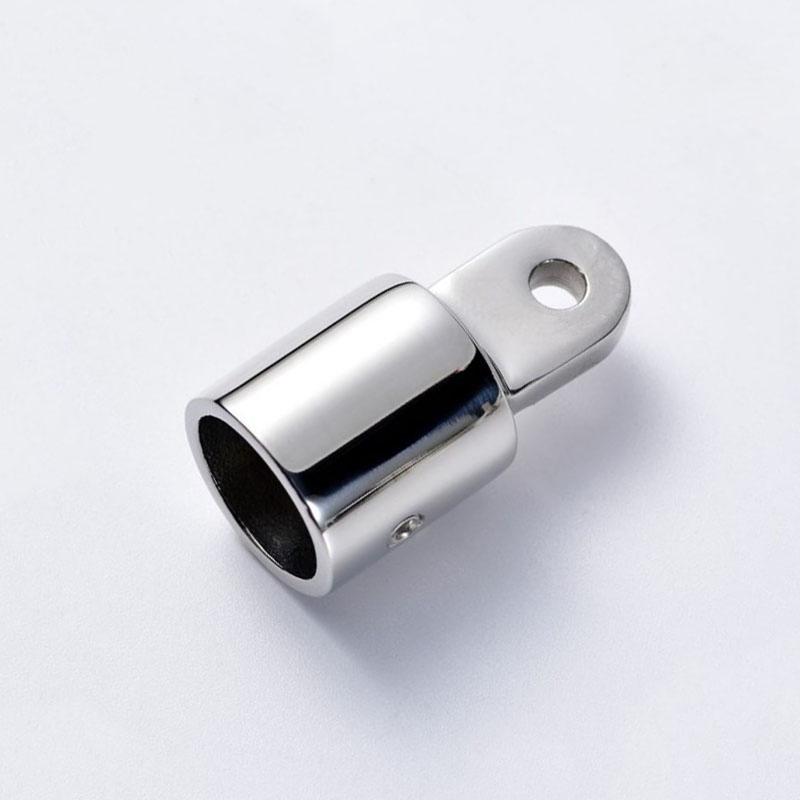

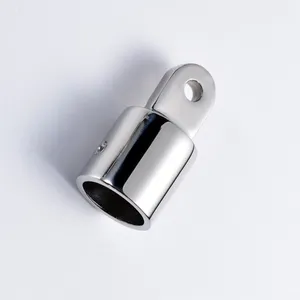

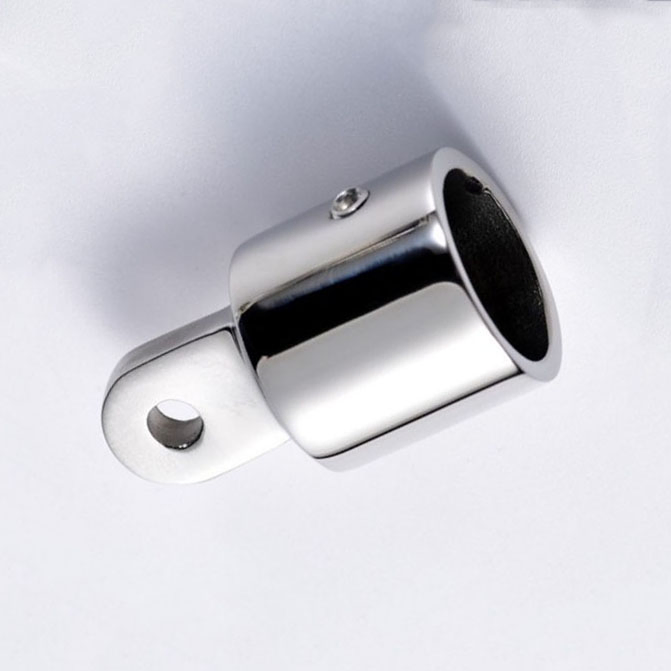

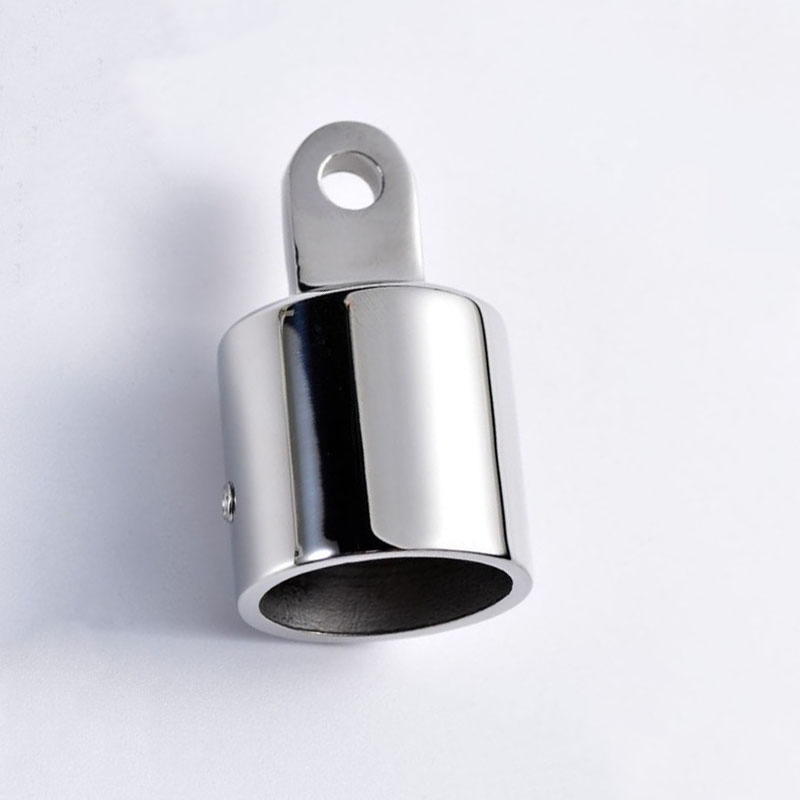

HD Eye End Cap with Oversized Hole
Commercial-grade large-hole 316L top cap. Enlarged articulation eye accommodates heavy-duty quick-release pins for massive canvas systems.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Oversized Articulation Clearance
Expanded pin hole supports thicker locking hardware, preventing shear failure on heavy commercial tops.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

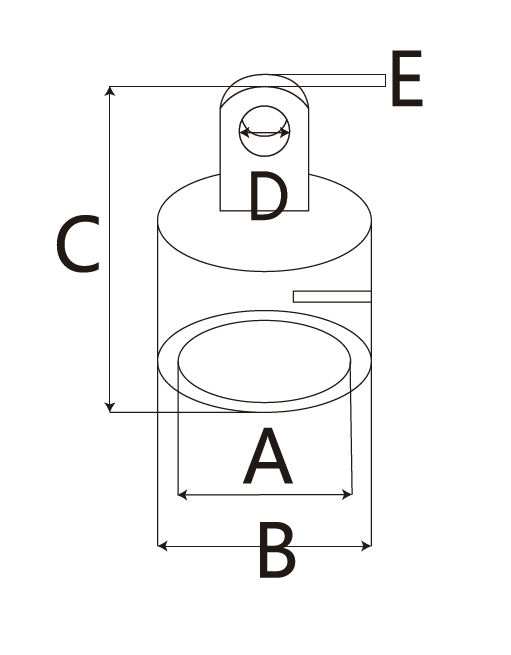

Dimensional Specifications
| RM05-002 | 25mm Heavy Duty Large Hole Top Cap | 25.8 | 32.5 | 57 | 8.2 | 7 |
| RM05-002 | 30mm Large Hole Top Cap | 30.8 | 37.5 | 61 | 8.2 | 7.2 |
| RM05-002 | 32mm Large Hole Top Cap | 32.8 | 39.6 | 61 | 8.2 | 7.2 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
