SKU: RM08-007

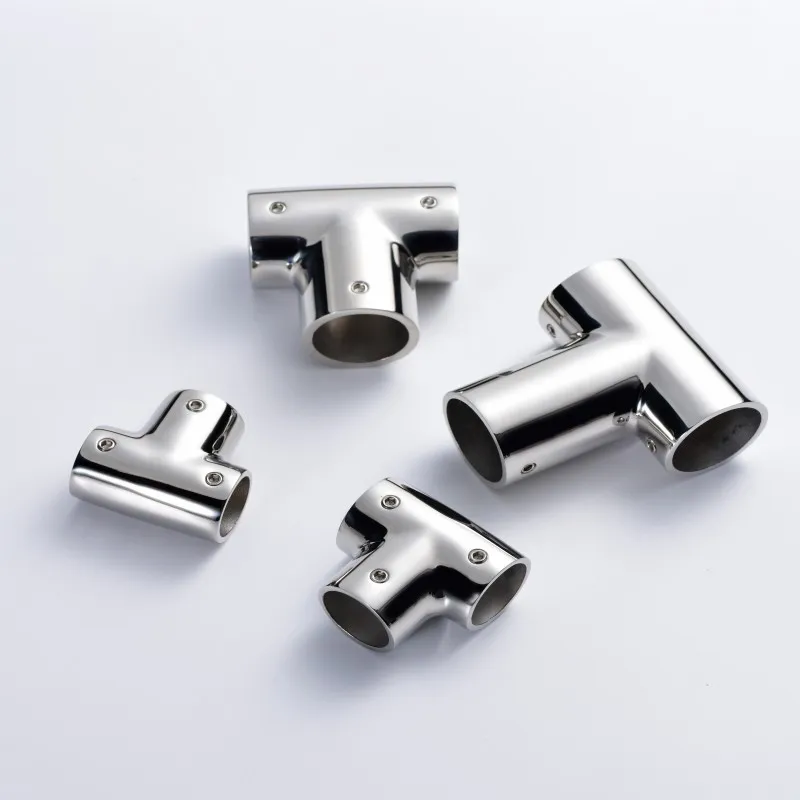

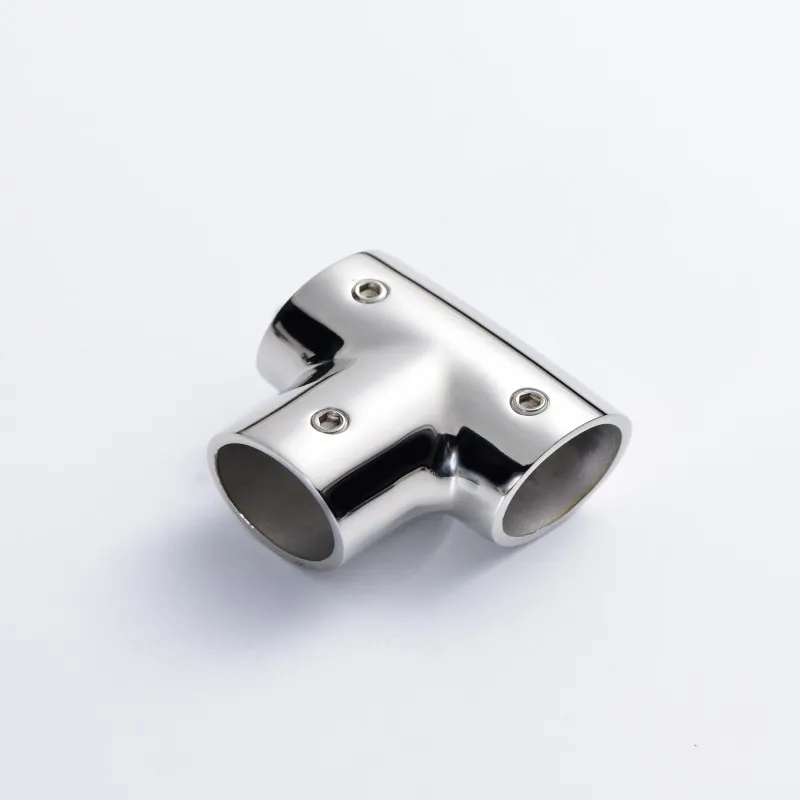

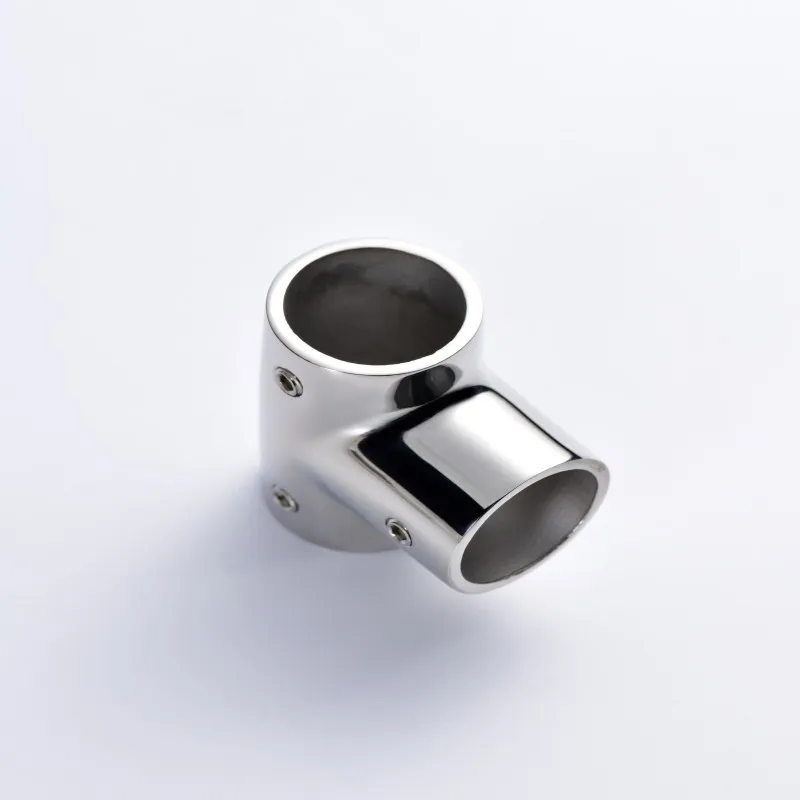

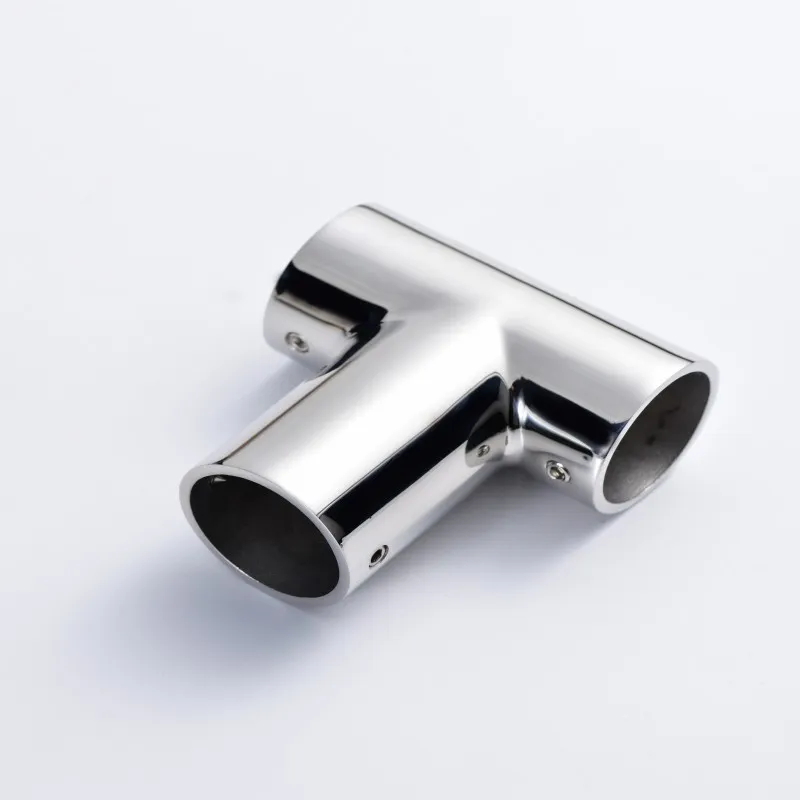

90-Degree Tee Rail Connector
Perpendicular 90-degree 316L tee connector. High-mass central T-junction provides maximum shear strength for perpendicular rail intersections.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Perpendicular Load Hub
CNC-machined 90-degree socket absorbs severe impact forces, preventing failure at critical handrail junctions.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

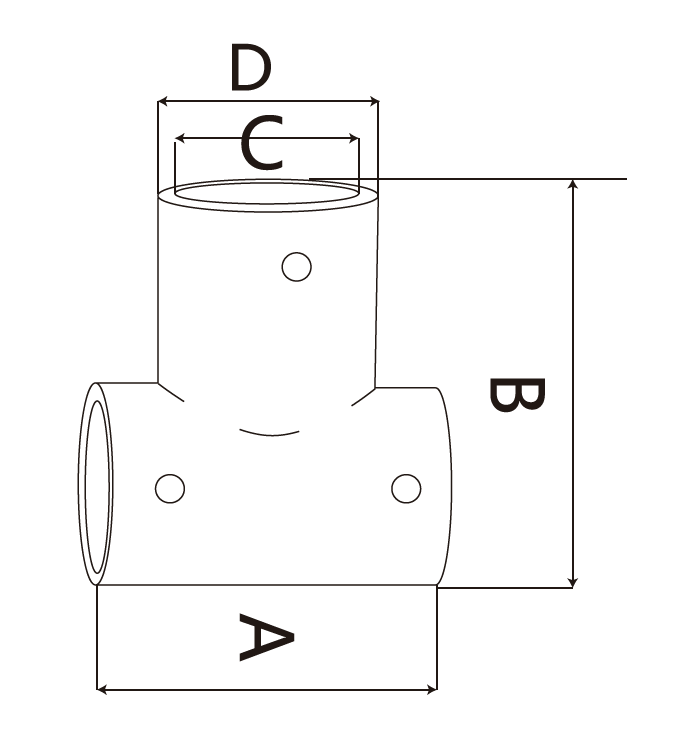

Dimensional Specifications
| RM08-007 | 90° 22mm Tee Fitting | 53 | 52 | 22.6 | 29.2 |
| RM08-007 | 90° 25mm Tee Fitting | 54 | 52 | 25.8 | 32 |
| RM08-007 | 90° 30mm Tee Fitting | 76 | 82 | 30.6 | 37.2 |
| RM08-007 | 90° 32mm Tee Fitting | 77 | 86 | 32.6 | 39.5 |
| RM08-007 | 90° 38mm Tee Fitting | 85 | 85 | 38.8 | 45 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
