MACRO VIEW
SKU: RM08-012

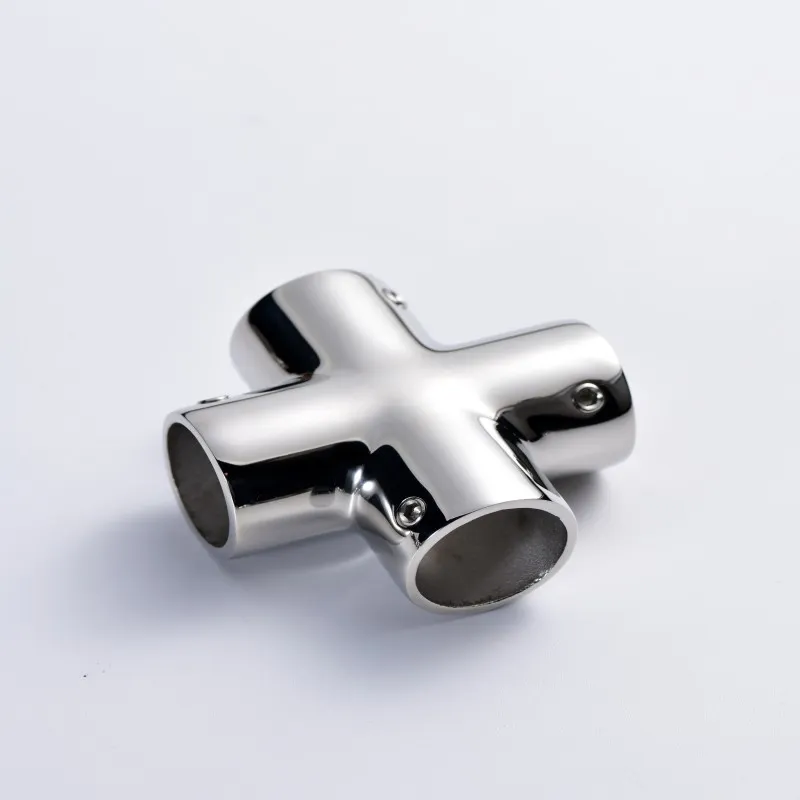

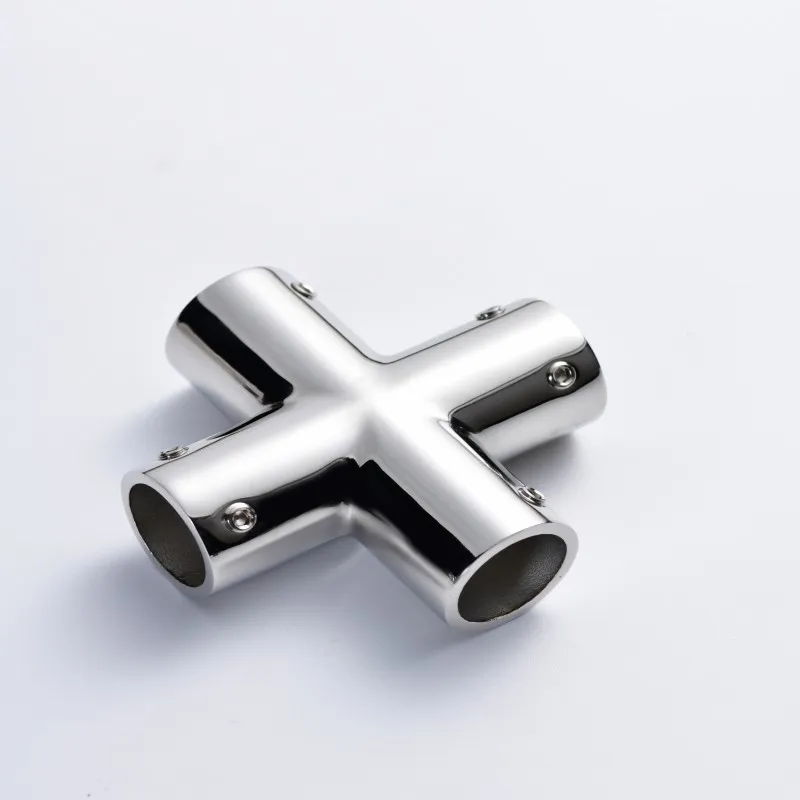

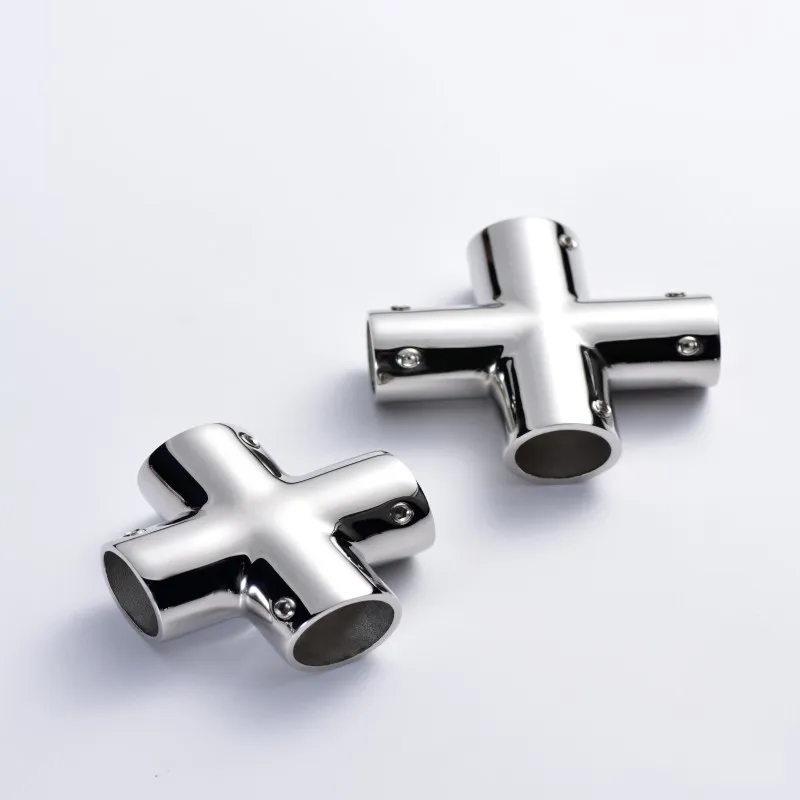

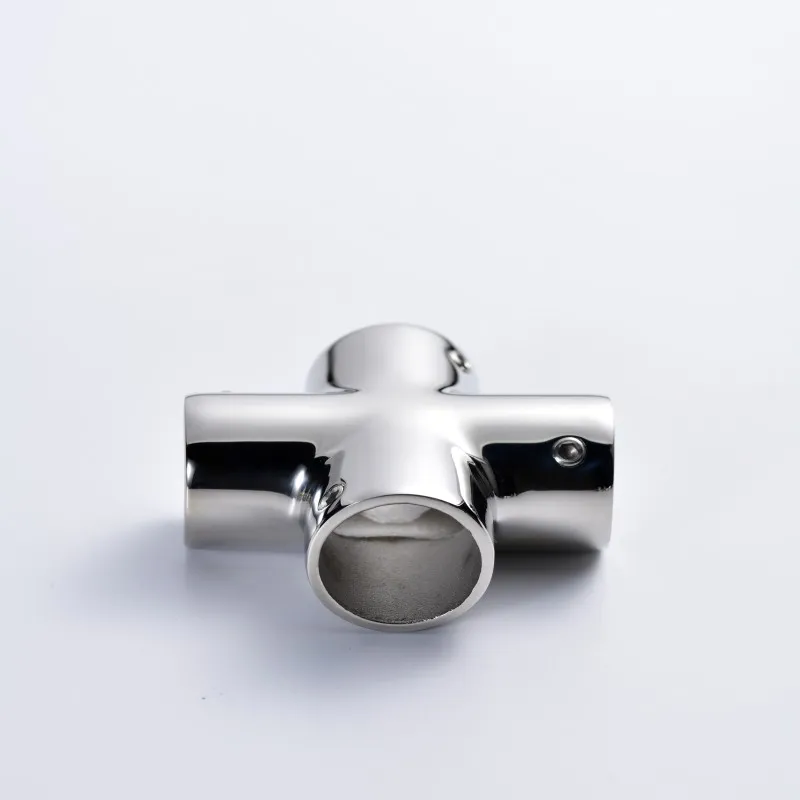

90-Degree 4-Way Cross Rail Connector
Flush-cross 90-degree 4-way 316L connector. Flat intersection profile perfectly aligns vertical and horizontal rails in a single plane.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Planar Quad-Node Hub
Interlocking four-way casting connects complex flat grid networks for solar panels or rigid canopy structures.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

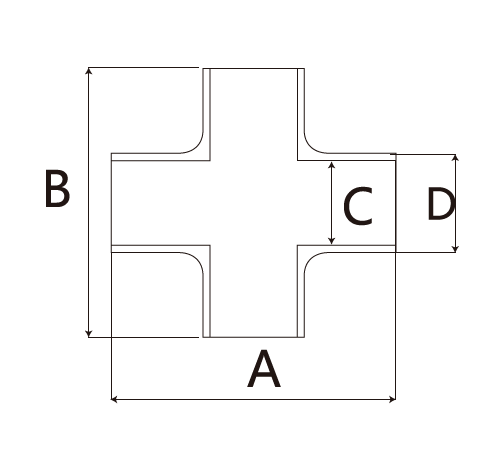

Dimensional Specifications
| RM08-012 | 90° 22mm 4-Way Cross Fitting | 72 | 72 | 22.7 | 28.5 |
| RM08-012 | 90° 25mm 4-Way Cross Fitting | 72 | 72 | 25.8 | 32.5 |
| RM08-012 | 90° 30mm 4-Way Cross Fitting | 75 | 75 | 30.5 | 36.5 |
| RM08-012 | 90° 32mm 4-Way Cross Fitting | 81 | 81 | 32.6 | 39 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
90-Degree 4-Way Cross Rail Connector
