SKU: RM08-002

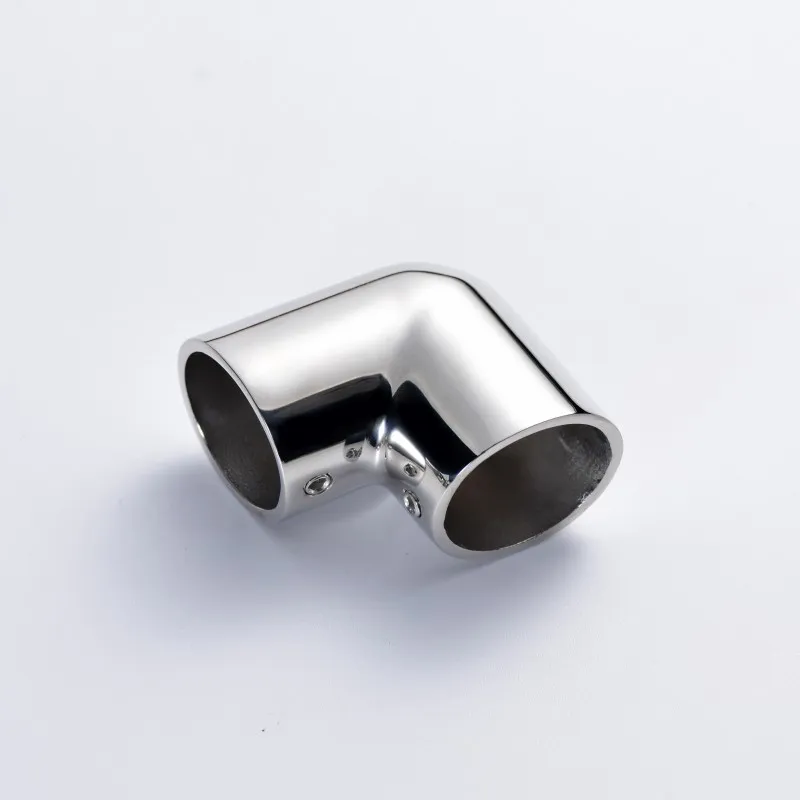

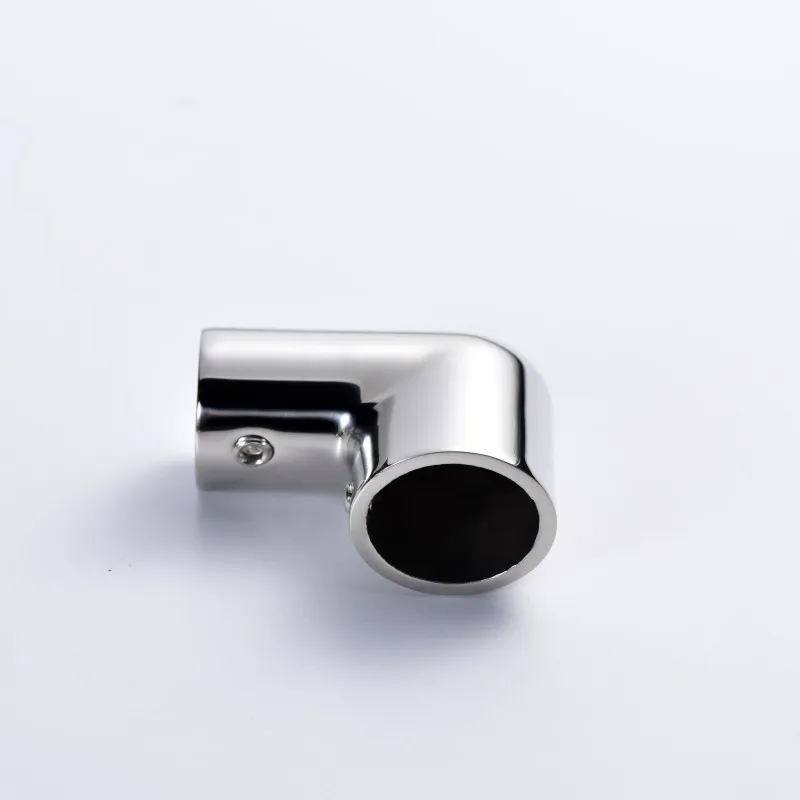

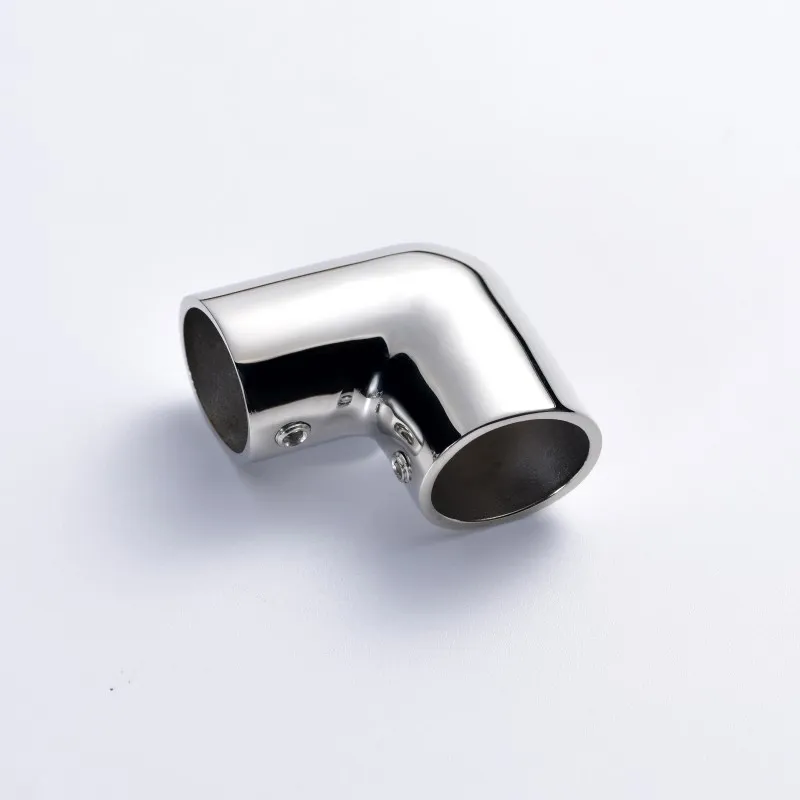

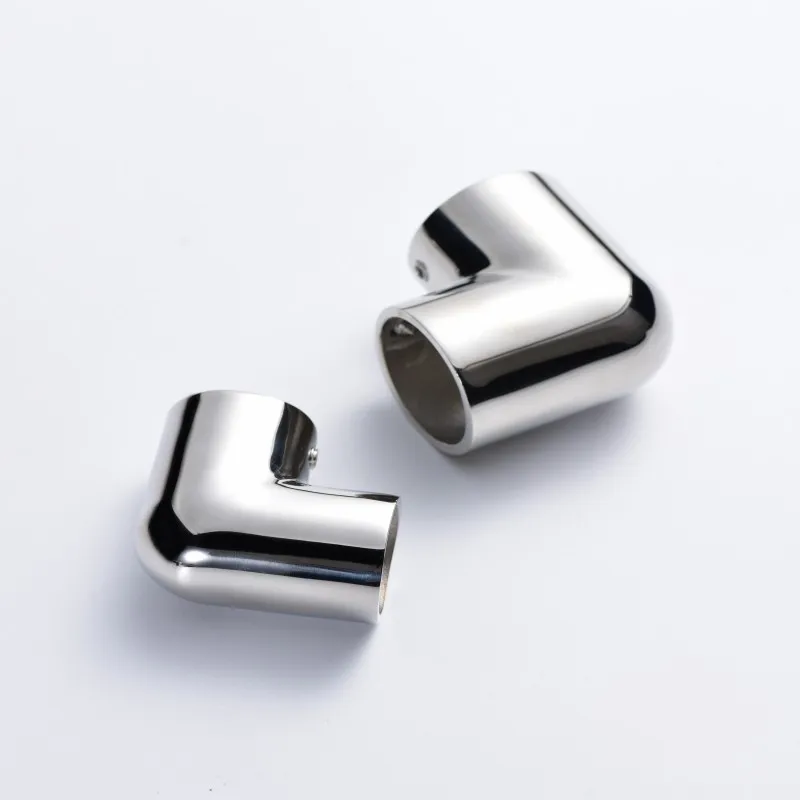

90-Degree Rail Corner Elbow
Right-angle 316L rail corner elbow. Smooth internal radius maintains structural integrity at critical sharp-turn rail junctions.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Fluid 90?? Vector Transition
CNC-machined 90-degree corner prevents stress-fractures at the most vulnerable point of any deck railing system.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

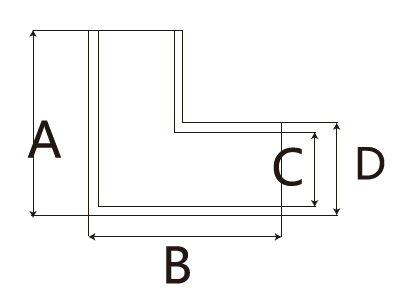

Dimensional Specifications
| RM08-002 | 22mm 90° Elbow Fitting | 50 | 50 | 22.6 | 22.6 |
| RM08-002 | 25mm 90° Elbow Fitting | 51 | 51 | 25.6 | 31 |
| RM08-002 | 30mm 90° Elbow Fitting | 54 | 54 | 30.6 | 36.5 |
| RM08-002 | 32mm 90° Elbow Fitting | 58 | 58 | 32.5 | 39.5 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
