MACRO VIEW
SKU: RM08-011

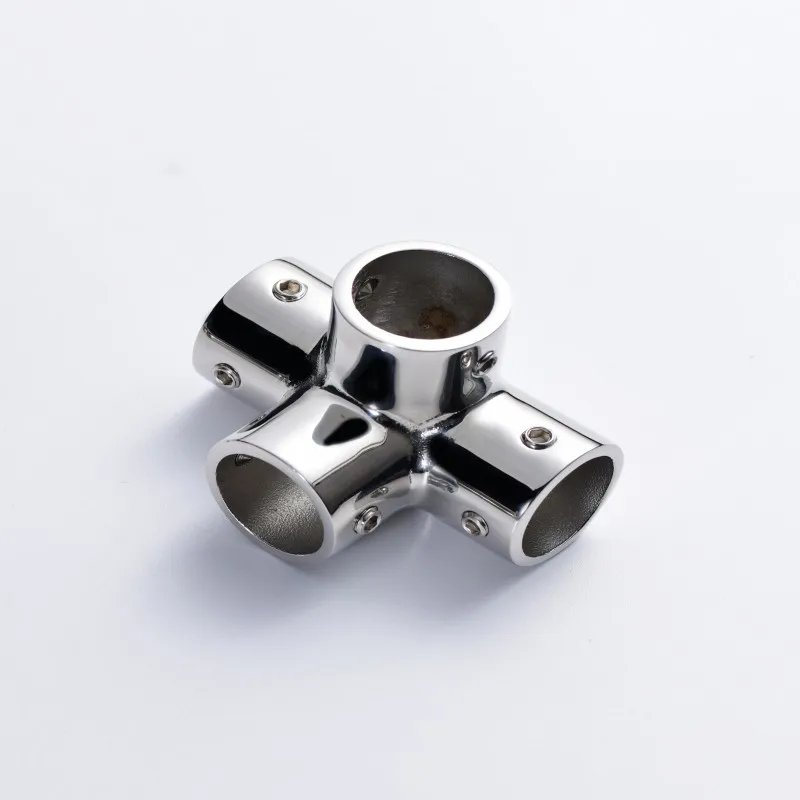

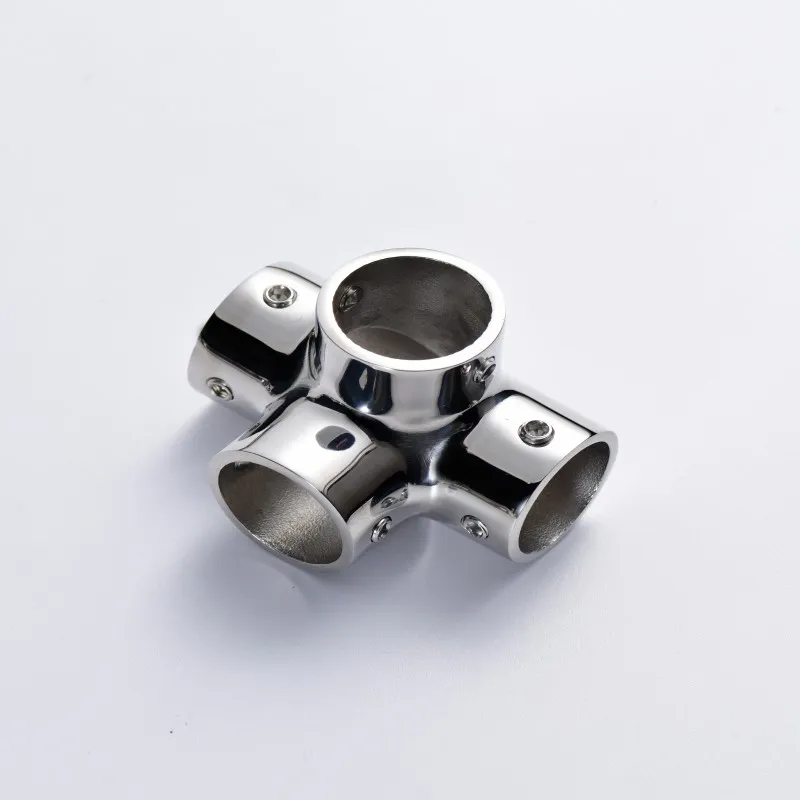

90° 4-Way Tee Rail Connector
Center-cross 90-degree 4-way 316L tee. Centralized intersecting cross-bore engineered to support and stabilize massive multi-axis rail grids.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Quad-Axis Load Distribution
Centralized intersecting hub distributes stress across four vector points, ensuring rail stability under severe impact.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

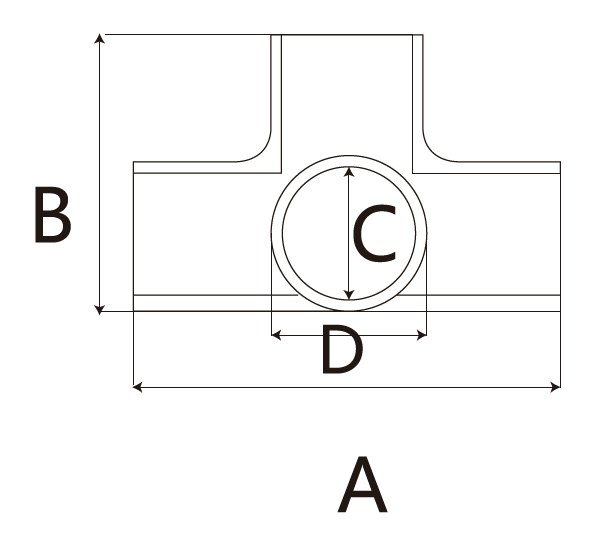

Dimensional Specifications
| RM08-011 | 90° 22mm Base Cross Fitting | 69 | 50 | 22.8 | 29.5 |
| RM08-011 | 90° 25mm Base Cross Fitting | 69 | 50 | 25.8 | 32 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
90° 4-Way Tee Rail Connector
