MACRO VIEW
SKU: RM08-008

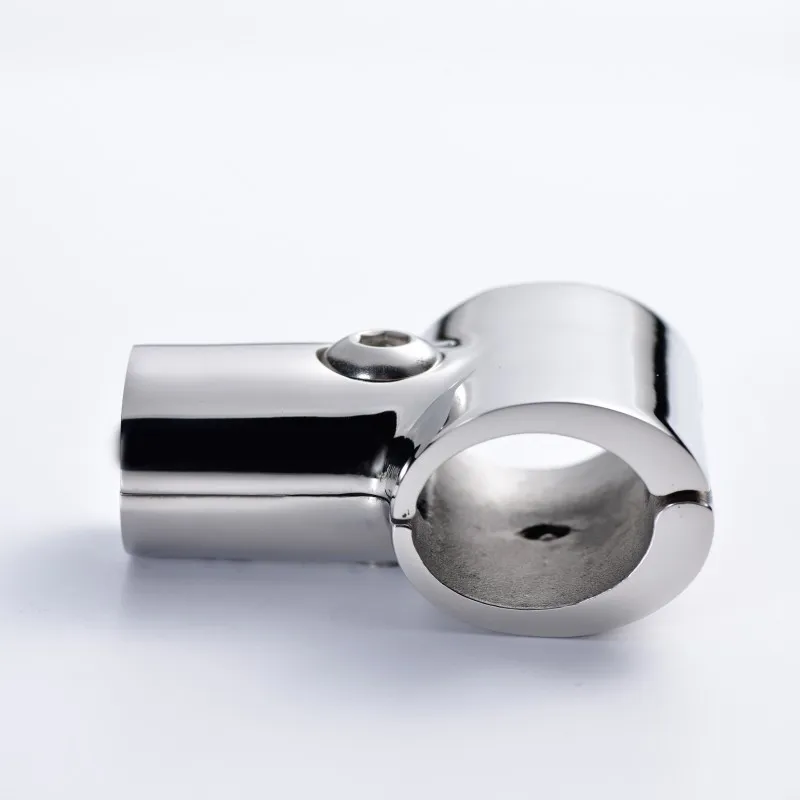

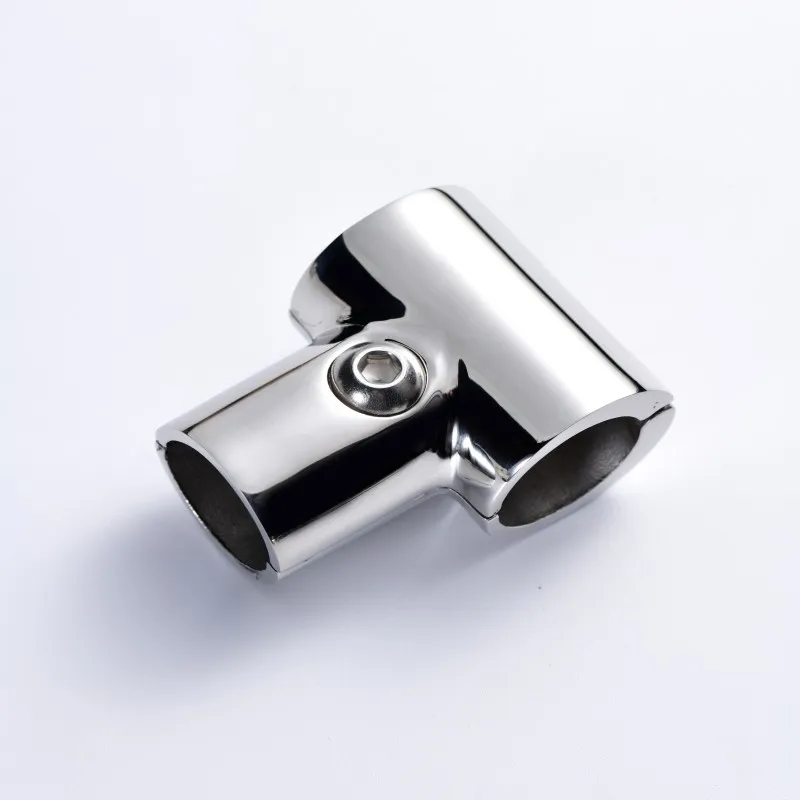

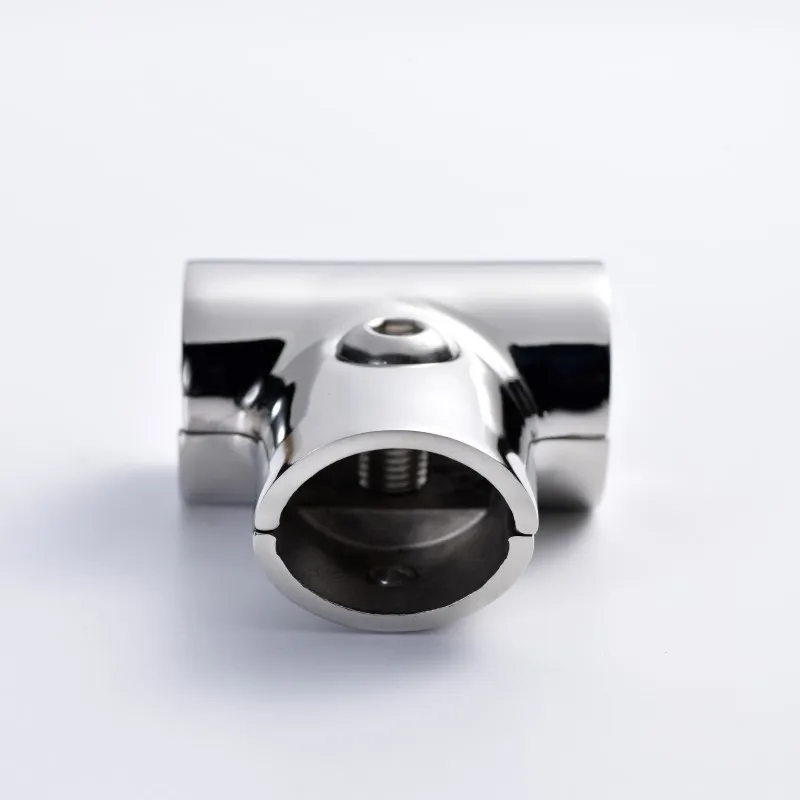

90° Tee Rail Connector (Split)
Split-body 90-degree 316L tee connector. Clamp-on architecture allows instant addition of perpendicular rails without dismantling the master frame.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Clamp-On Retrofit Hub

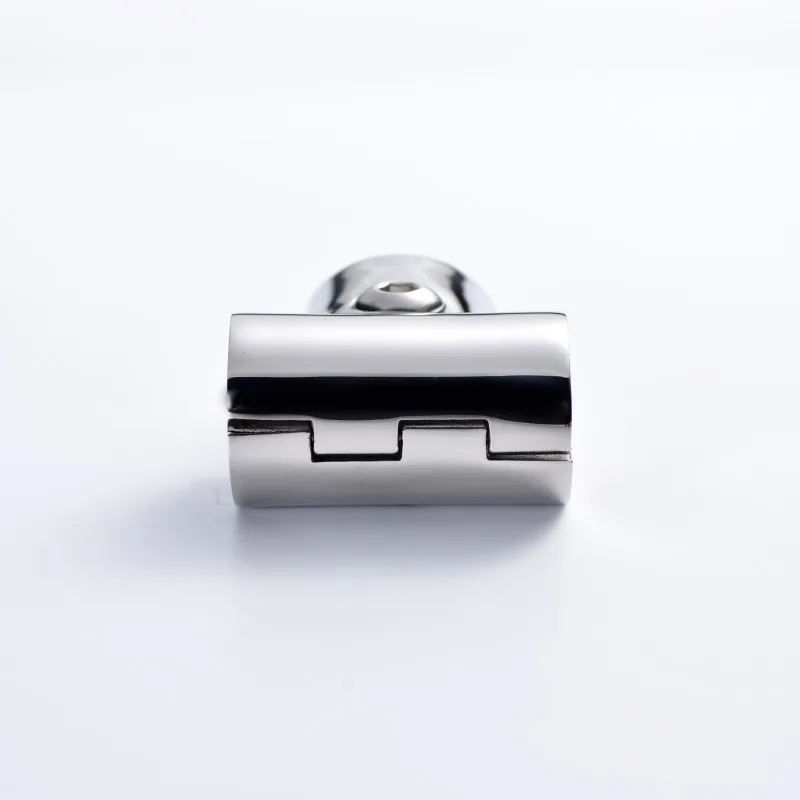

Hinged two-piece casting wraps securely around an existing continuous tube, instantly creating a 90-degree branch.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

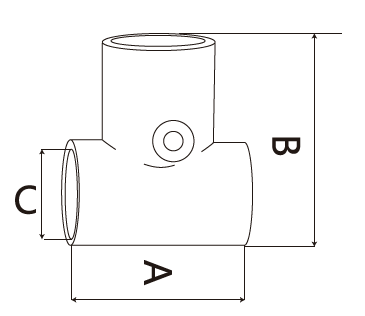

Dimensional Specifications
| RM08-008 | 90° 22mm Clamp-On Tee Fitting | 52 | 52 | 22 |
| RM08-008 | 90° 25mm Clamp-On Tee Fitting | 55 | 55 | 25 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
