MACRO VIEW
SKU: RM07-003

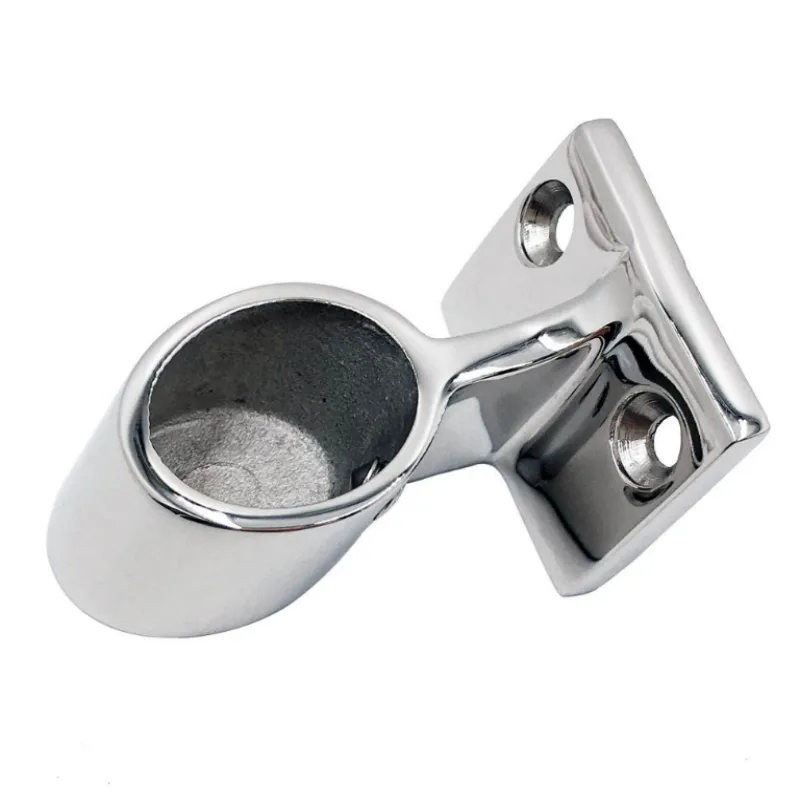

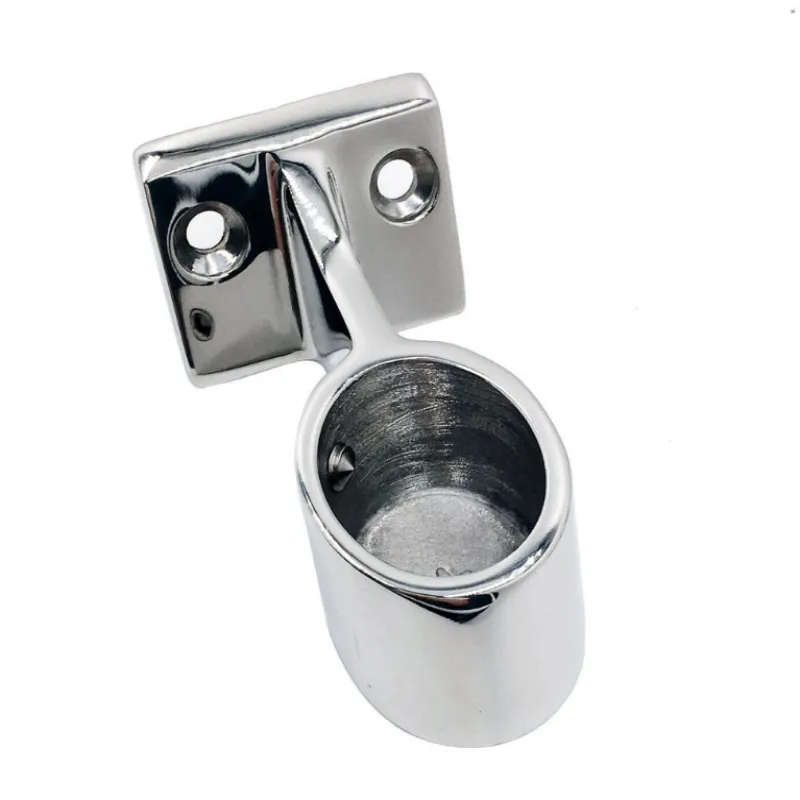

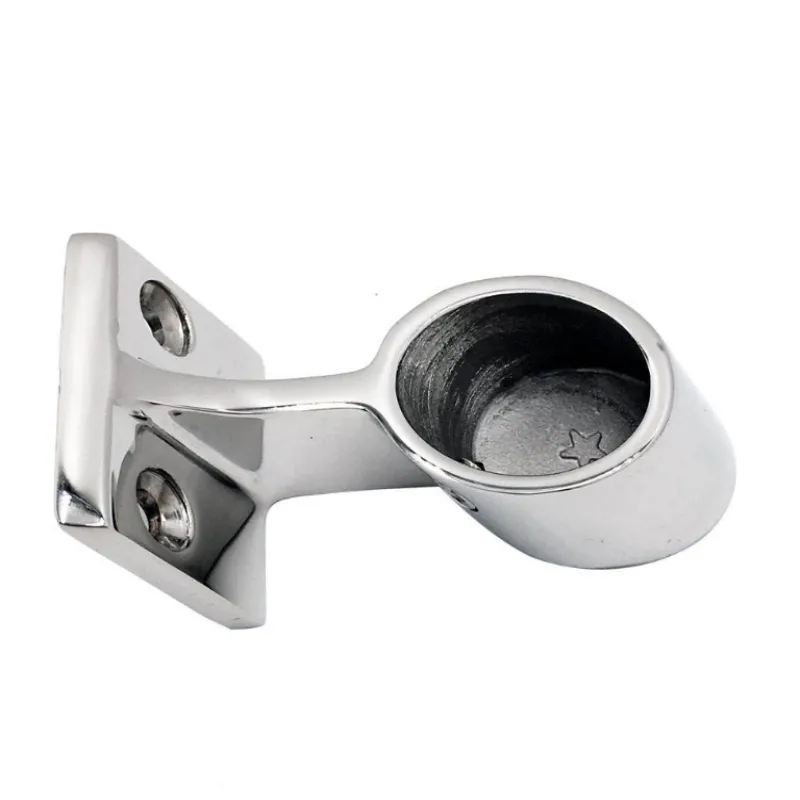

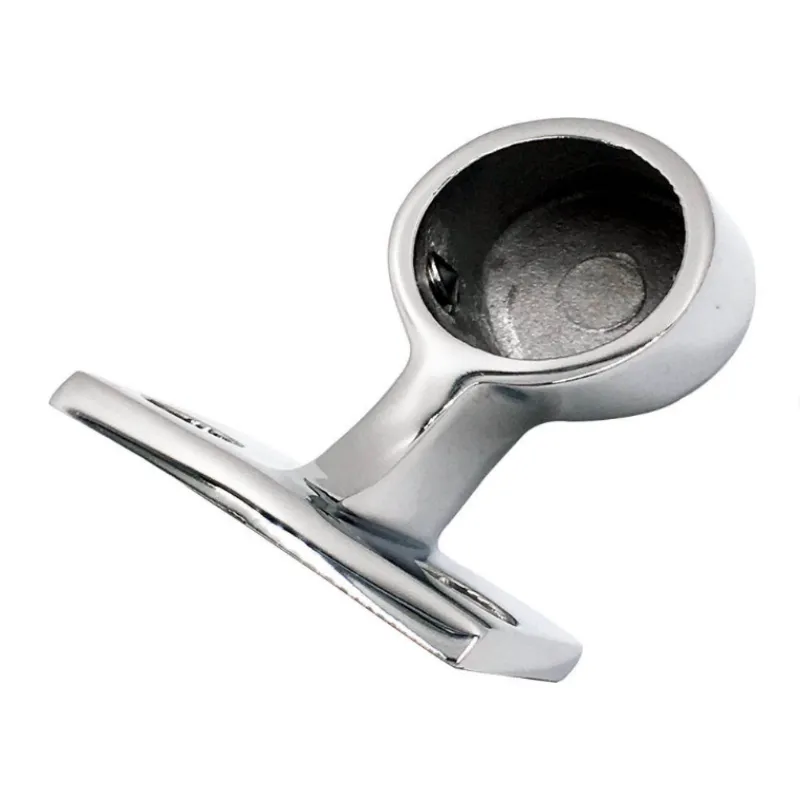

End Rail Stanchion
Terminal-end 316L rail stanchion. Dead-end machined bore cleanly terminates the handrail, sealing the tube from corrosive saltwater ingress.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Terminal Sealing Bore
Blind-hole casting creates a waterproof termination point, preventing internal tube corrosion and rust weeping.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.
Dimensional Specifications
| RM07-003 | 22mm Bow Support Bracket | 22.6 | 45 | 41.5 | 28 | 27 |
| RM07-003 | 25mm Bow Support Bracket | 25.8 | 45 | 41.5 | 28 | 27 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
End Rail Stanchion
