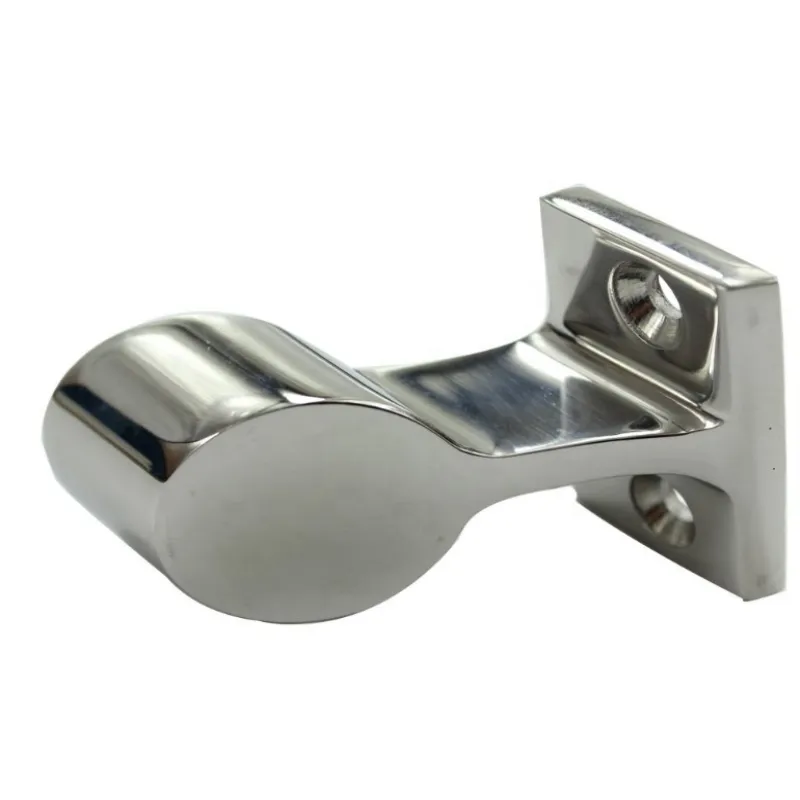

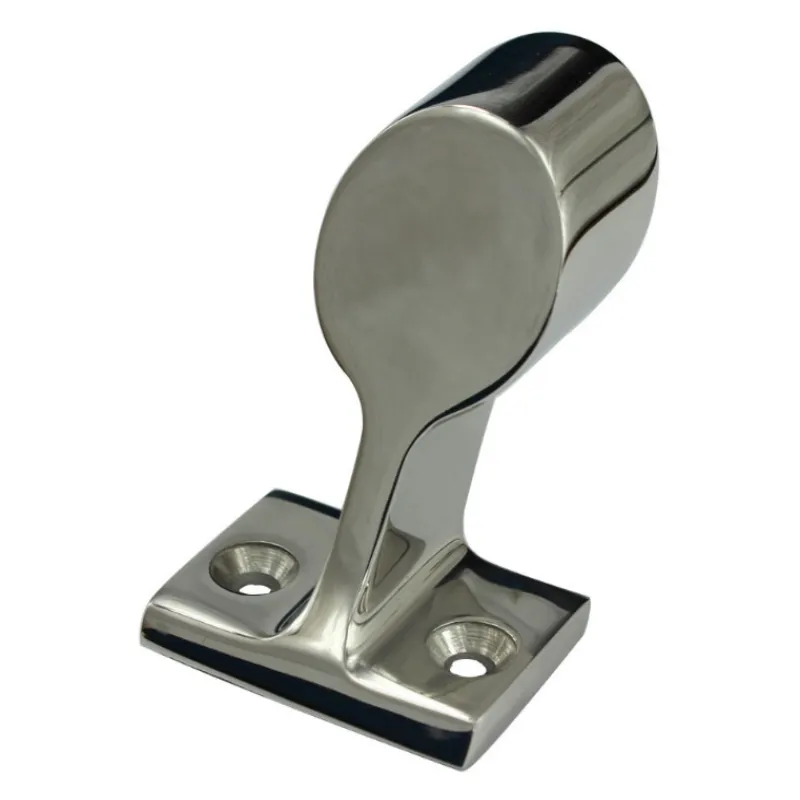

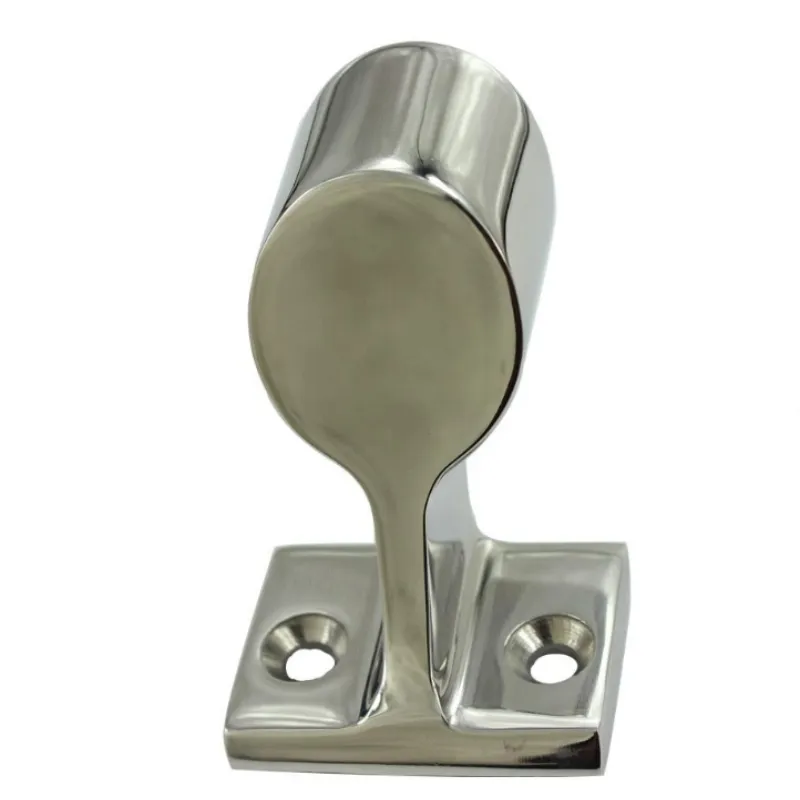

Forward Rail Stanchion
Angled-forward 316L rail stanchion. Precision-cast pitch geometry perfectly matches bow rail slopes, eliminating stress on the tubing.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Pitch-Matched Bow Geometry
Engineered angle naturally accepts forward-sloping rails, preventing tube crimping and ensuring a smooth sweep.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

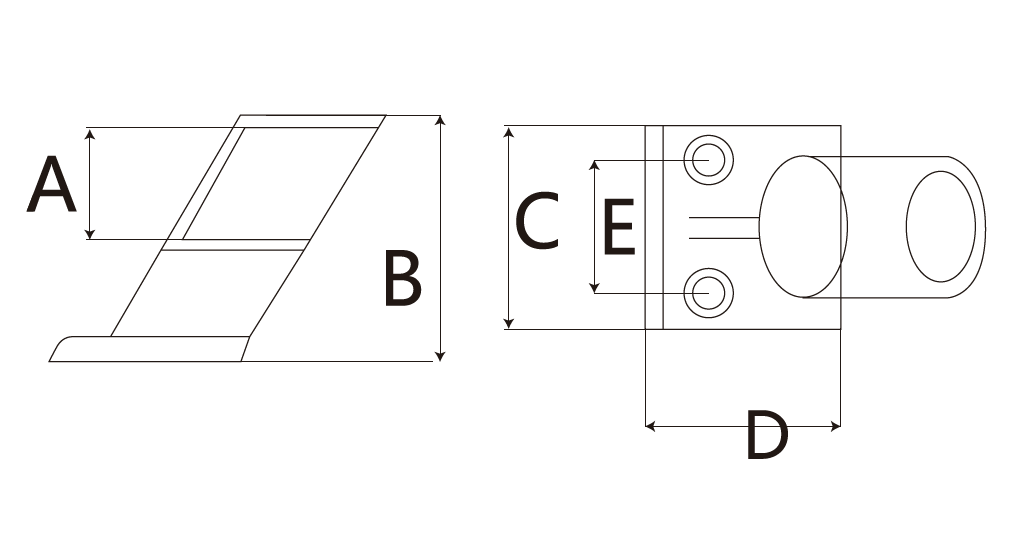

Dimensional Specifications
| RM07-001 | 22mm Aft Support Bracket | 22.6 | 45 | 41.5 | 28 | 27 |
| RM07-001 | 25mm Aft Support Bracket | 25.8 | 45 | 41.5 | 28 | 27 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
