SKU: RM07-009

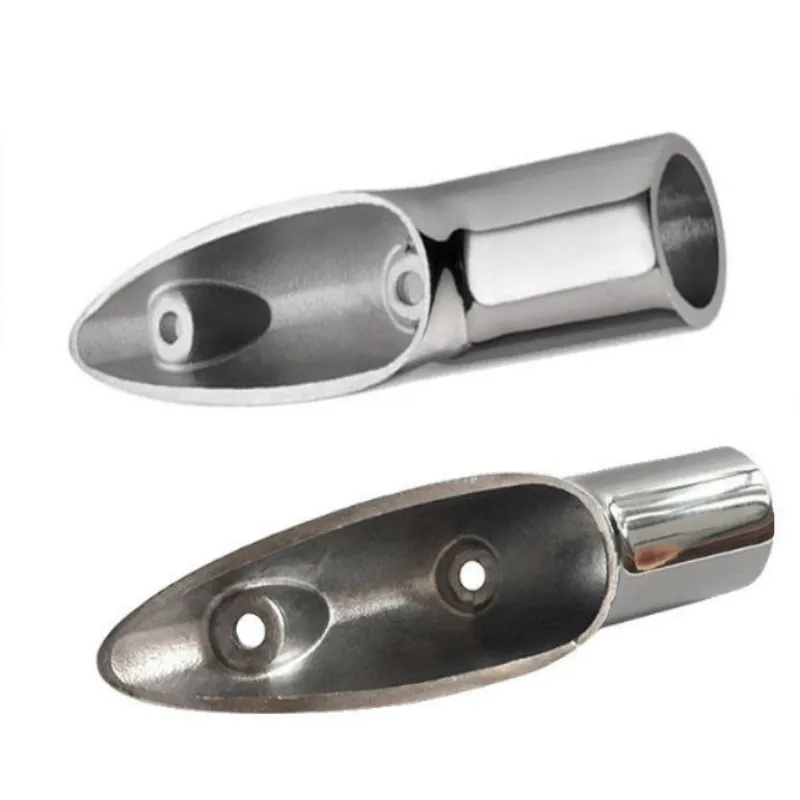

Internal Tube End Insert Fitting
Invisible plug-fit 316L tube insert base. Machined internal body slides directly into the rail bottom, hiding the mounting joint completely.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Concealed Base Integration
Internal seating architecture creates a completely flush exterior tube surface straight down to the deck.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

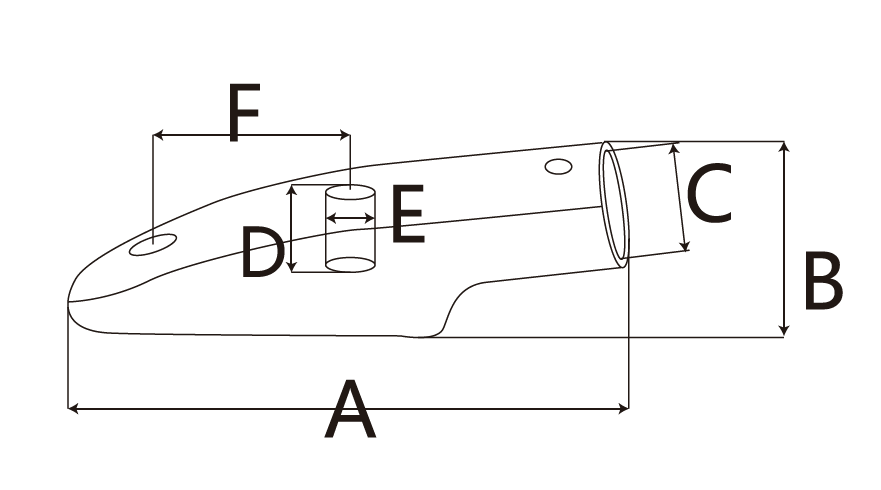

Dimensional Specifications
| RM07-009 | 22mm Small Horn Base | 120 | 39 | 22.6 | 8.8 | 5 | 42 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
