MACRO VIEW
SKU: RM07-008

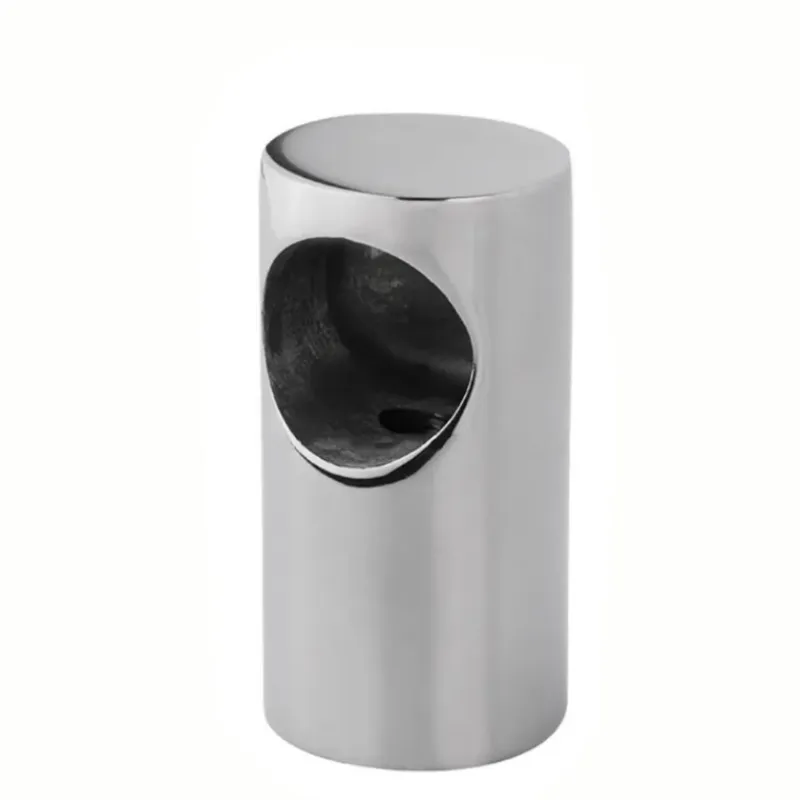

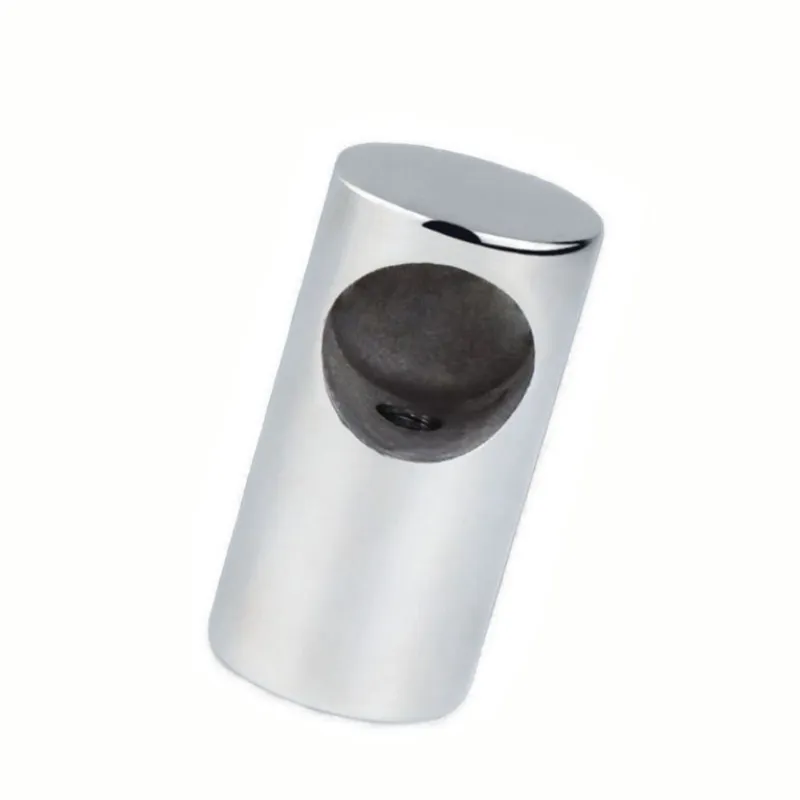

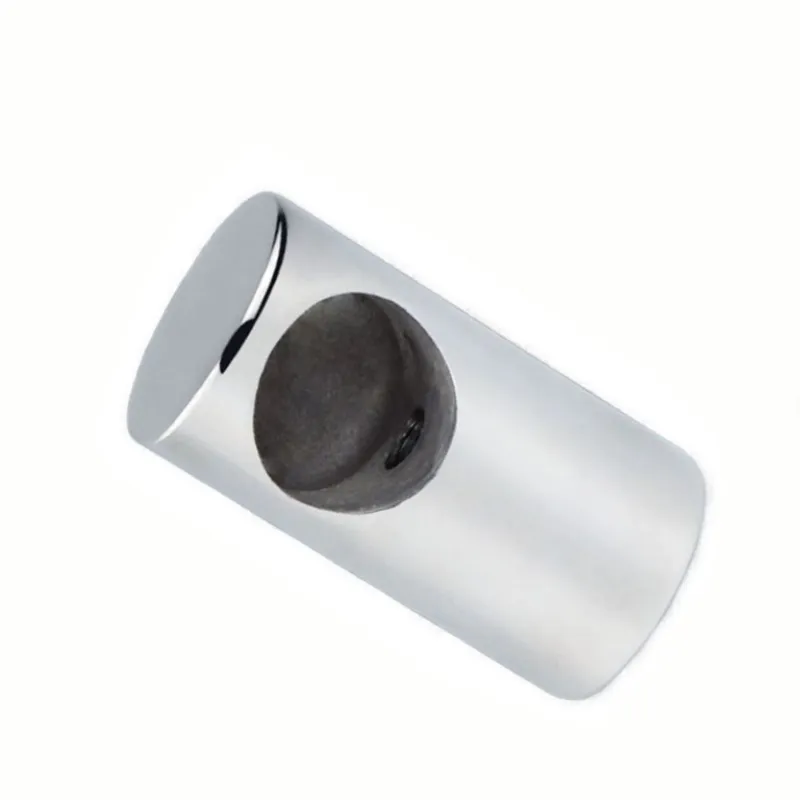

Blind Hole End Rail Stanchion
Sealed terminal-end 316L rail stanchion. Prevents saltwater pooling inside handrails by completely capping the end of the tube run.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages

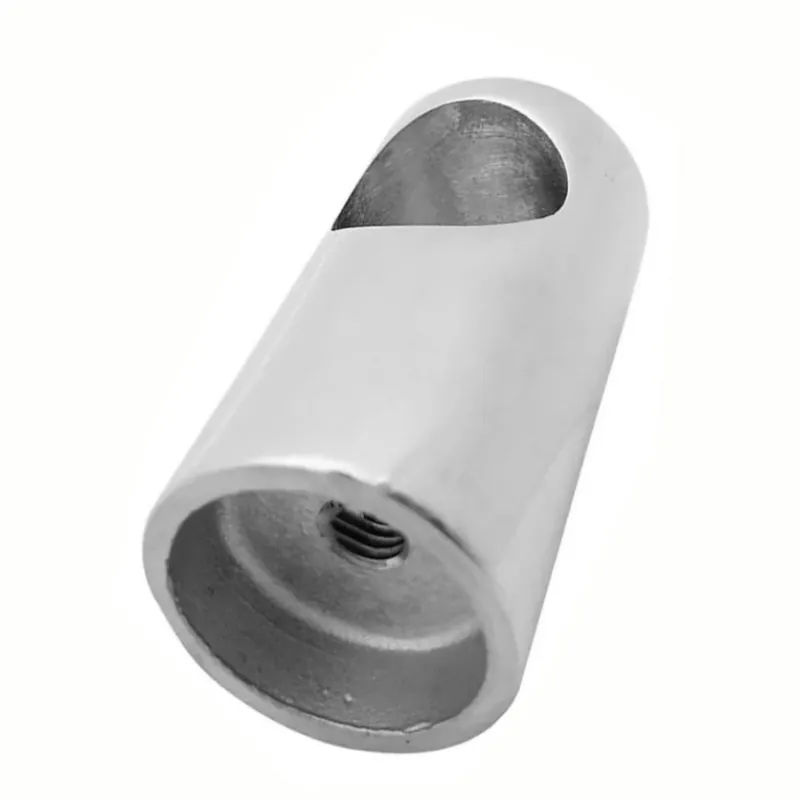

Terminal Sealing Bore
Blind-hole casting creates a waterproof termination point, preventing internal tube corrosion and rust weeping.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

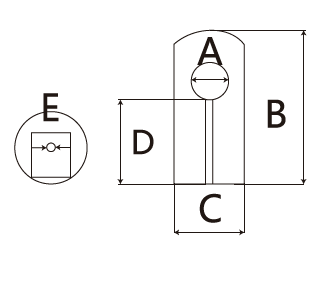

Dimensional Specifications
| RM07-008 | 22mm Blind-Hole Bracket | 22.6 | 59 | 30.5 | 31 | M8 |
| RM07-008 | 25mm Blind-Hole Bracket | 25.6 | 64 | 35 | 32.5 | M8 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
