MACRO VIEW
SKU: RM05-011

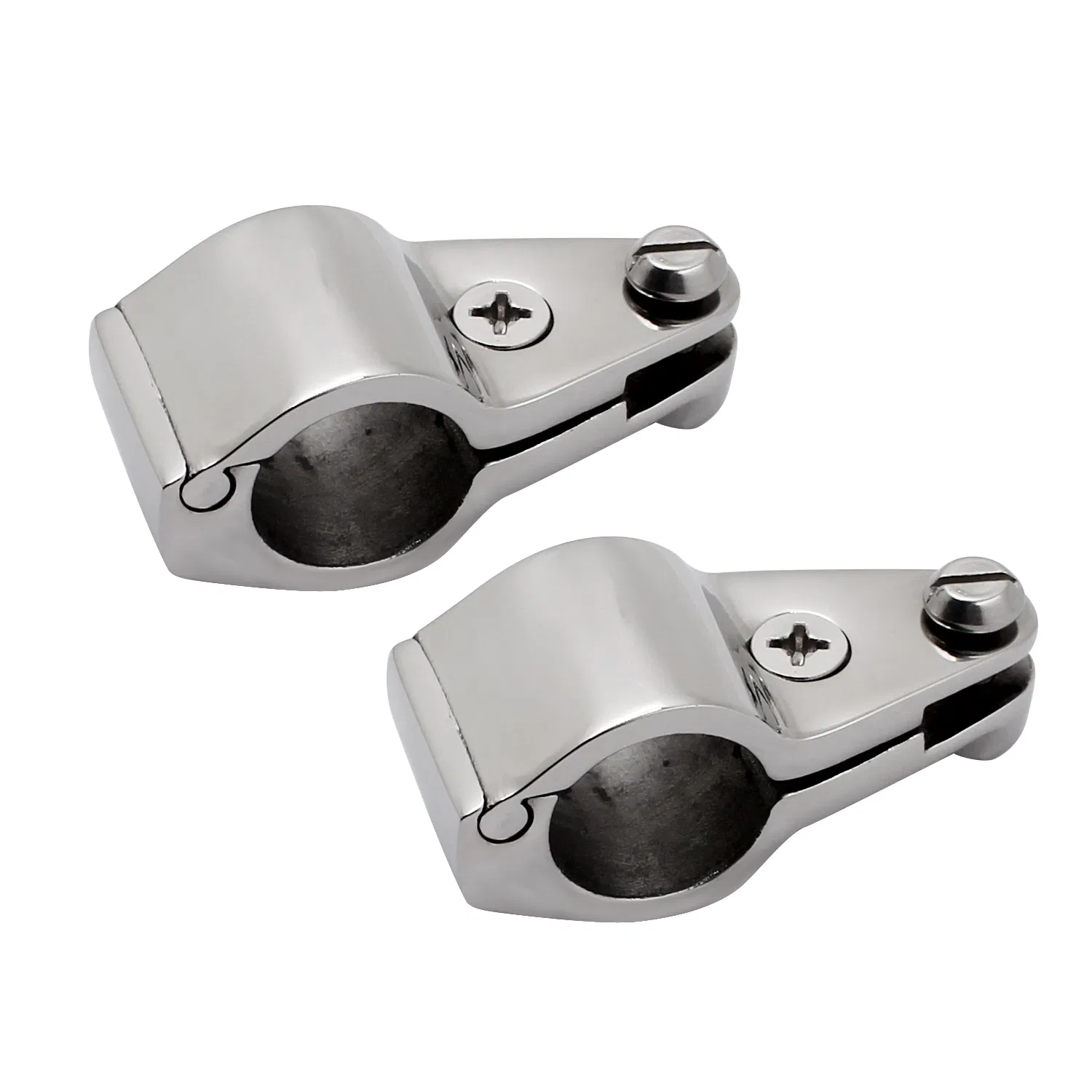

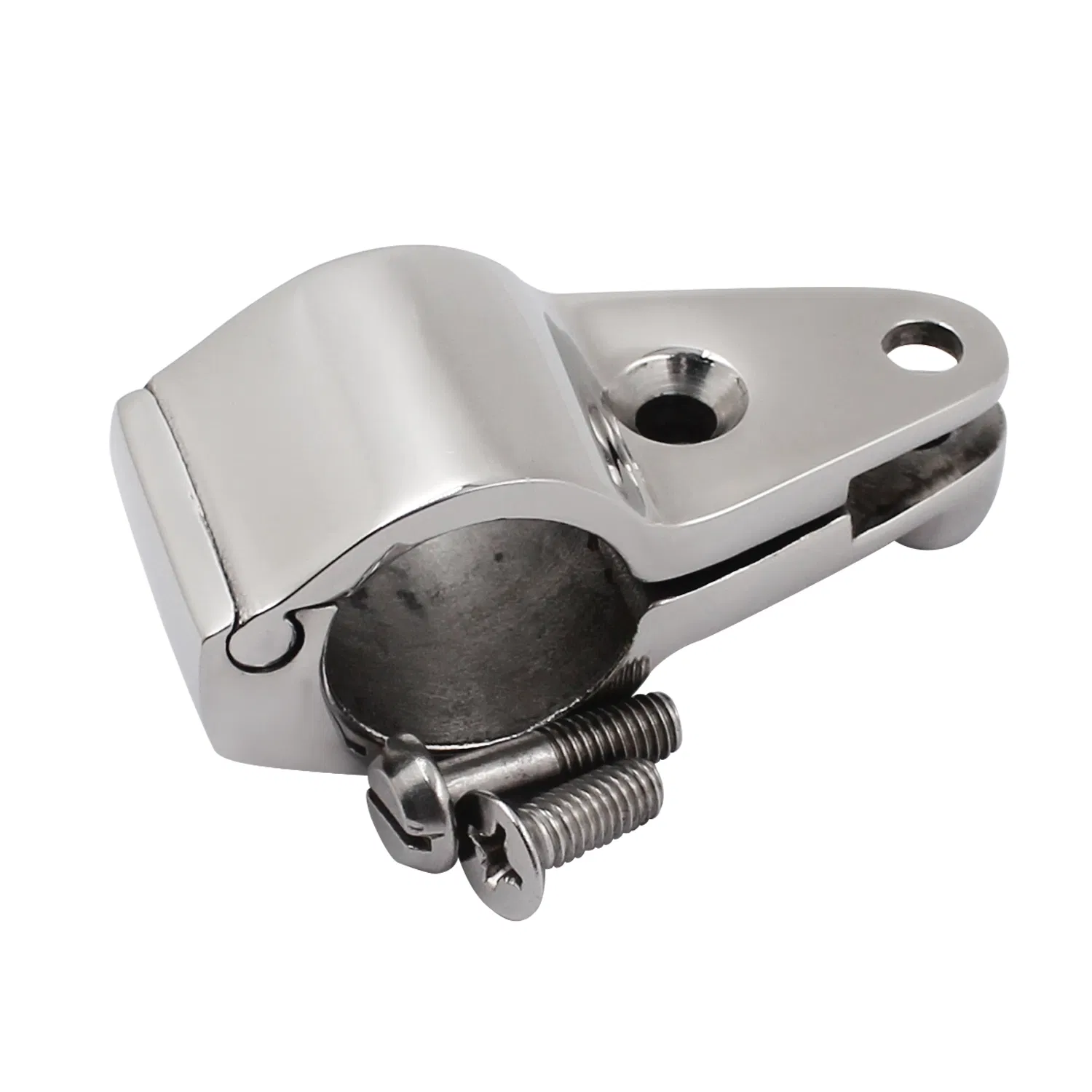

Split Rail Bimini Jaw Slide
Hinged clamp-on 316L jaw slide. Split-body architecture engineered for rapid retrofit installation on existing rails without disassembly.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Clamp-On Retrofit Architecture

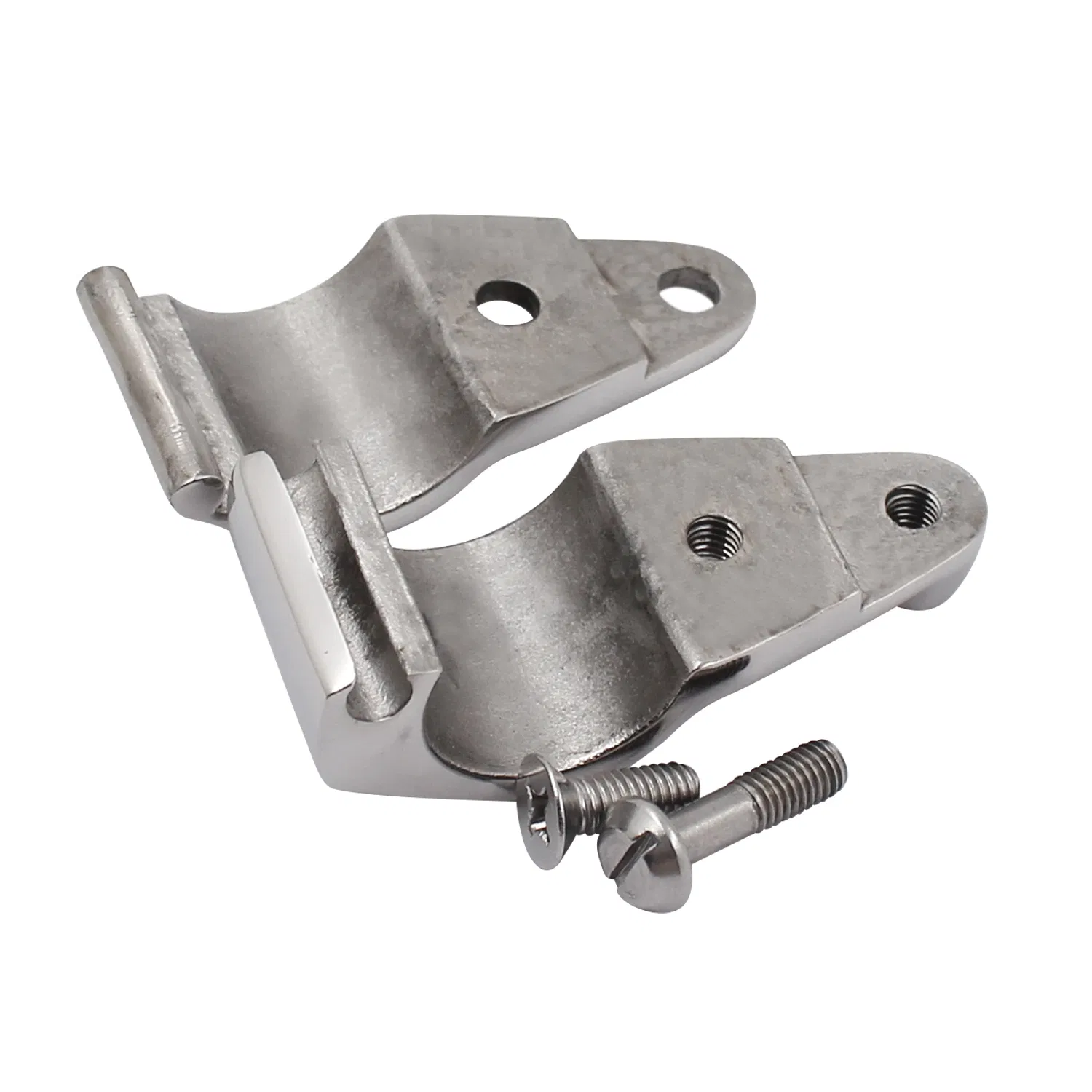

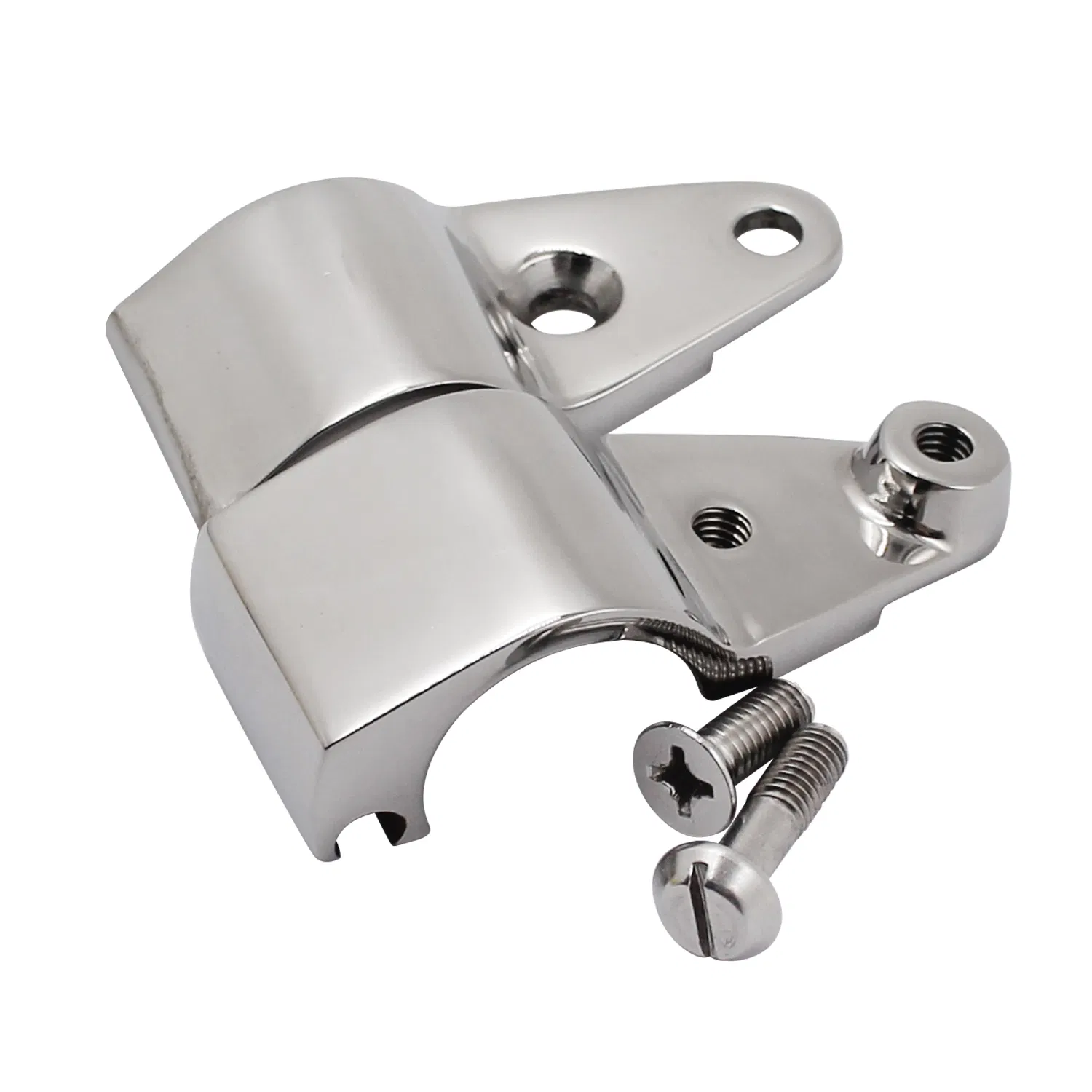

Two-piece slotted design allows for immediate mounting on fully assembled rails, saving hours of frame teardown.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

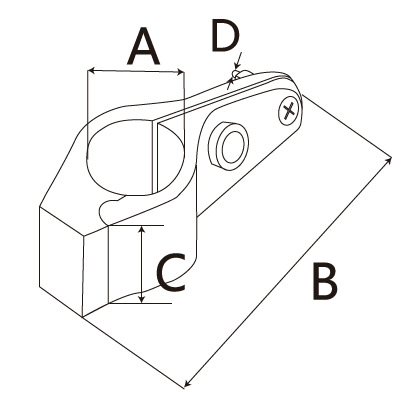

Dimensional Specifications
| RM05-011 | 22mm Slotted Tube Clip | 22 | 72 | 32 | 6 | |
| RM05-011 | 25mm Slotted Tube Clip | 25 | 75 | 31 | 6 | |
| RM05-011 | 30mm Slotted Tube Clip | 30 | 6 | |||
| RM05-011 | 32mm Slotted Tube Clip | 31.5 | 6 | |||
| RM05-011 | 22mm Flat Head Tube Clip | 22 | 6 | |||
| RM05-011 | 25mm Flat Head Tube Clip | 25 | 6 | |||
| RM05-011 | 30mm Flat Head Tube Clip | 30 | 6 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
