MACRO VIEW
SKU: RM05-009

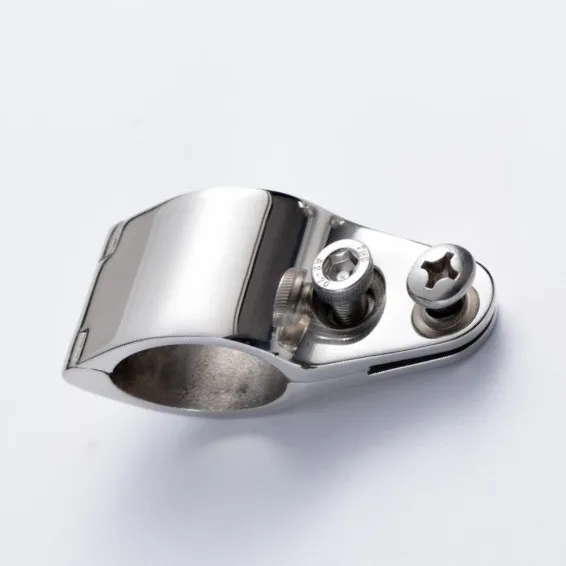

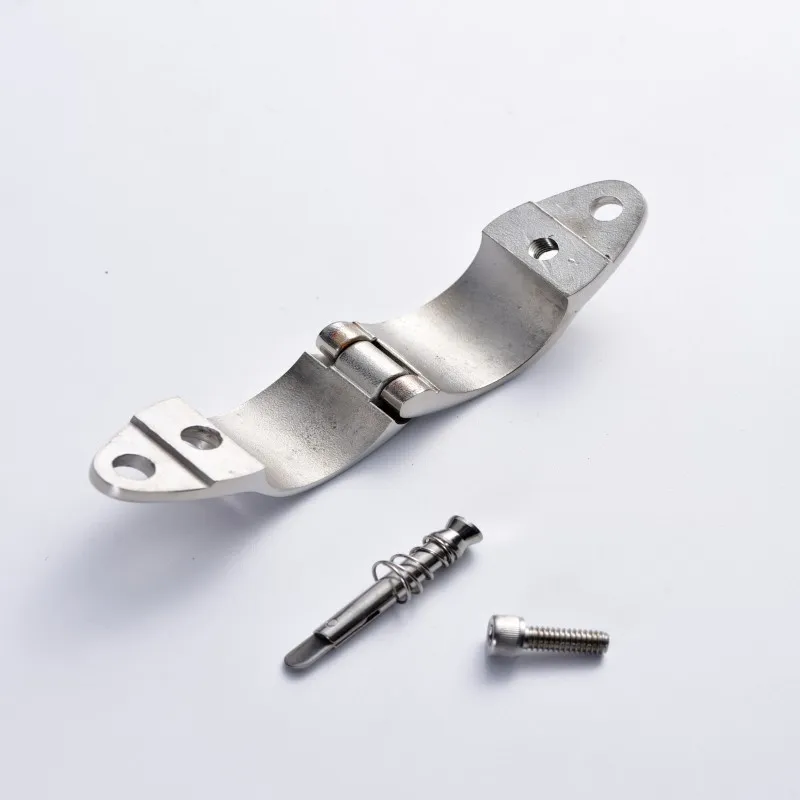

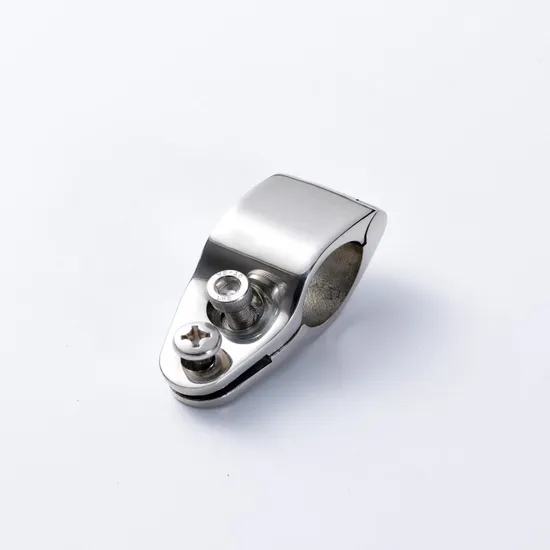

Marine Grade Bimini Jaw Slide
Classic profile 316L bimini jaw slide. Streamlined casting minimizes profile bulk while retaining exceptional joint articulation strength.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Streamlined Hinge Knuckle
Low-profile casting reduces canvas wear points while providing a solid anchor for secondary support bows.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

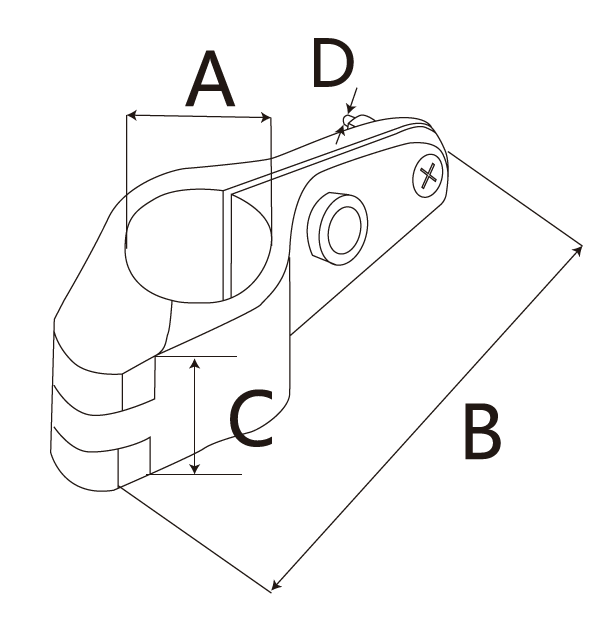

Dimensional Specifications
| RM05-009 | 22mm Tube Clip | 22 | 64 | 27 | 6 |
| RM05-009 | 25mm Tube Clip | 25 | 69 | 28 | 6 |
| RM05-009 | 30mm Tube Clip | 30 | 73 | 27 | 6 |
| RM05-009 | 32mm Tube Clip | 31.5 | 73 | 27 | 6 |
| RM05-009 | 38mm Tube Clip | 38 | 85 | 28.5 | 6 |
| RM05-009 | 50mm Tube Clip | 50 | 103 | 32 | 6 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
