MACRO VIEW
SKU: RM05-10

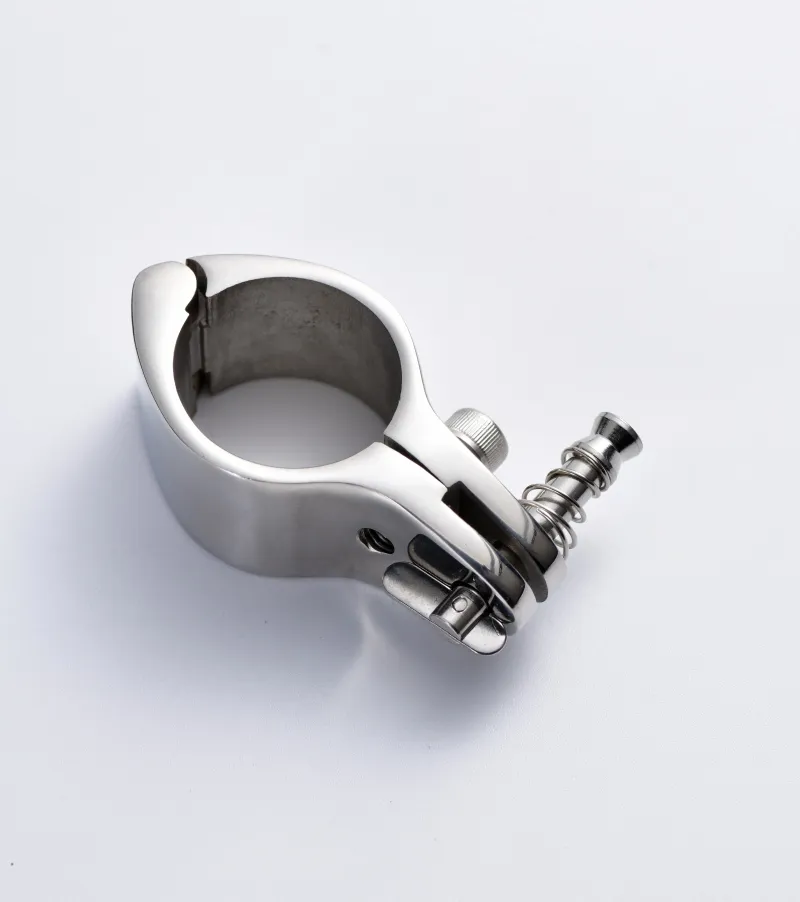

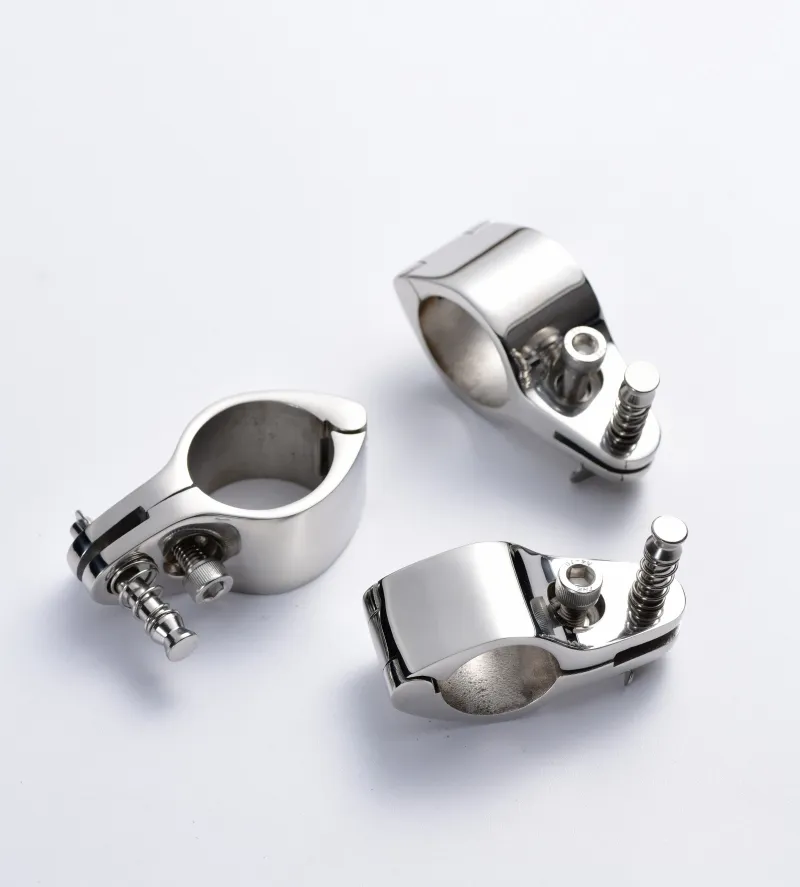

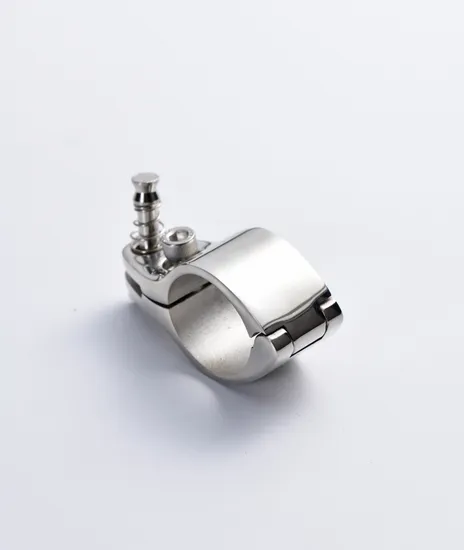

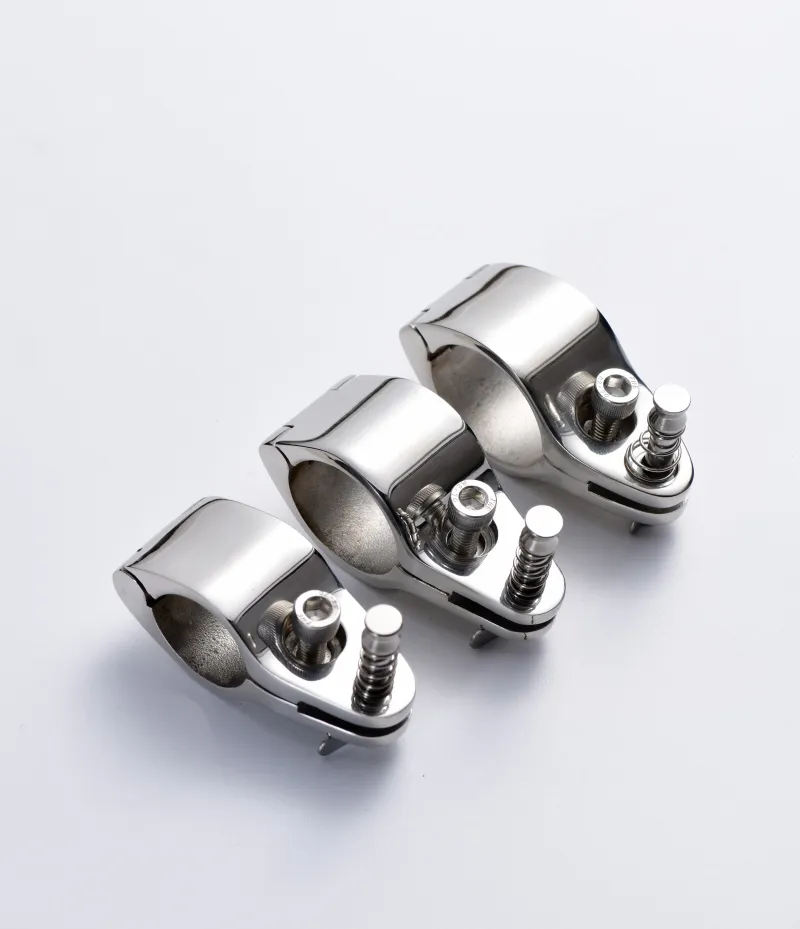

Jaw Slide with Quick Release Pin
Pin-release 316L jaw slide. CNC-aligned through-holes allow rapid pin insertion and removal without binding under frame tension.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
High-Tolerance Pin Alignment
Precision-drilled articulation points guarantee smooth quick-release pin operation even when the frame is under torque.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

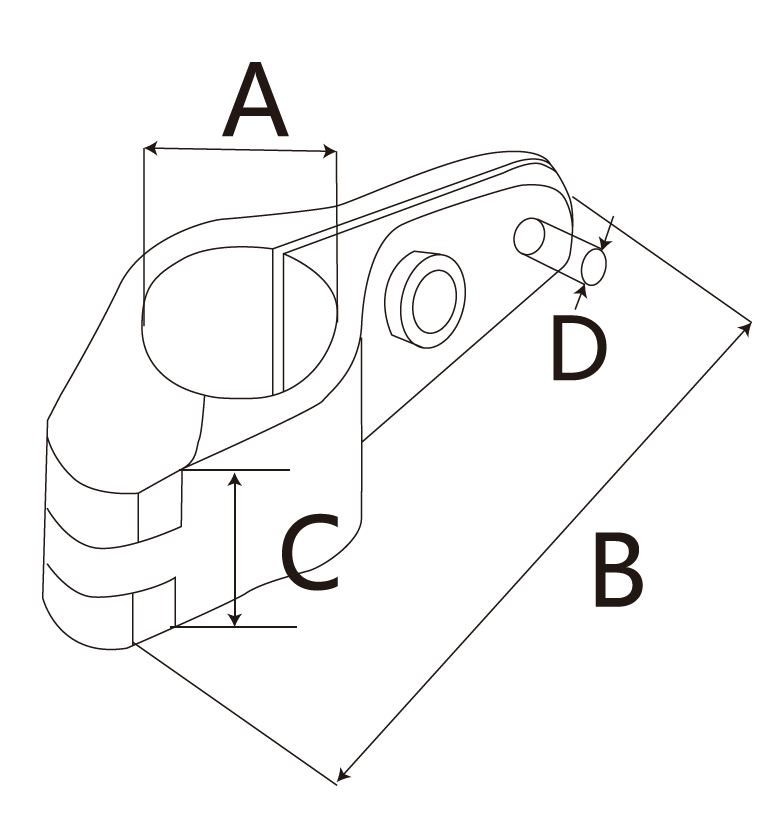

Dimensional Specifications
| RM05-10 | 22mm Tube Clip with Pin | 22 | 64 | 27 | 6 |
| RM05-10 | 25mm Tube Clip with Pin | 25 | 69 | 28 | 6 |
| RM05-10 | 30mm Tube Clip with Pin | 30 | 73 | 27 | 6 |
| RM05-10 | 32mm Tube Clip with Pin | 31.5 | 73 | 27 | 29 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
