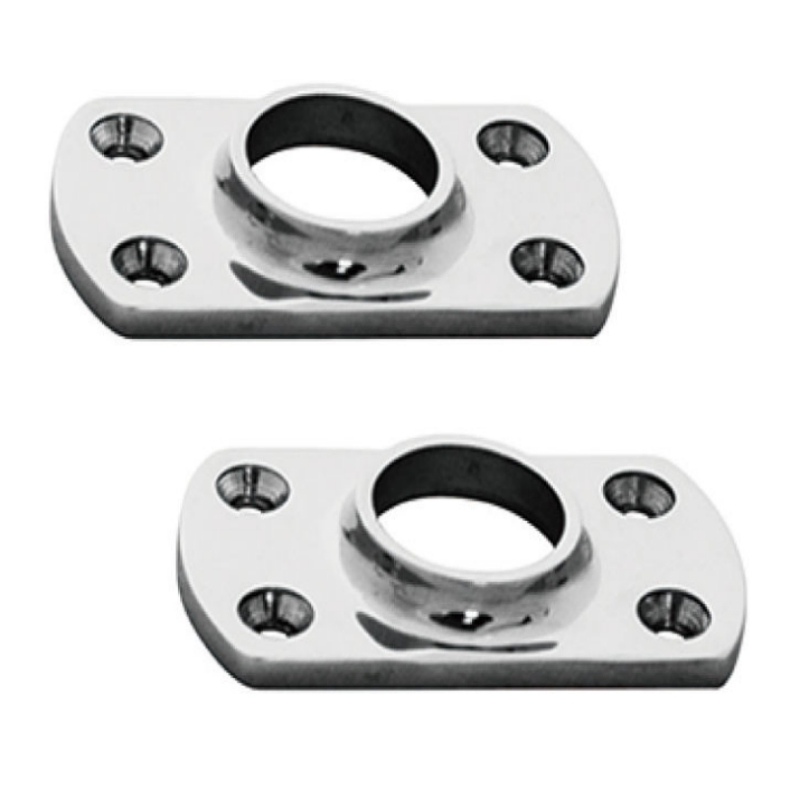

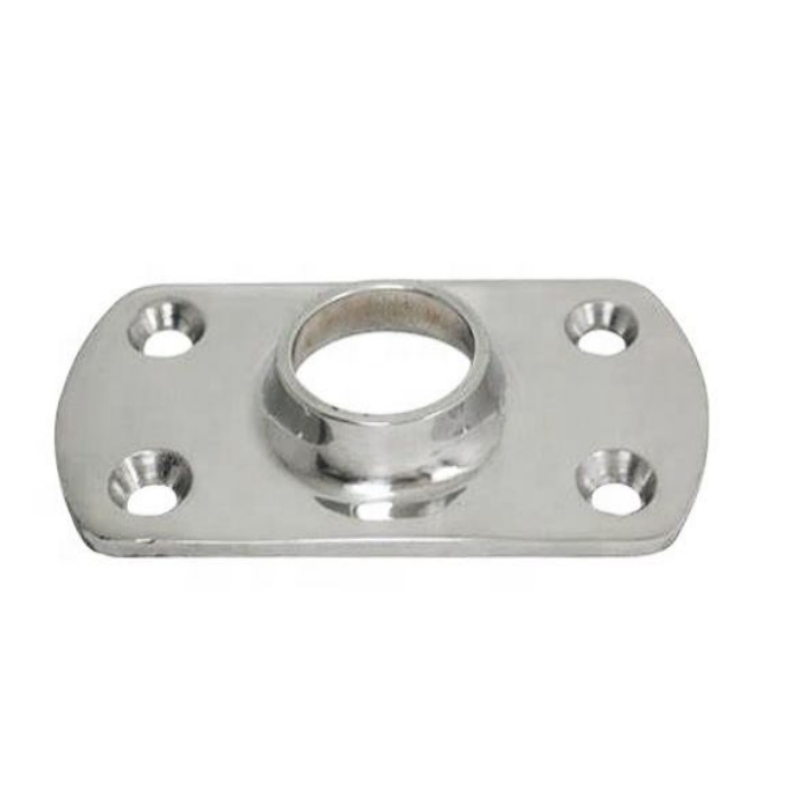

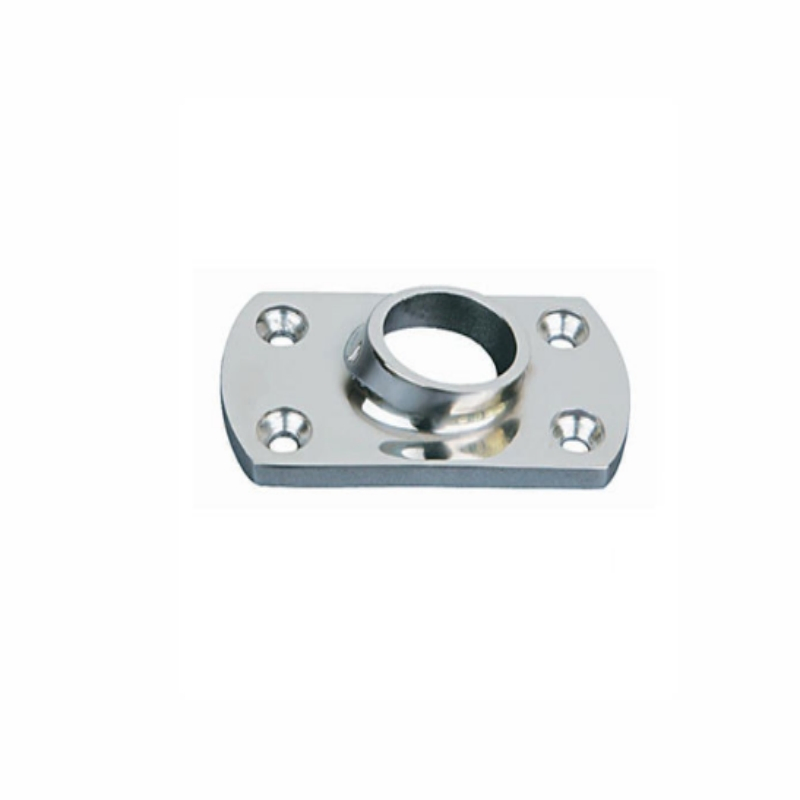

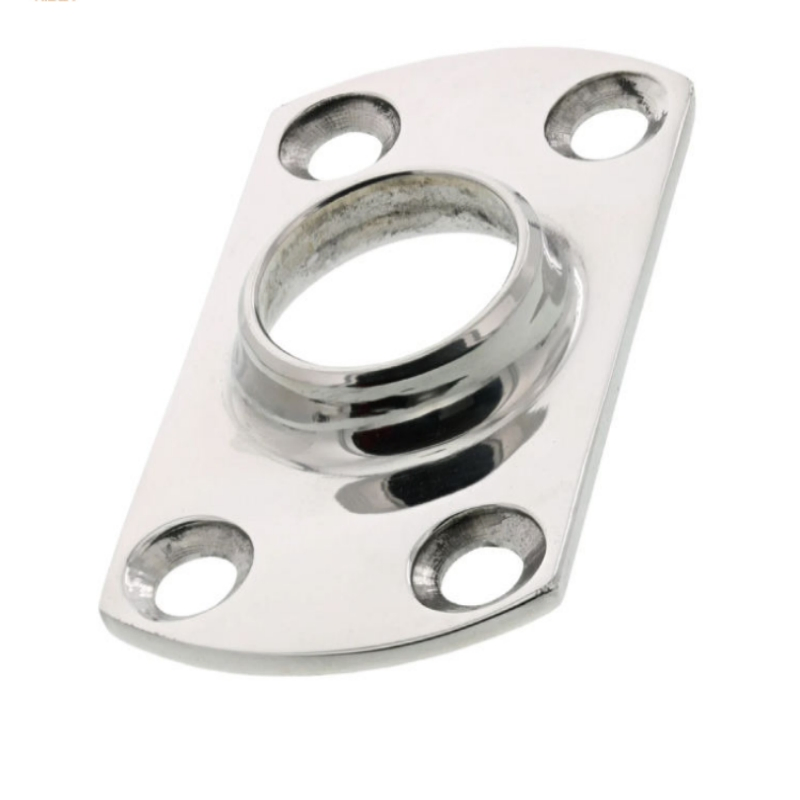

Weldable 316 SS Rectangular Handrail Base
Bare-metal weldable 316L rectangular base. Thick-walled square profile maximizes contact area for permanent integration into metal superstructures.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Machined Welding Chamfer
Pre-beveled rectangular edges allow for high-contact, deep-penetration TIG welding without time-consuming surface prep.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic.

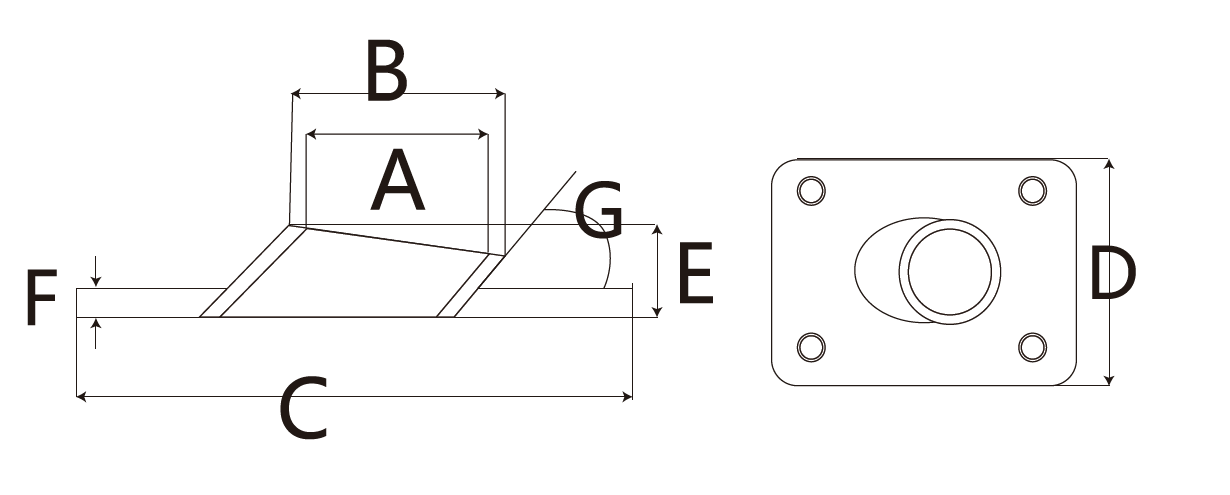

Dimensional Specifications
| RM14-010 | 45° 22mm Weldable Square Base | 22.5 | 28 | 77 | 43 | 16 | 5 | 45° |
| RM14-010 | 45° 25mm Weldable Square Base | 25.4 | 31.5 | 78 | 44 | 17 | 5 | 45° |
| RM14-010 | 60° 22mm Weldable Square Base | 22.5 | 28 | 77 | 44 | 17 | 5 | 60° |
| RM14-010 | 60° 25mm Weldable Square Base | 25.5 | 32 | 78 | 44 | 17 | 5 | 60° |
| RM14-010 | 90° 22mm Weldable Square Base | 22.6 | 27.5 | 78.5 | 44 | 12 | 5 | 90° |
| RM14-010 | 90° 25mm Weldable Square Base | 25.6 | 31.5 | 77.5 | 43.5 | 12.5 | 5 | 90° |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
