MACRO VIEW
SKU: RM14-003

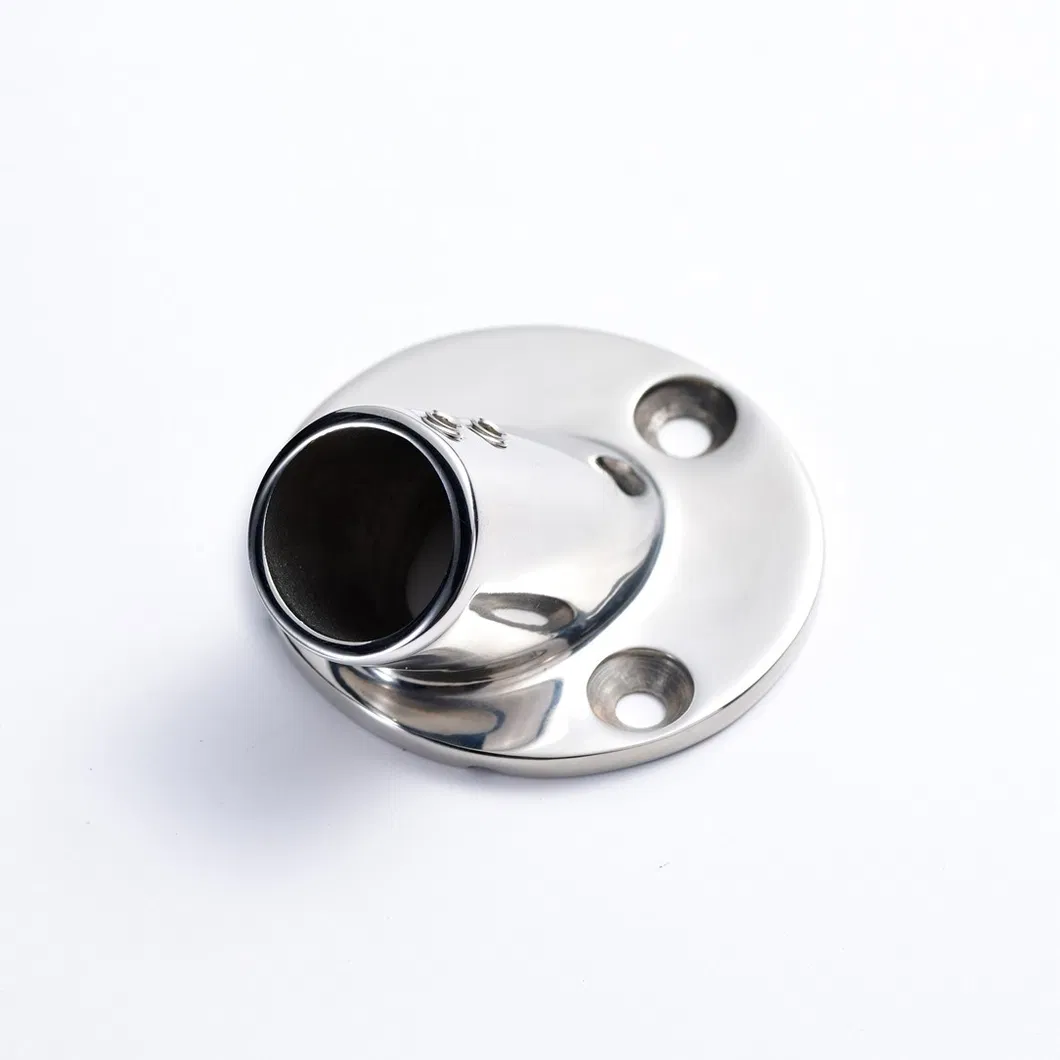

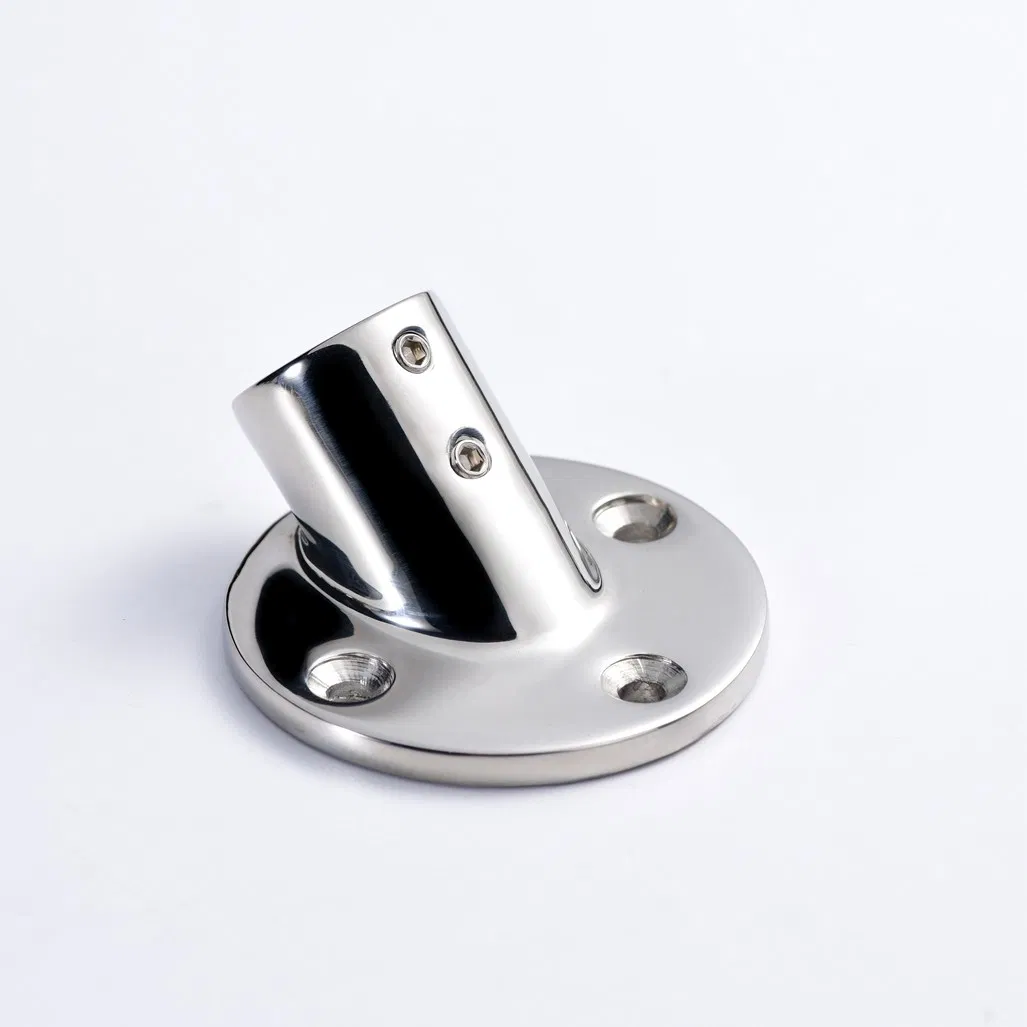

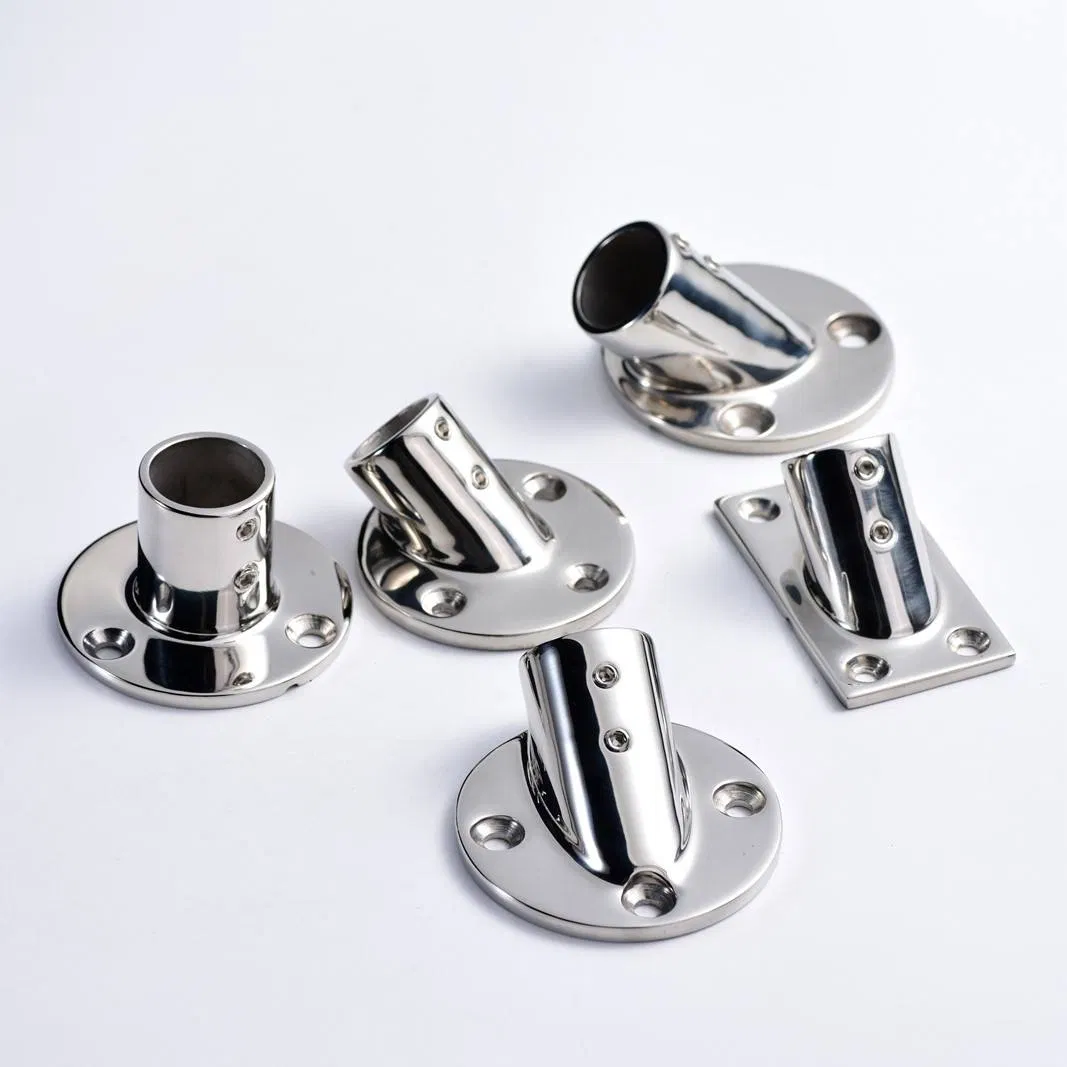

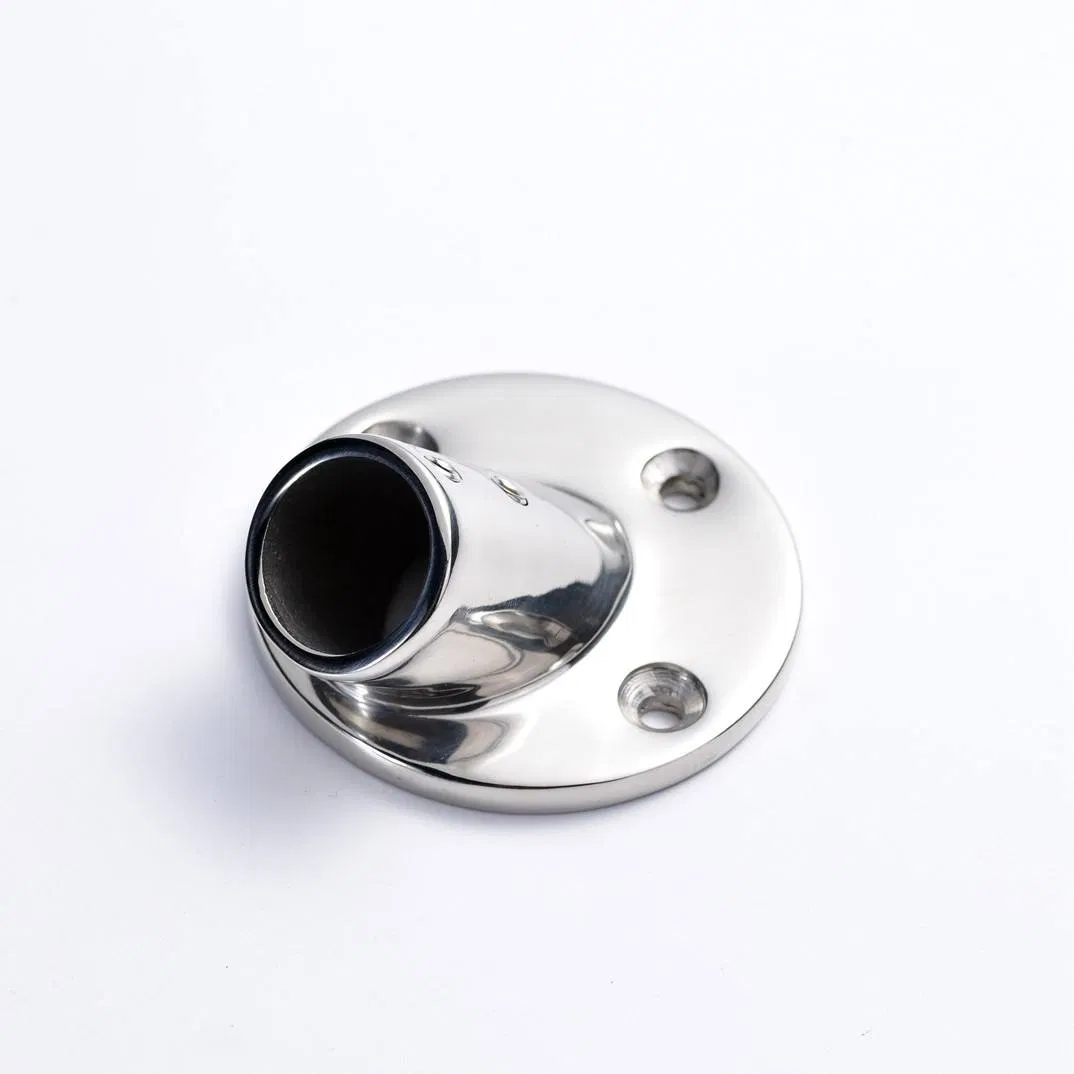

60° Round Handrail Base Fitting
Angled round-footprint 316L rail base. Pre-cast 60-degree geometry aligns complex bow and stairway rail configurations flawlessly.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Angular Vector Matching
Pre-calibrated casting angle eliminates the need for wedge shims, ensuring absolutely vertical handrail installations.
High-Shear Torsional Rigidity
Solid silica sol cast joints maintain structural lock under high-speed wind shear.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic.

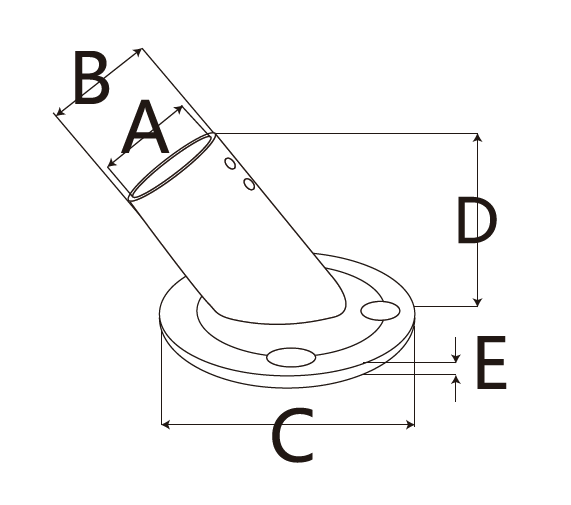

Dimensional Specifications
| RM14-003 | 60° 22mm Round Base | 22.5 | 29 | 66 | 40 | 5 |
| RM14-003 | 60° 25mm Round Base | 25.8 | 32 | 70 | 40 | 5 |
| RM14-003 | 60° 30mm Round Base | 30.5 | 37 | 72 | 49 | 5 |
| RM14-003 | 60° 32mm Round Base | 32.7 | 40 | 72.5 | 53 | 5 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
