MACRO VIEW
SKU: RM02-002

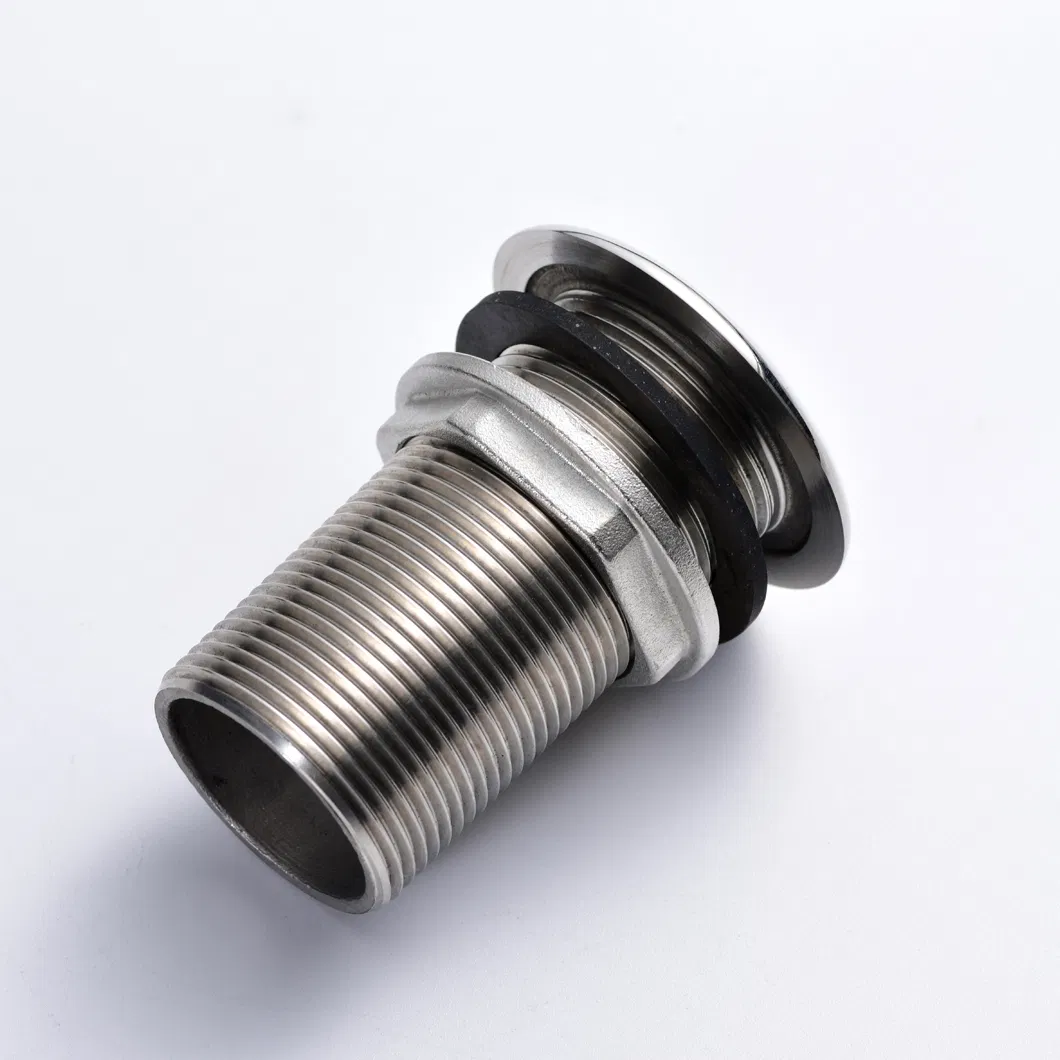

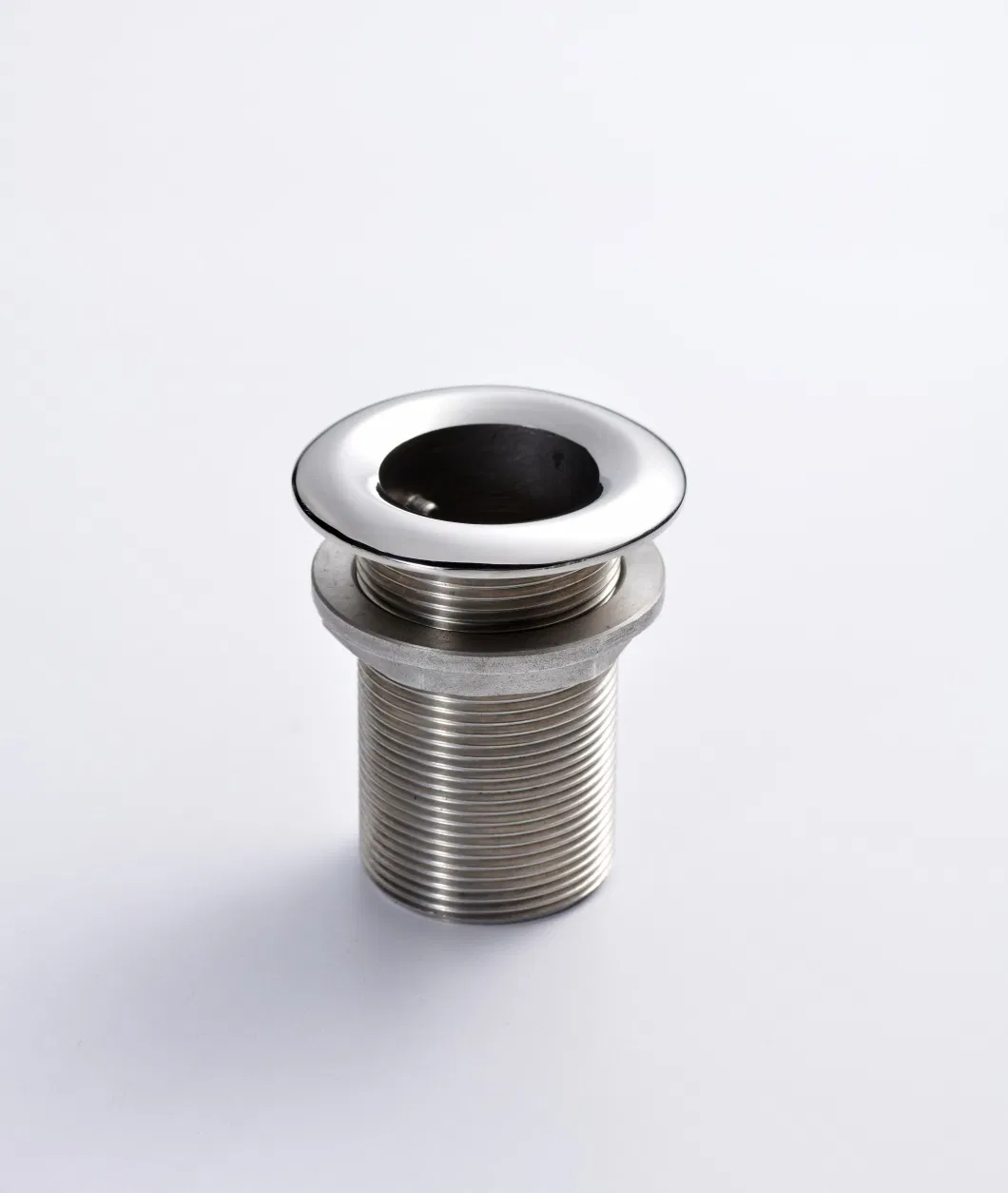

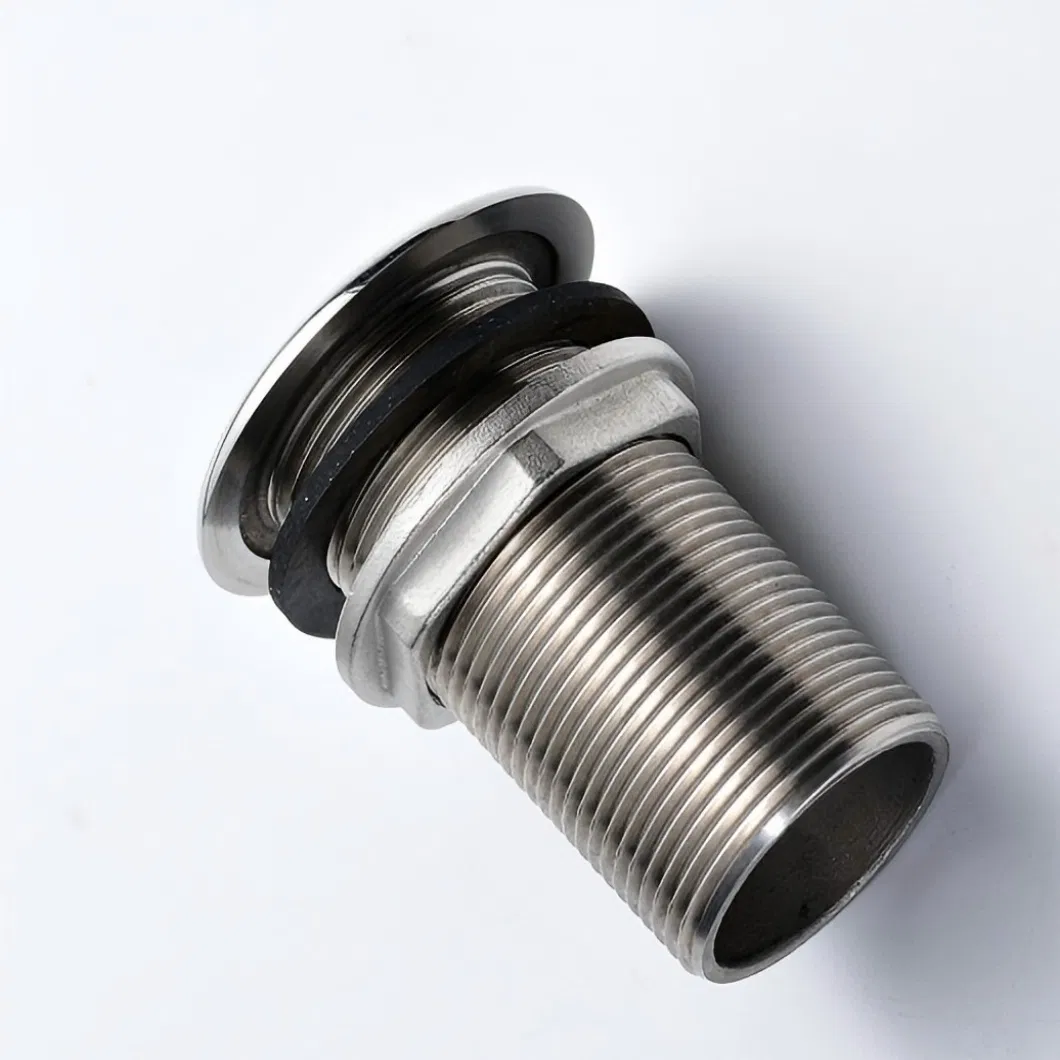

316L SS Thru-Hull with Hose Barb
Integrated barb-end geometry 316L thru-hull. Precision-engineered for high-pressure fluid transfer with superior hose retention.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Multi-Barbed Grip Geometry
CNC-machined ridges maximize internal hose surface contact, preventing blowout under high-volume bilge discharge.
Optimized Fluid Dynamics
Silica sol investment casting ensures a void-free internal core for unobstructed fluid displacement.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

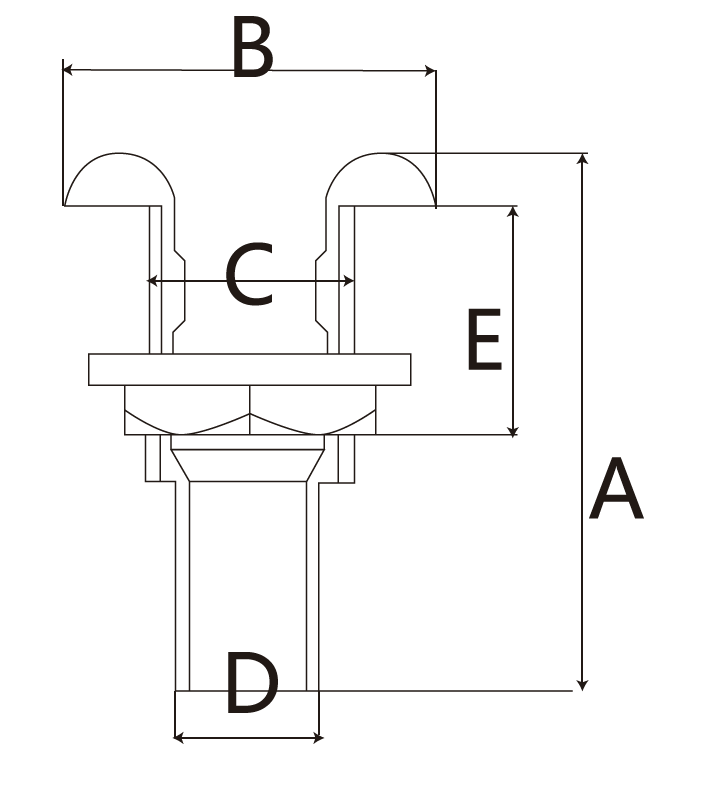

Dimensional Specifications
| RM02-002 | 1/2" Hose Barb Thru-Hull Fitting | 58 | 35 | 16.5 | 14 | 31 |
| RM02-002 | 3/4" Hose Barb Thru-Hull Fitting | 63 | 40 | 21 | 18.5 | 33 |
| RM02-002 | 7/8" Hose Barb Thru-Hull Fitting | 75 | 49 | 26.2 | 23 | 42 |
| RM02-002 | 1" Hose Barb Thru-Hull Fitting | 78 | 54 | 33 | 26 | 43 |
| RM02-002 | 1-1/4" Hose Barb Thru-Hull Fitting | 85 | 57 | 42 | 33.5 | 47 |
| RM02-002 | 1-1/2" Hose Barb Thru-Hull Fitting | 85 | 63 | 42 | 39.5 | 47 |
| RM02-002 | 1-3/4" Hose Barb Thru-Hull Fitting | 87 | 71 | 49 | 46 | 48 |
| RM02-002 | 2" Hose Barb Thru-Hull Fitting | 100 | 85 | 59 | 52 | 50 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
Direct Factory Quote
Start Your Inquiry
Provide your target quantities. Our engineers will return an official quotation within 24 hours.
Inquiring Item:
316L SS Thru-Hull with Hose Barb
