SKU: RM16-001

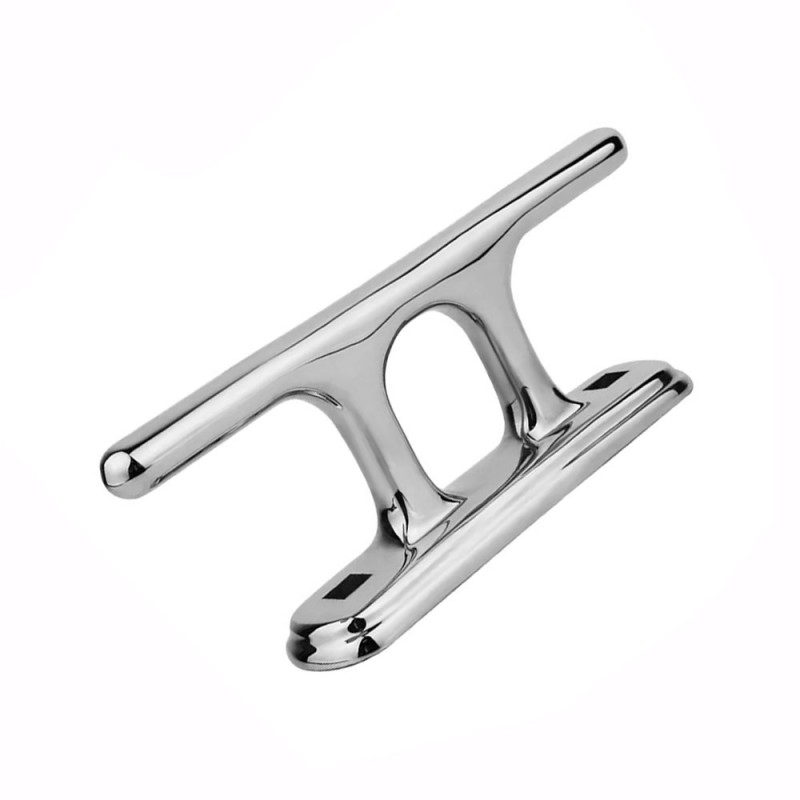

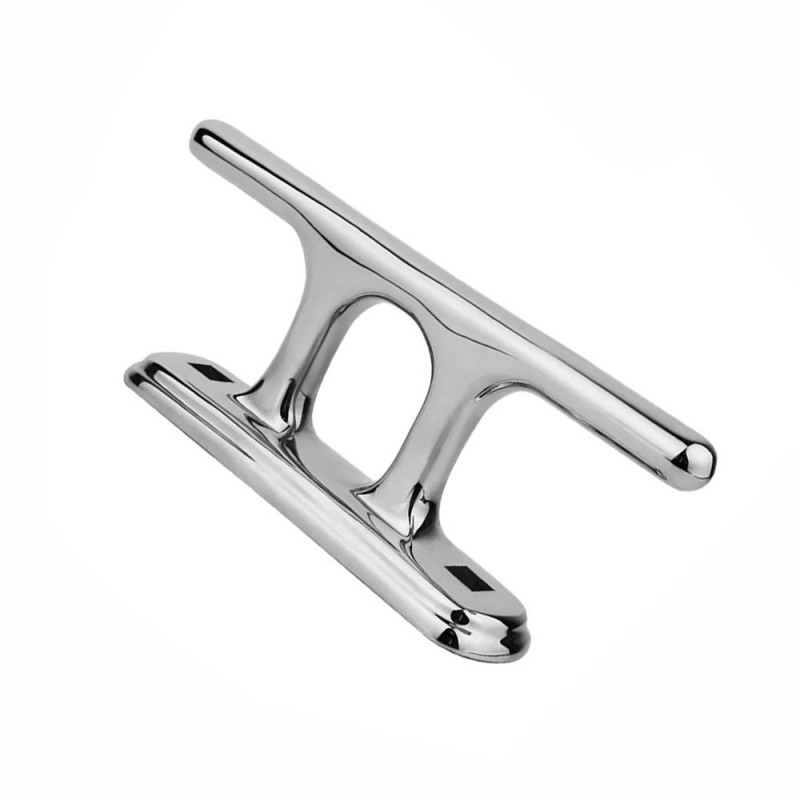

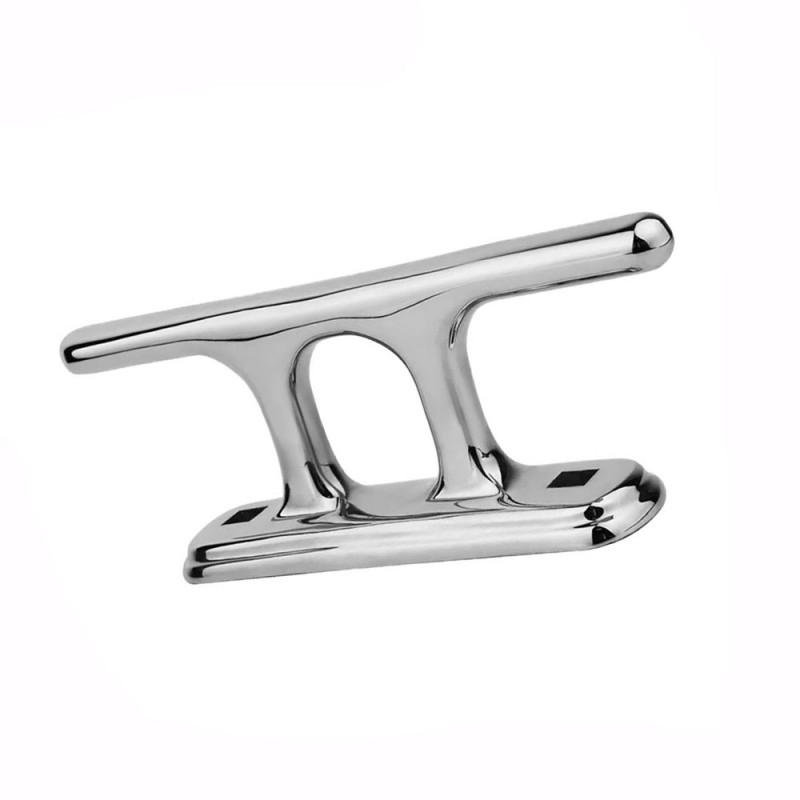

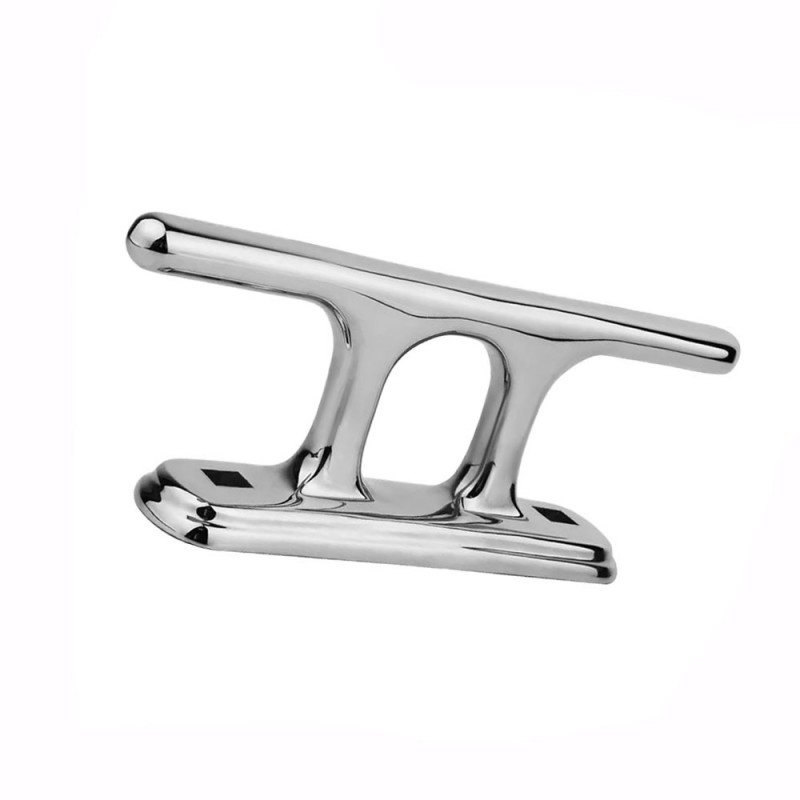

Heavy Duty Mooring Dock Bollard (Square Hole)
Heavy-mass 316L dock bollard. Centralized square pass-through hole enables complex multi-line mooring configurations for commercial vessels.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Cross-Tie Square Core
Machined central aperture allows auxiliary ropes to pass through the bollard body, securing multiple craft safely.
Silica Sol Casting
Void-free internal core guarantees maximum tensile strength against intense wave surges.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

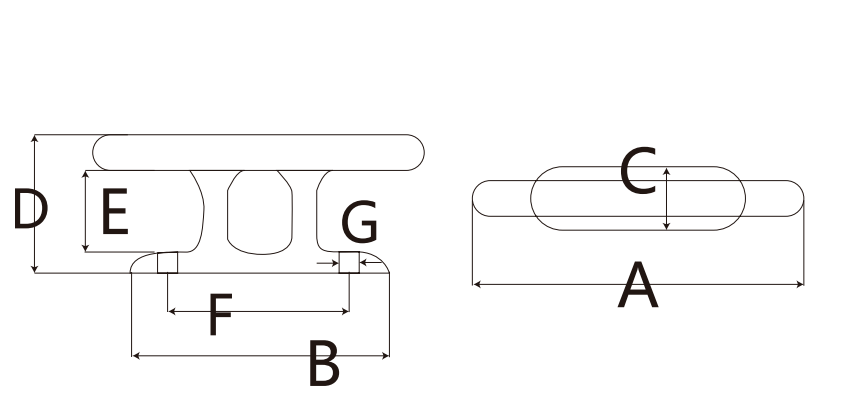

Dimensional Specifications
| RM16-001 | 10" Square Hole Dock Bollard | 260 | 200 | 56 | 100 | 65 | 140 | 14 |
| RM16-001 | 12" Square Hole Dock Bollard | 315 | 225 | 46.5 | 123 | 80 | 176.5 | 14 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
