MACRO VIEW
SKU: RM16-009

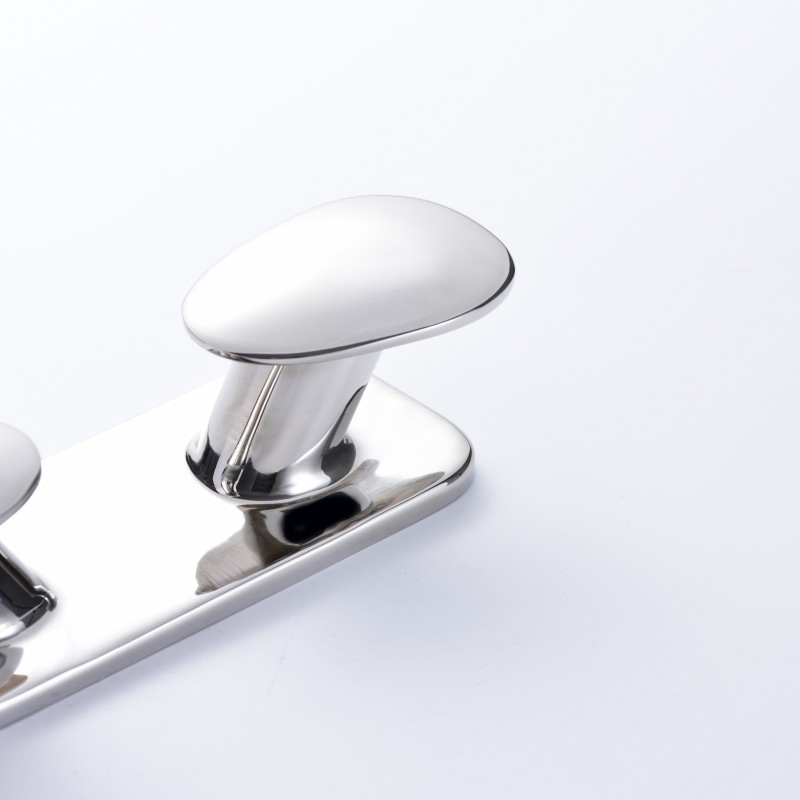

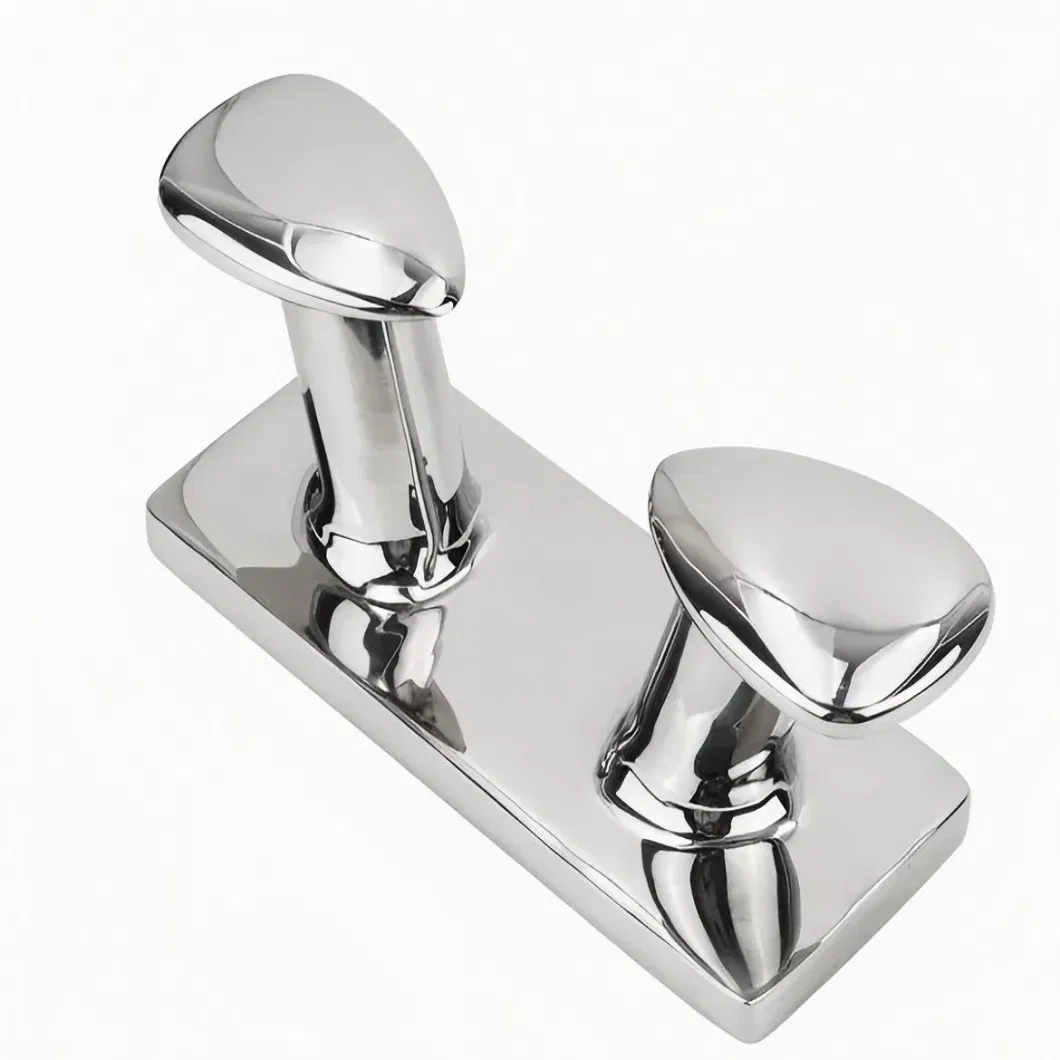

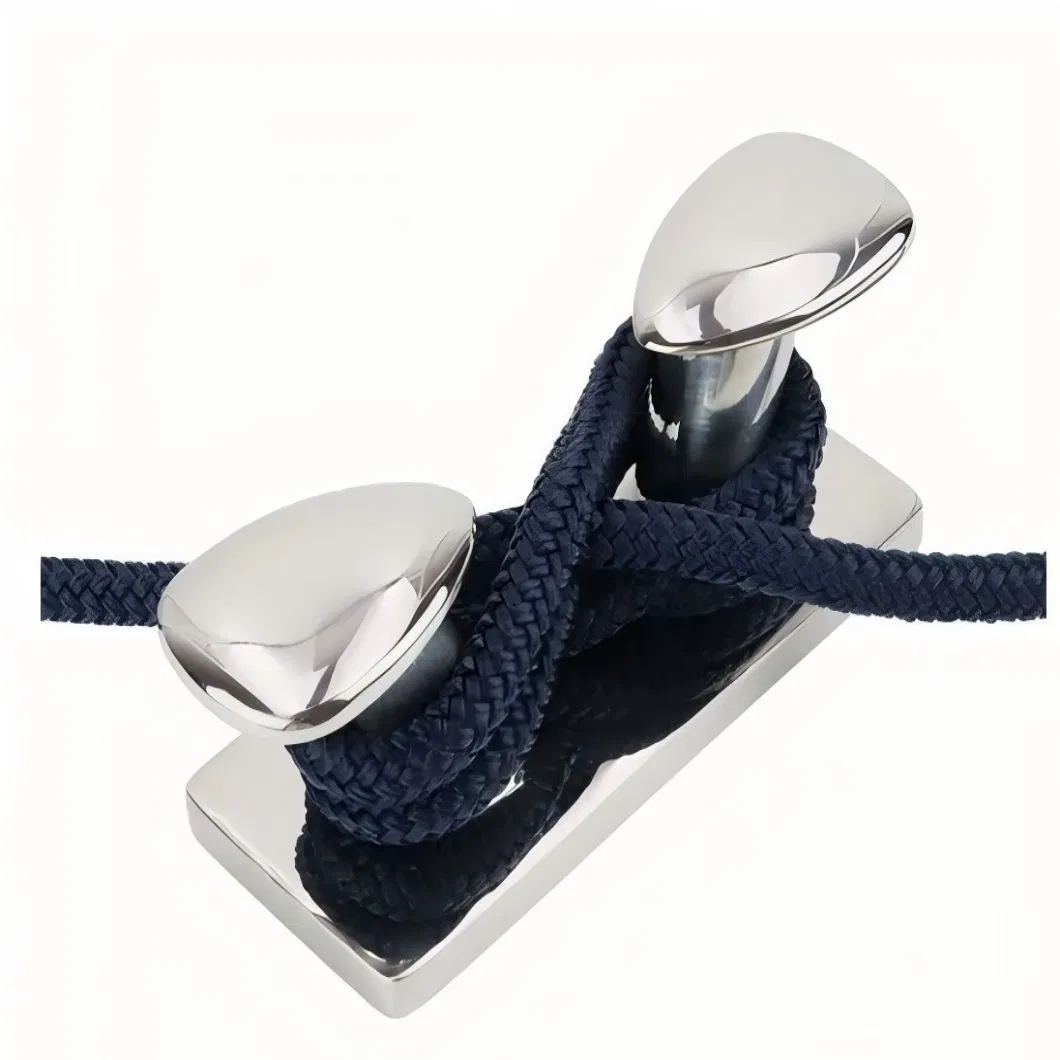

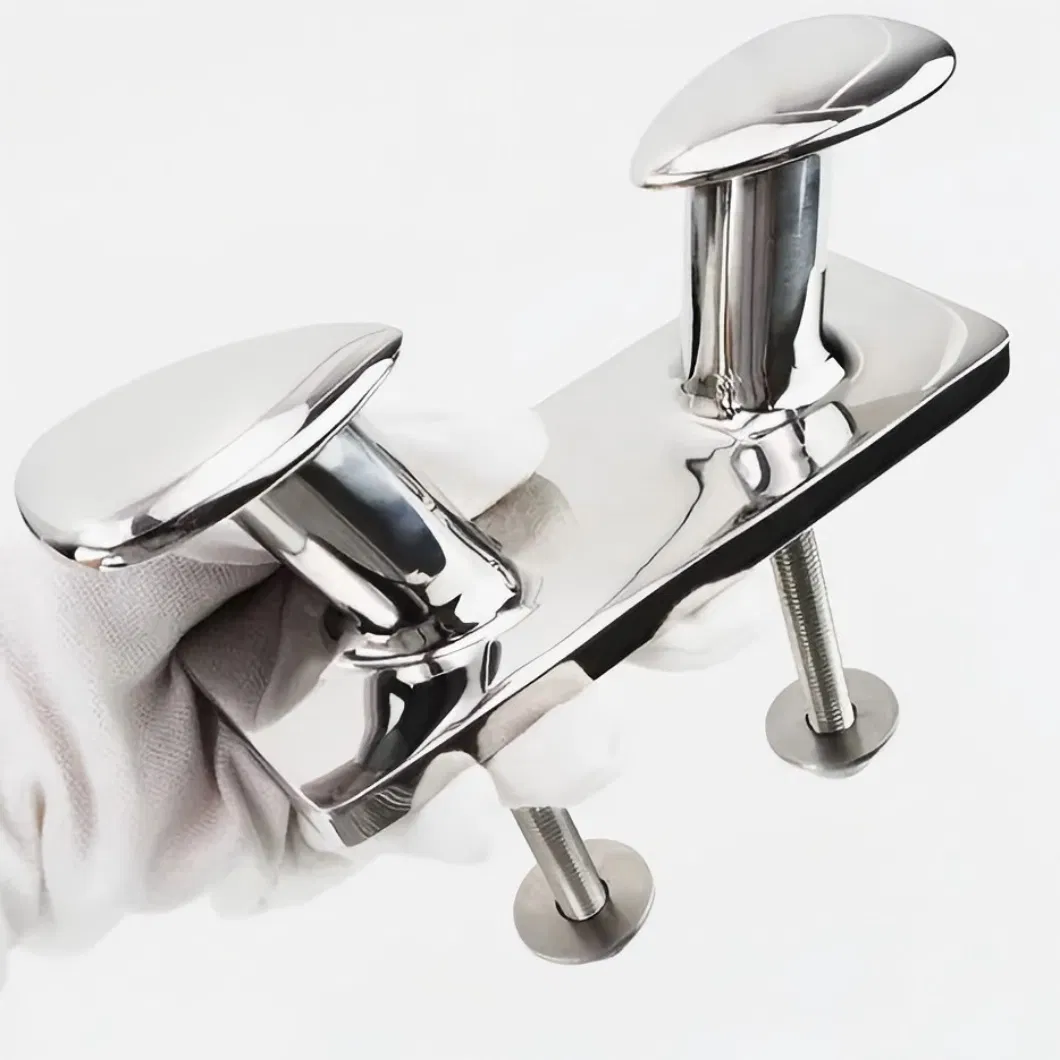

Double Horn Mooring Bollard
Twin-bitt 316L double horn bollard. Independent vertical posts allow multiple vessels to secure lines simultaneously without overlapping or chafing.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Independent Twin Posts
Dual-pillar geometry separates heavy towing or mooring lines, preventing deadly friction melting under load.
Silica Sol Casting
Void-free internal core guarantees maximum tensile strength against intense wave surges.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

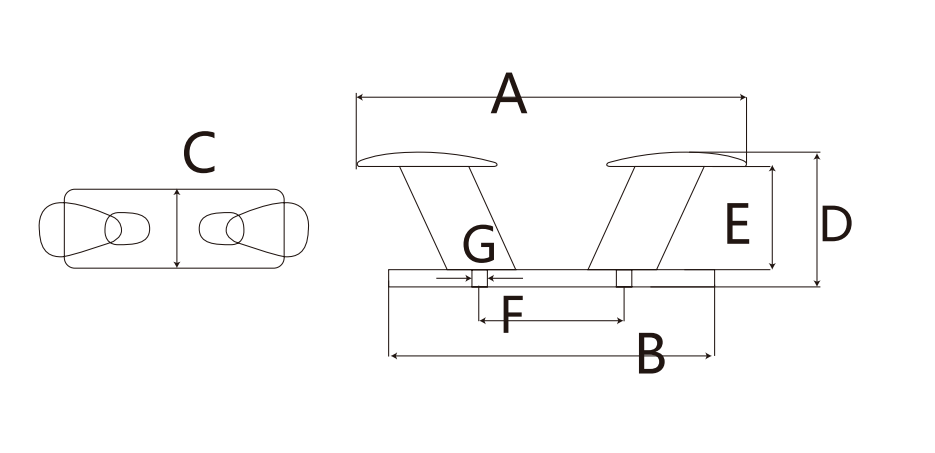

Dimensional Specifications
| RM16-009 | 6" Double Bitt Bollard | 152 | 60 | 62 | 45 | 45 | 45 | 45 |
| RM16-009 | 8" Double Bitt Bollard | 203 | 70 | 77 | 57 | 57 | 57 | 57 |
| RM16-009 | 10" Double Bitt Bollard | 255 | 80 | 91 | 103 | 103 | 103 | 103 |
| RM16-009 | 12" Double Bitt Bollard | 310 | 90 | 109 | 130 | 130 | 130 | 130 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
Direct Factory Quote
Start Your Inquiry
Provide your target quantities. Our engineers will return an official quotation within 24 hours.
