MACRO VIEW
SKU: RM13-001

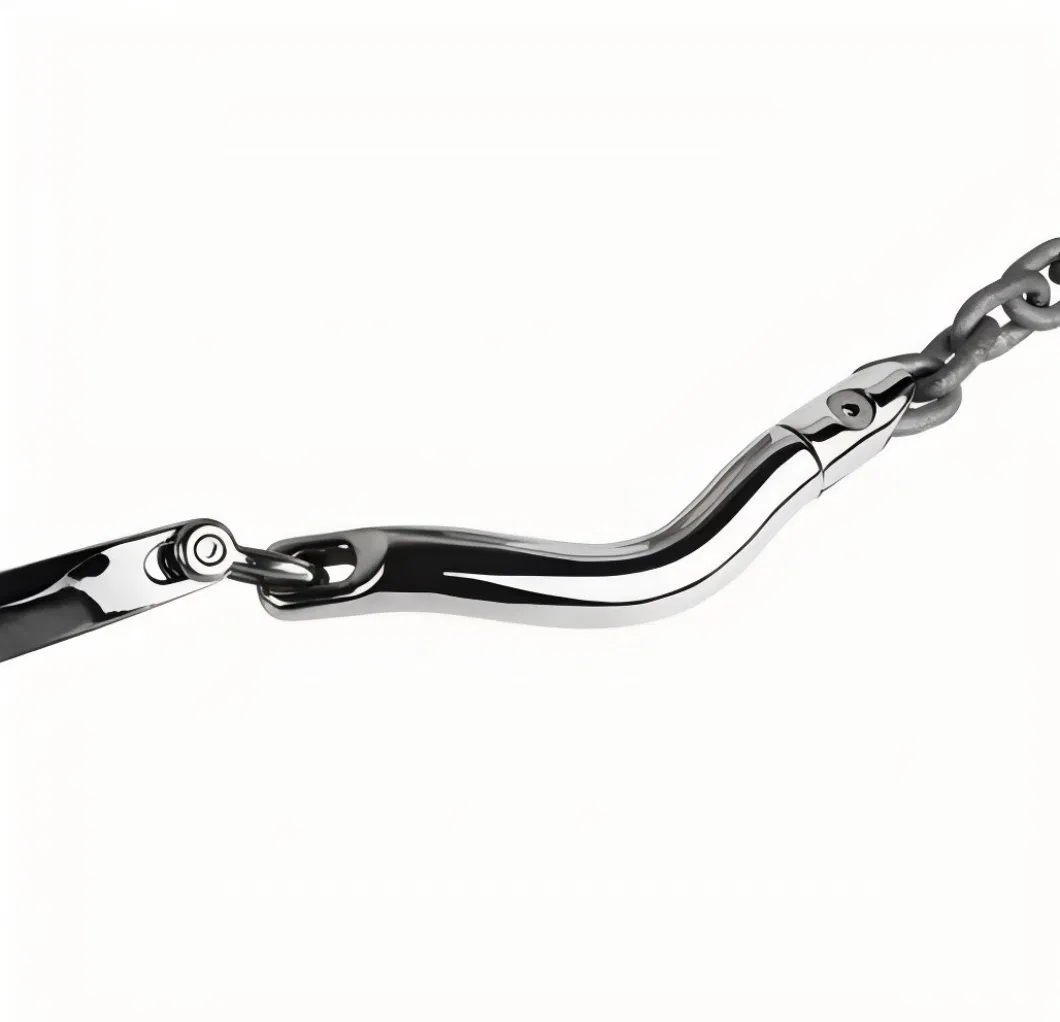

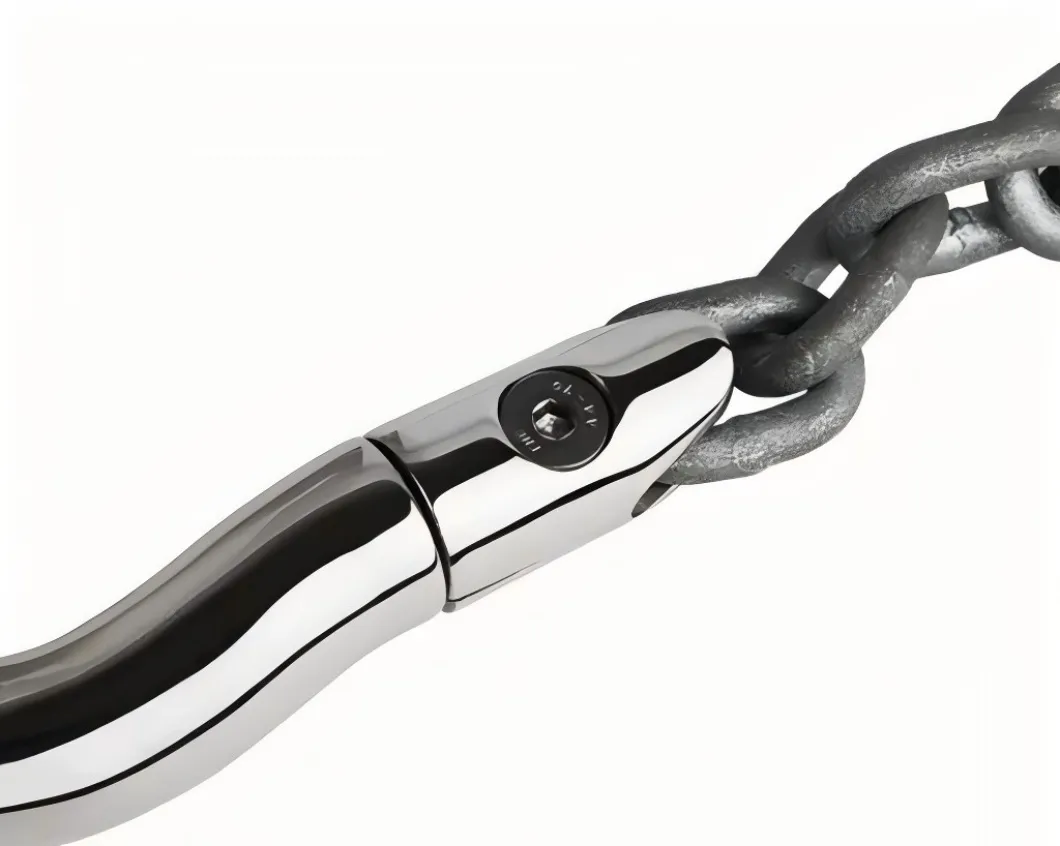

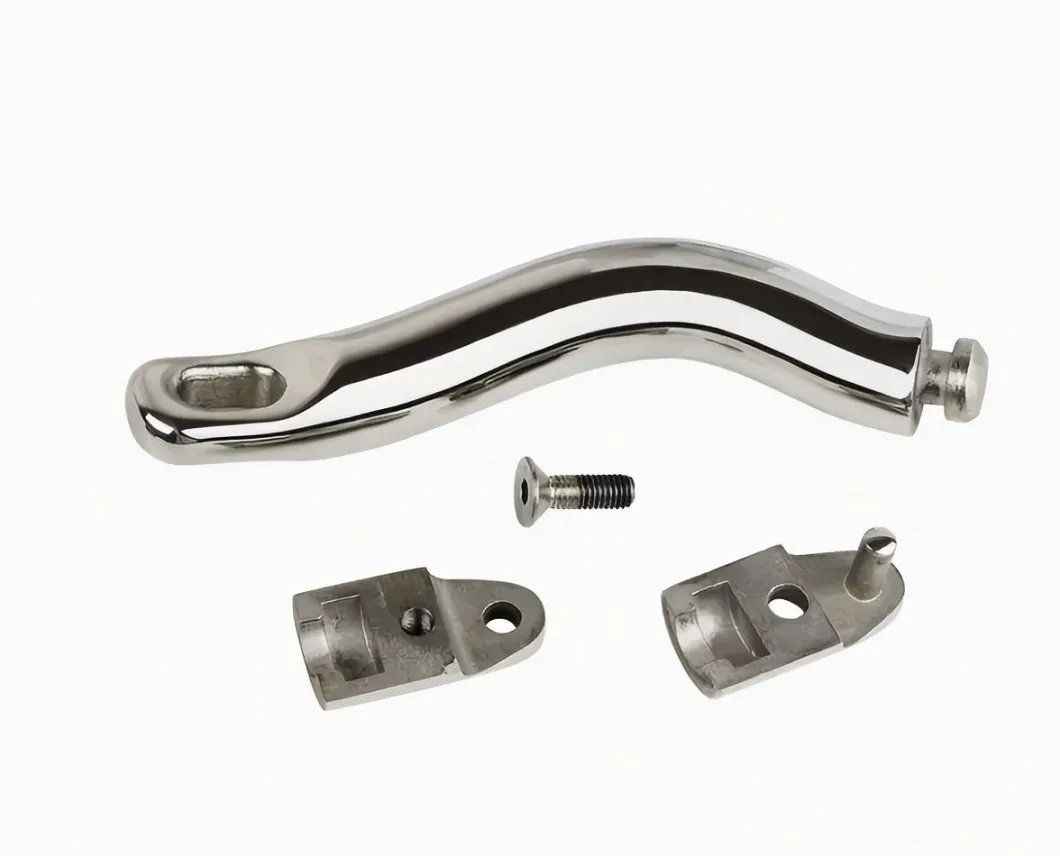

Multi-Directional Anchor Swivel Connector
Multi-axial 316L anchor swivel connector. Prevents anchor chain twisting and severe snagging during automated windlass retrieval.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
360-Degree Torsional Relief
Rotating hub allows the ground tackle to spin freely under water, protecting the windlass motor from torque jams.
Silica Sol Casting
Void-free internal core guarantees maximum tensile strength against intense wave surges.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

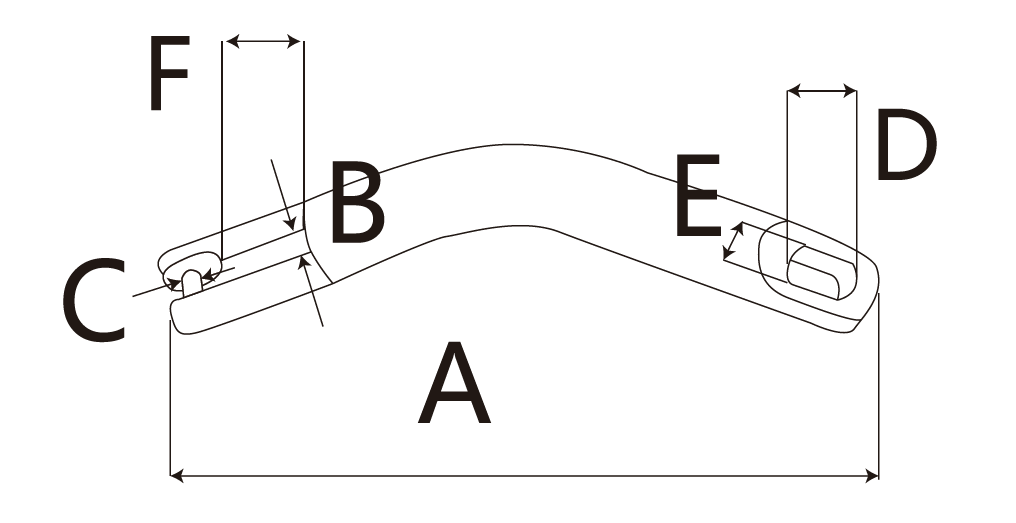

Dimensional Specifications
| RM13-001 | 6-8mm Bent Anchor Swivel | 230 | 10 | 8 | 20.5 | 11 | 10 |
| RM13-001 | 10-12mm Bent Anchor Swivel | 305 | 14 | 12 | 28 | 15 | 12 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
