SKU: RM13-003

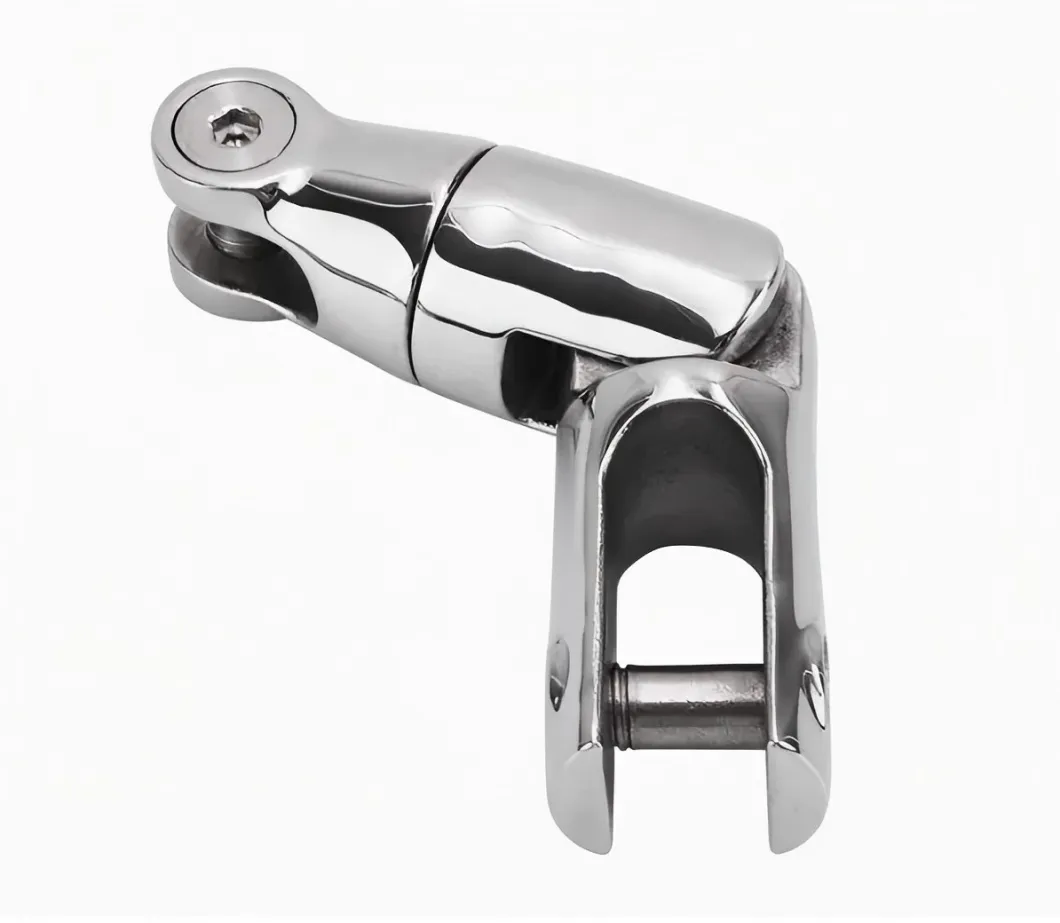

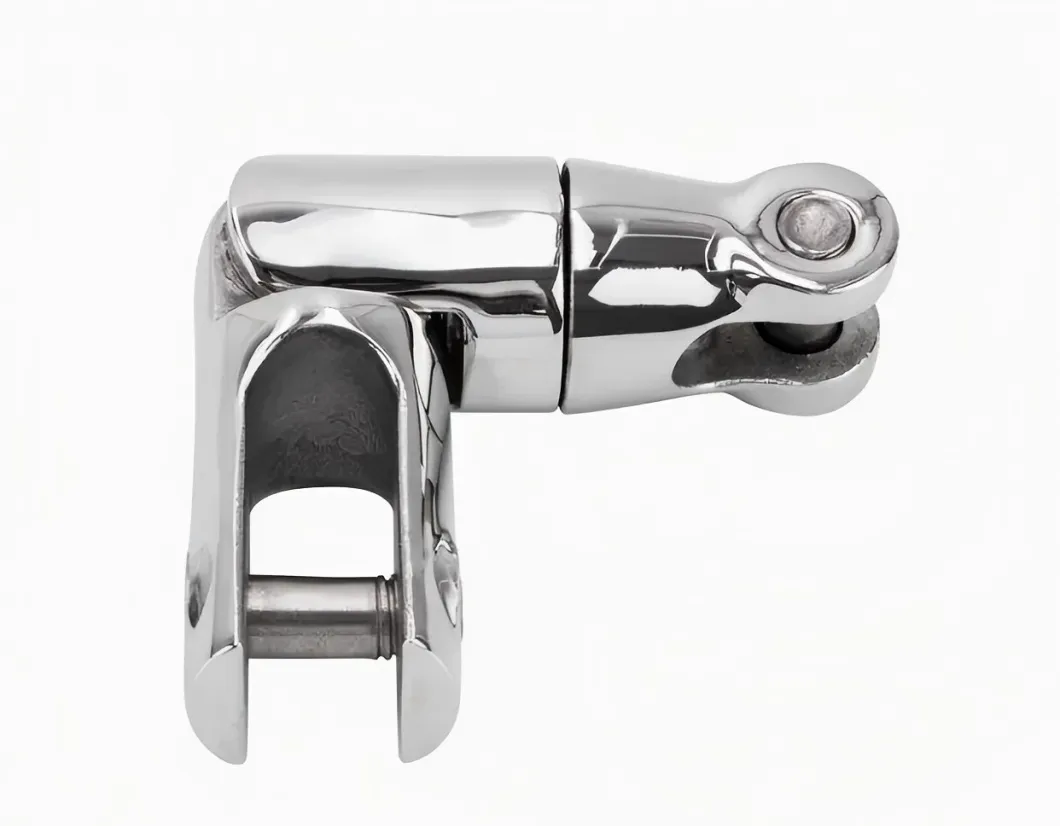

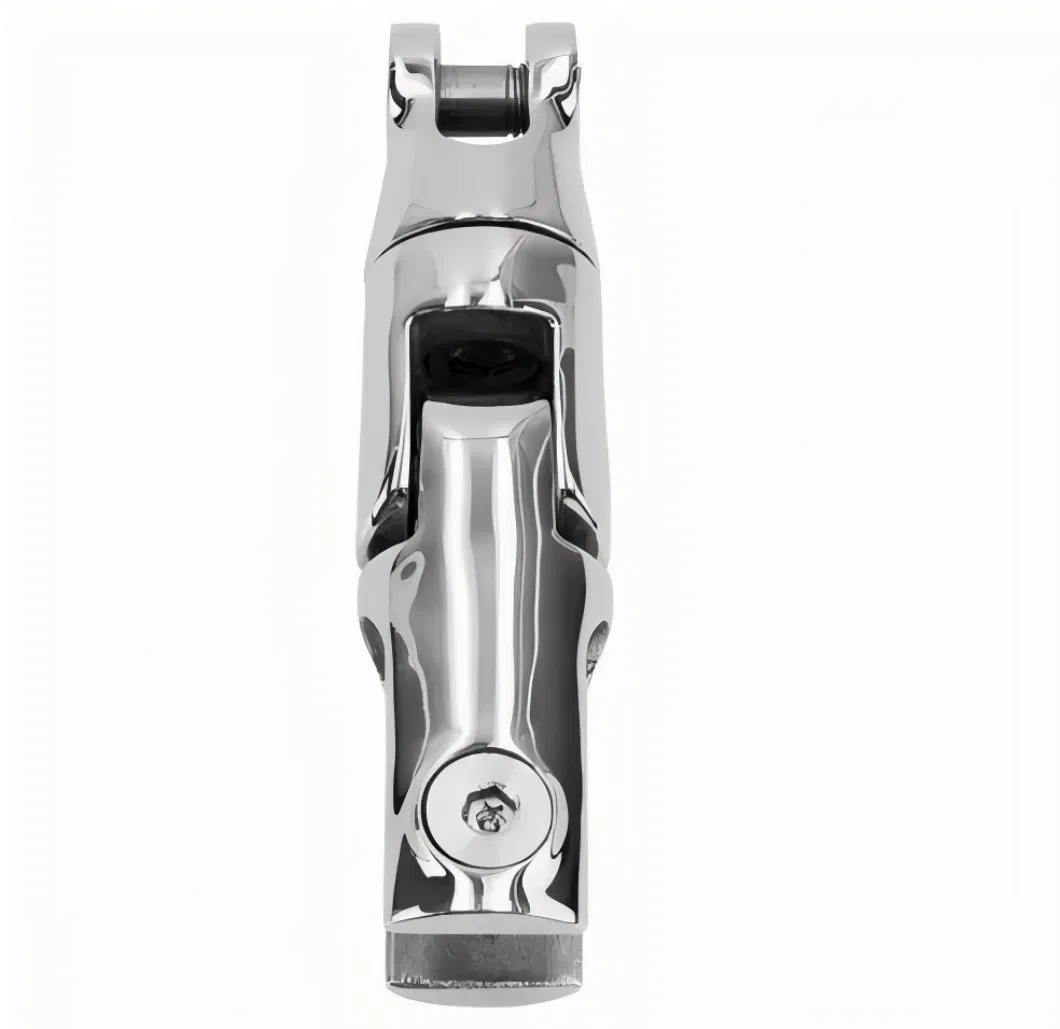

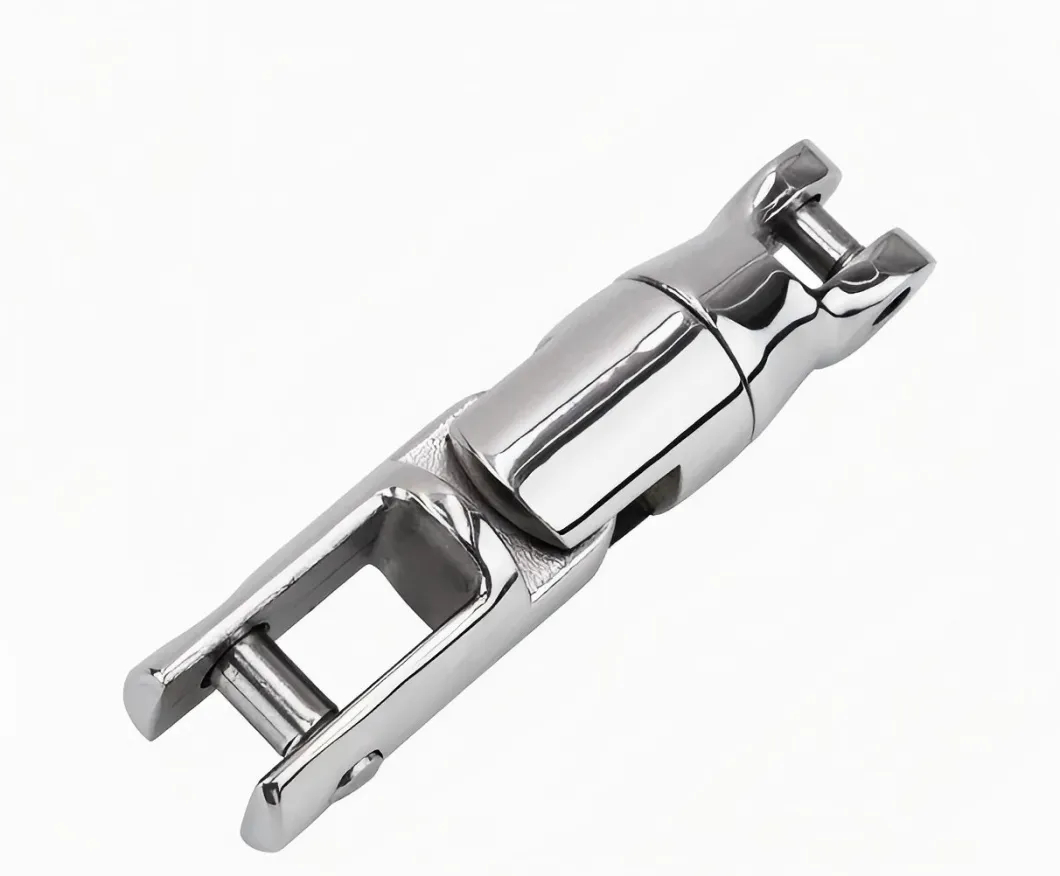

3-Stage Anchor Swivel Connector
Triple-articulated 316L anchor swivel. Three-piece joint provides extreme lateral and rotational flexibility for massive ground tackle systems.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Multi-Axis Freedom Hub
Advanced triple-joint design prevents side-loading on the pin, absorbing violent multi-directional snatch forces.
Silica Sol Casting
Void-free internal core guarantees maximum tensile strength against intense wave surges.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

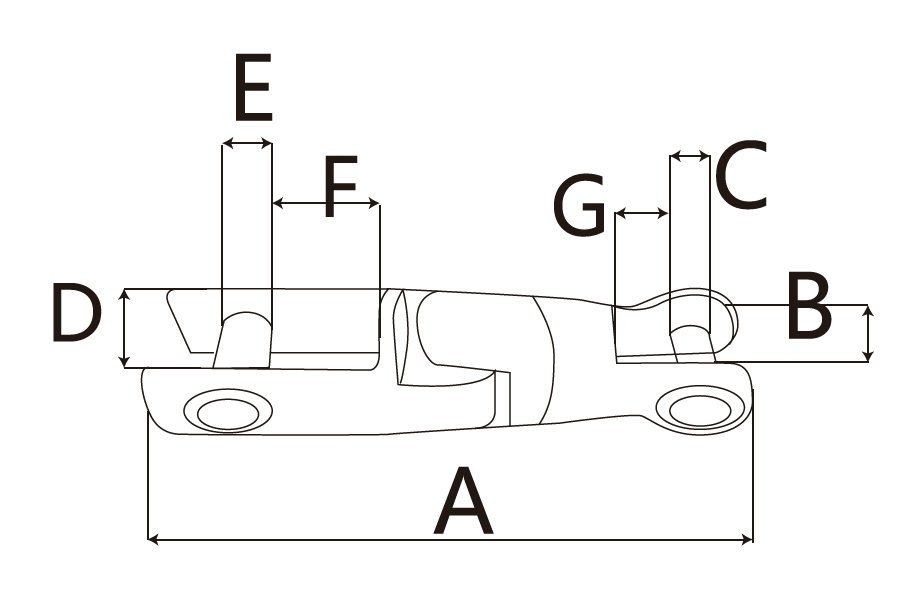

Dimensional Specifications
| RM13-003 | 6-8mm 3-Piece Anchor Swivel | 120 | 10.5 | 8 | 15 | 10 | 21 | 10 |
| RM13-003 | 10-12mm 3-Piece Anchor Swivel | 151 | 13 | 12 | 18 | 12 | 28 | 12 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
