MACRO VIEW
SKU: RM10-005

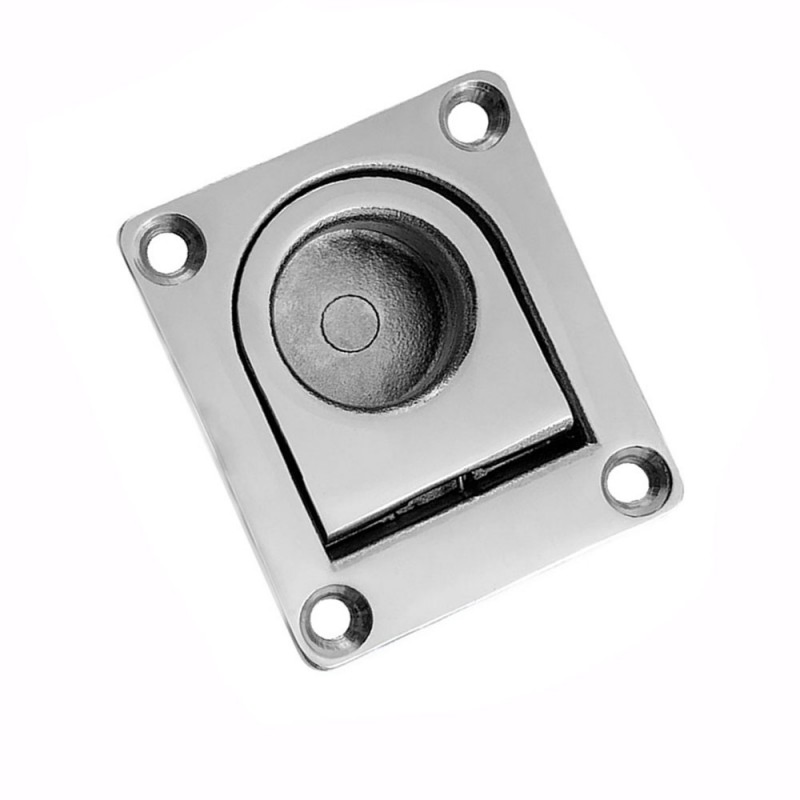

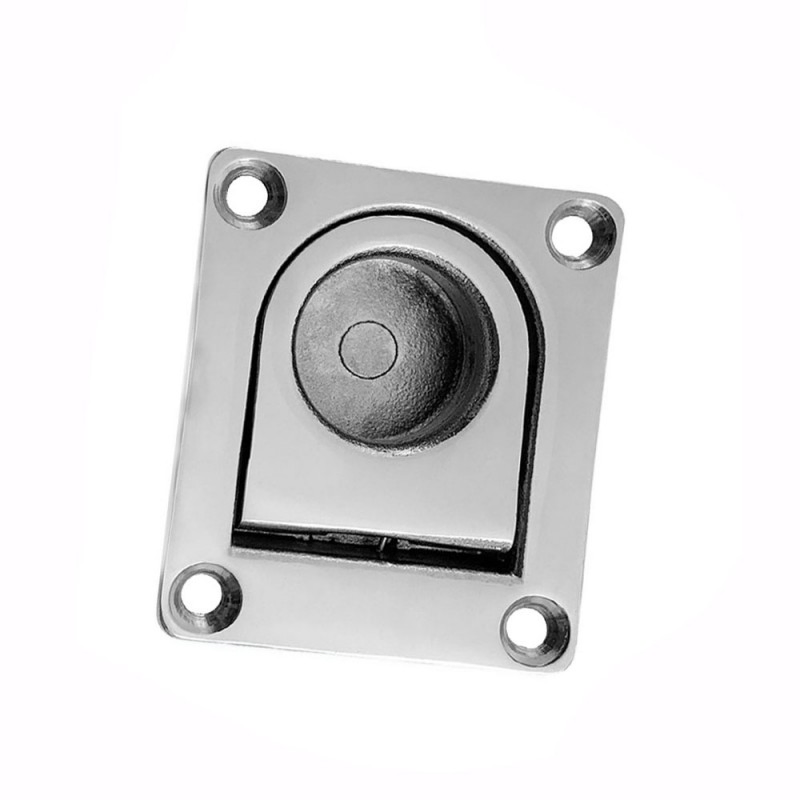

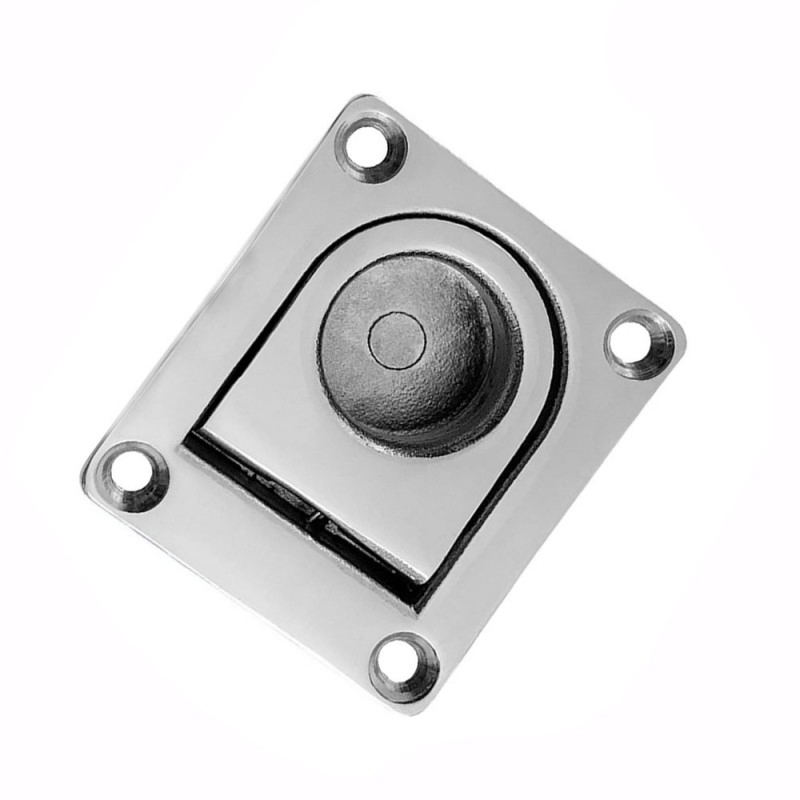

Spring-Loaded Square Flush Lift Ring
Spring-loaded 316L flush lift ring. High-tension internal spring eliminates rattle and automatically retracts the handle.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Anti-Rattle Spring Retraction
Internal high-tension spring forces the handle flat against the housing, completely eliminating vibration noise.
Wear-Resistant Articulation
Tight-tolerance pins and micro-polished internal surfaces ensure smooth operation without binding.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic under harsh marine environments.

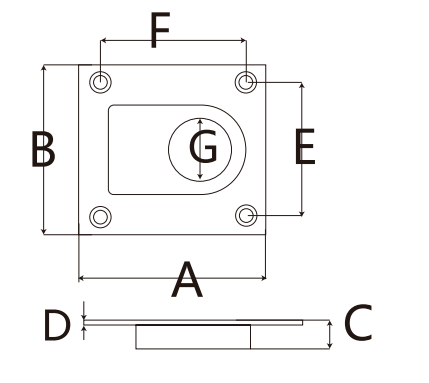

Dimensional Specifications
| RM10-005 | 45*38 Square Spring Flush Pull | 45 | 38 | 10.5 | 2 | 28.5 | 36 | 18.5 |
| RM10-005 | 66*56 Square Spring Flush Pull | 66 | 56 | 14.5 | 2.8 | 44 | 54 | 25 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
Spring-Loaded Square Flush Lift Ring
