MACRO VIEW
SKU: RM03-002

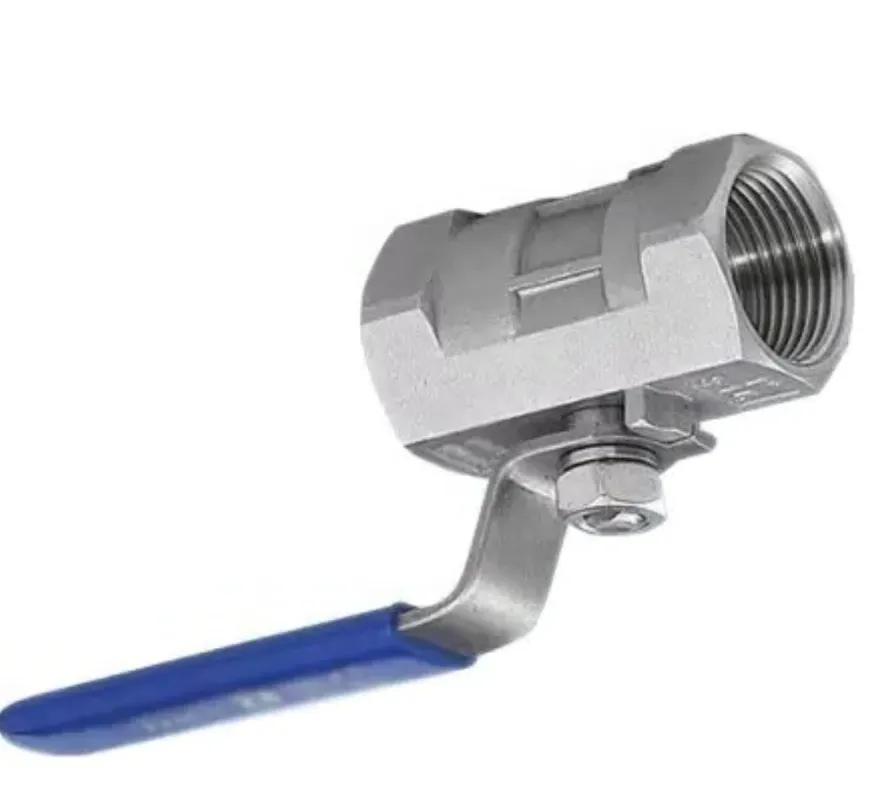

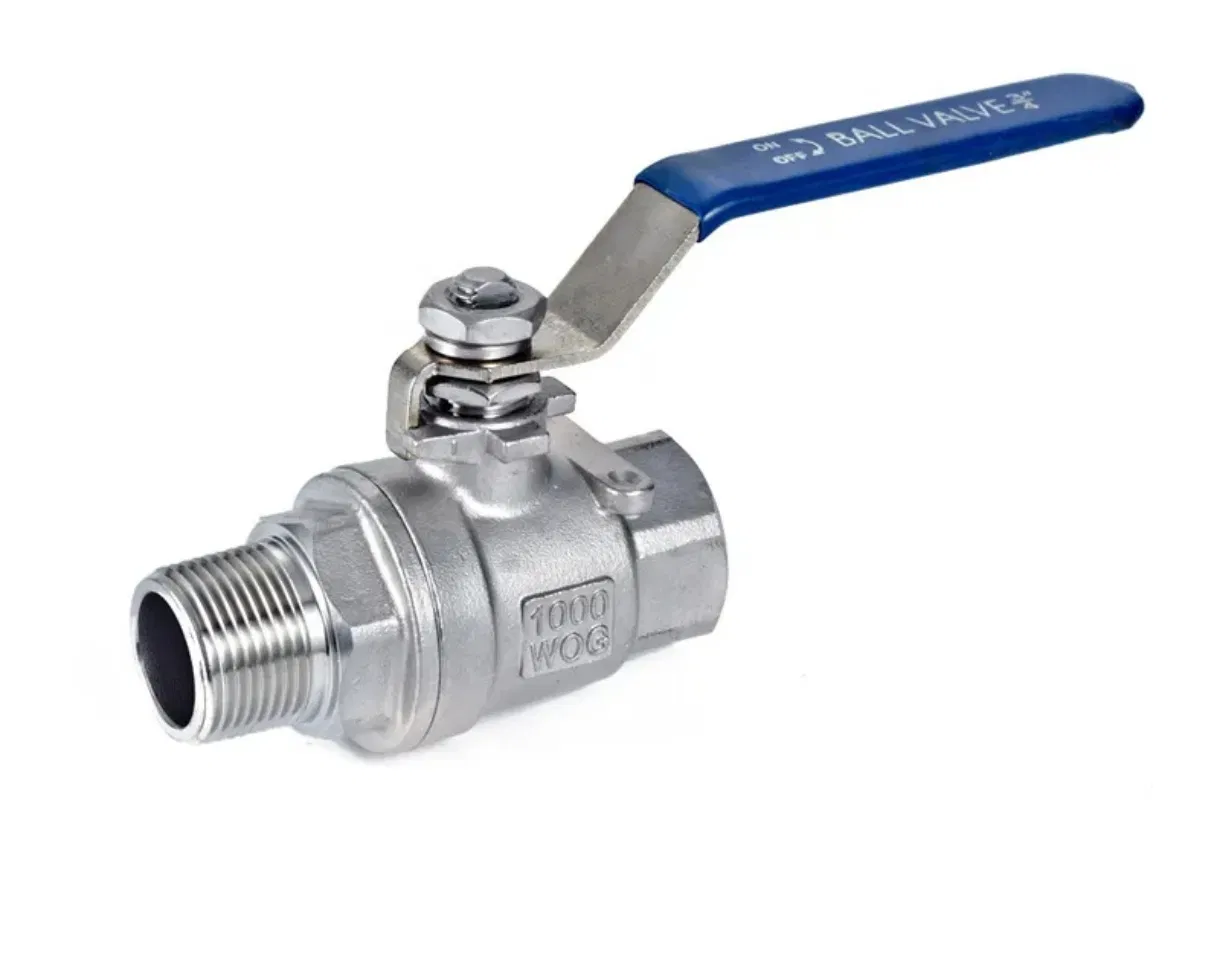

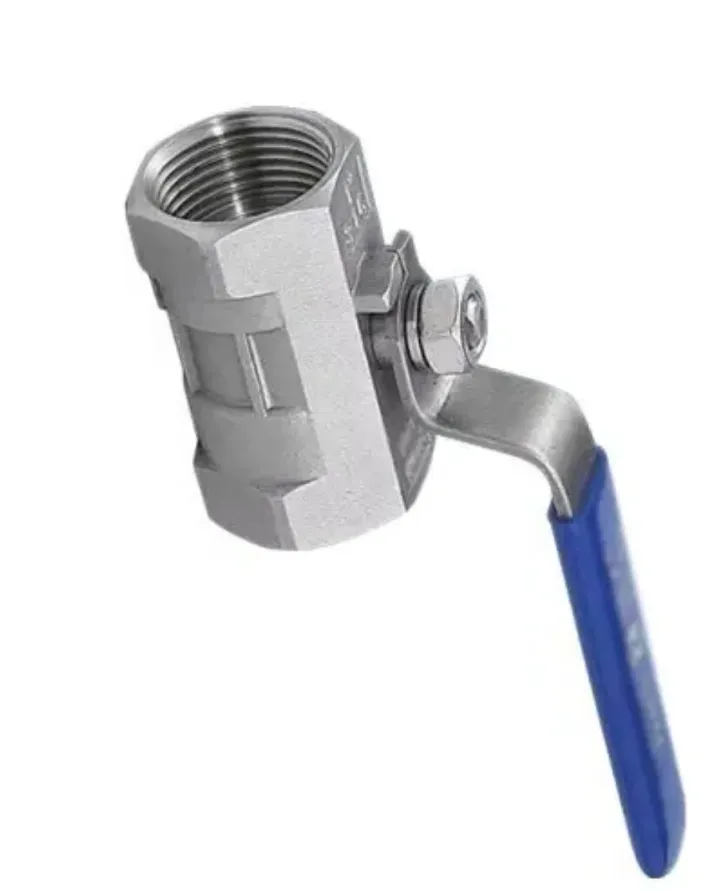

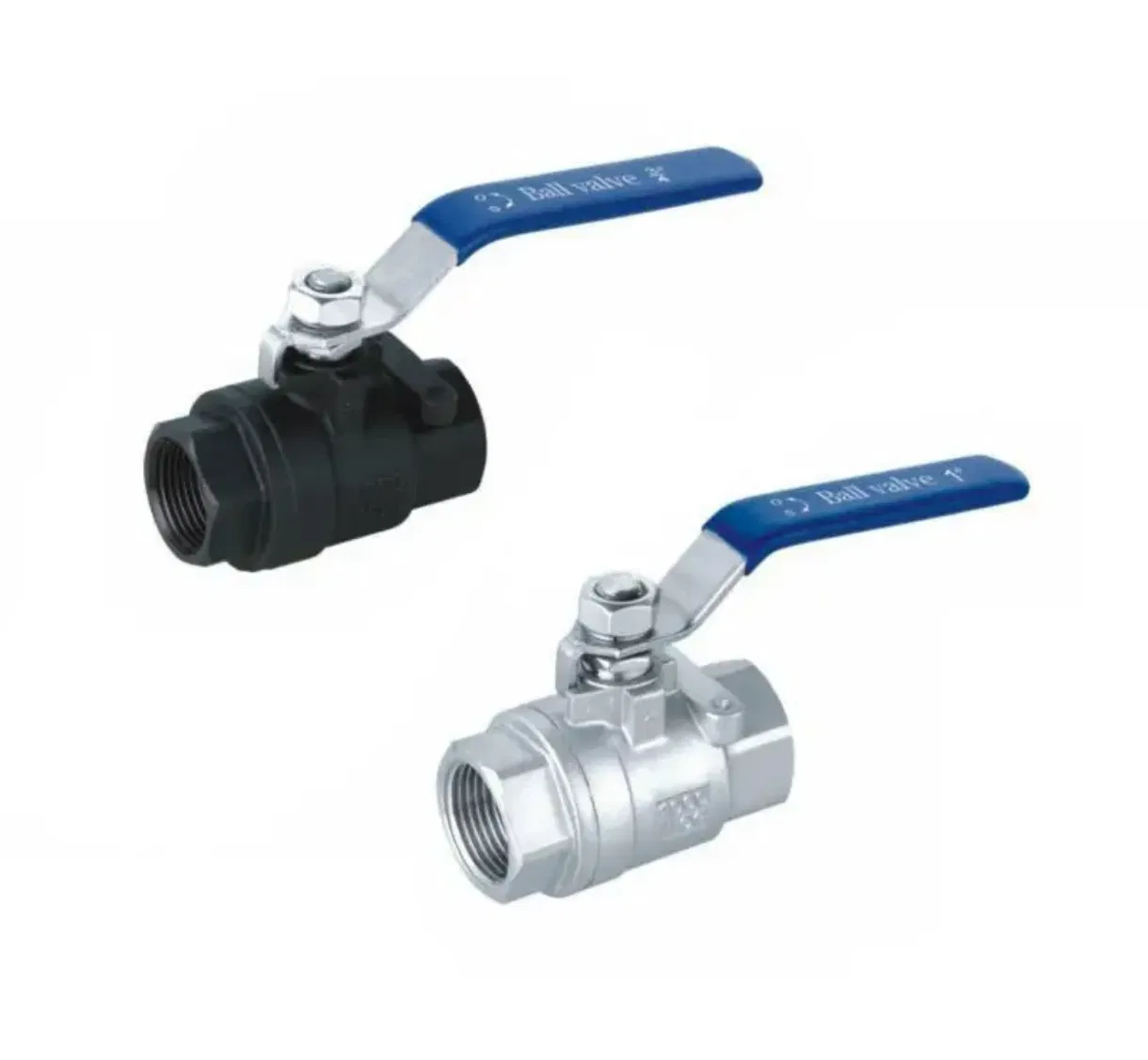

316 SS Marine Grade Ball Valve
High-pressure 316L marine ball valve. Features a PTFE-sealed rotary sphere for instant, zero-leak fluid shutoff under extreme system pressure.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
PTFE Sealed Rotary Sphere
High-tolerance machined internal ball paired with marine-grade seals guarantees absolute shut-off integrity.
NPT/BSP Thread Precision
CNC-machined threads guarantee 100% watertight integrity against engine vibration and hull torsion.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

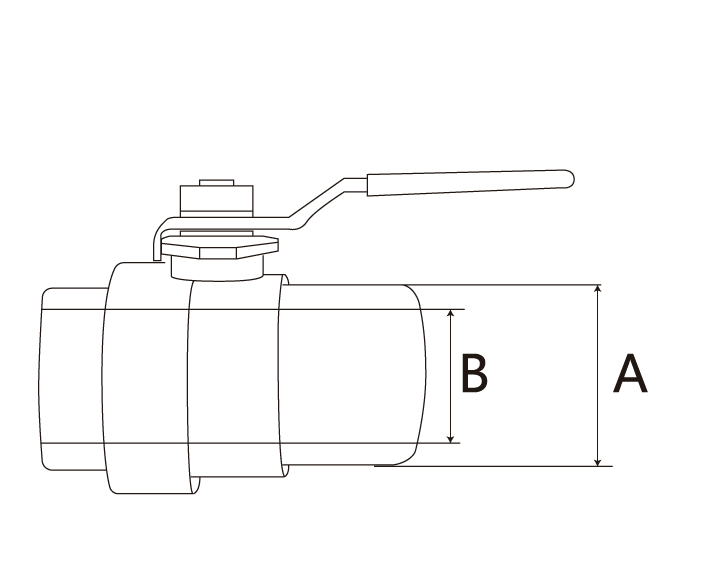

Dimensional Specifications
| RM03-002 | 1/4" 1-Piece Ball Valve | 12.5 | 11.5 |
| RM03-002 | 3/8" 1-Piece Ball Valve | 16 | 15 |
| RM03-002 | 1/2" 1-Piece Ball Valve | 20 | 19 |
| RM03-002 | 3/4" 1-Piece Ball Valve | 25.5 | 24 |
| RM03-002 | 1" 1-Piece Ball Valve | 32 | 30 |
| RM03-002 | 1-1/4" 1-Piece Ball Valve | 40.5 | 39 |
| RM03-002 | 1-1/2" 1-Piece Ball Valve | 46 | 44 |
| RM03-002 | 2" 1-Piece Ball Valve | 58 | 56.5 |
| RM03-002 | 2-1/2" 1-Piece Ball Valve | 74 | 72.5 |
| RM03-002 | 3" 1-Piece Ball Valve | 86 | 84.5 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
Direct Factory Quote
Start Your Inquiry
Provide your target quantities. Our engineers will return an official quotation within 24 hours.
Inquiring Item:
316 SS Marine Grade Ball Valve
