MACRO VIEW
SKU: RM15-001
316L SS Inspection Deck Plate with Key
Key-locking 316L inspection deck plate. Low-profile CNC machined cap ensures a watertight seal and absolute security for critical bilge compartments.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Tamper-Proof Flush Lock
Machined keyway requires specialized tooling to open, preventing unauthorized access to fuel lines or storage.
Wear-Resistant Articulation
Tight-tolerance pins and micro-polished internal surfaces ensure smooth operation without binding.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic.

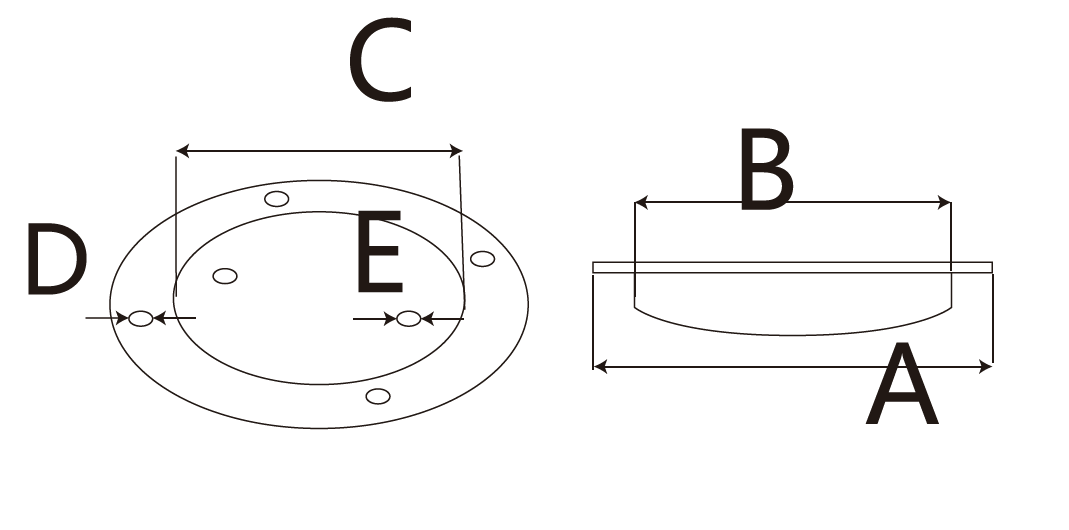

Dimensional Specifications
| RM15-001 | 3" Locking Deck Plate with Key | 123 | 78 | 86 | 5 | 6.5 |
| RM15-001 | 4" Locking Deck Plate with Key | 140 | 102 | 110 | 5 | 6.5 |
| RM15-001 | 5" Locking Deck Plate with Key | 177 | 126 | 136 | 5.5 | 6.5 |
| RM15-001 | 6" Locking Deck Plate with Key | 197 | 152 | 160 | 5.5 | 6.5 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
