SKU: RM06-008

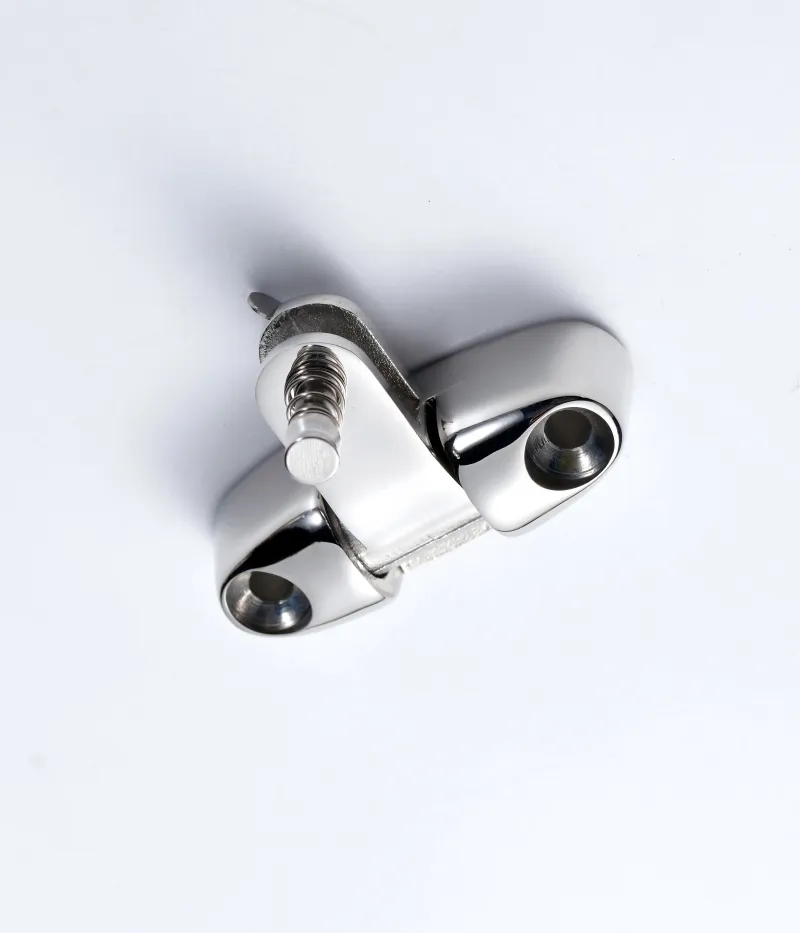

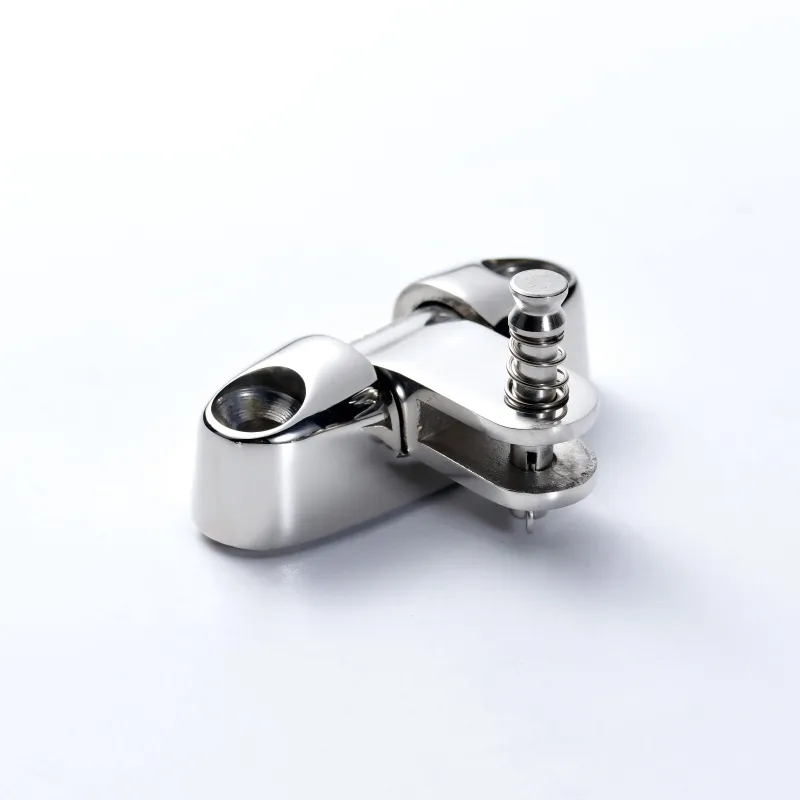

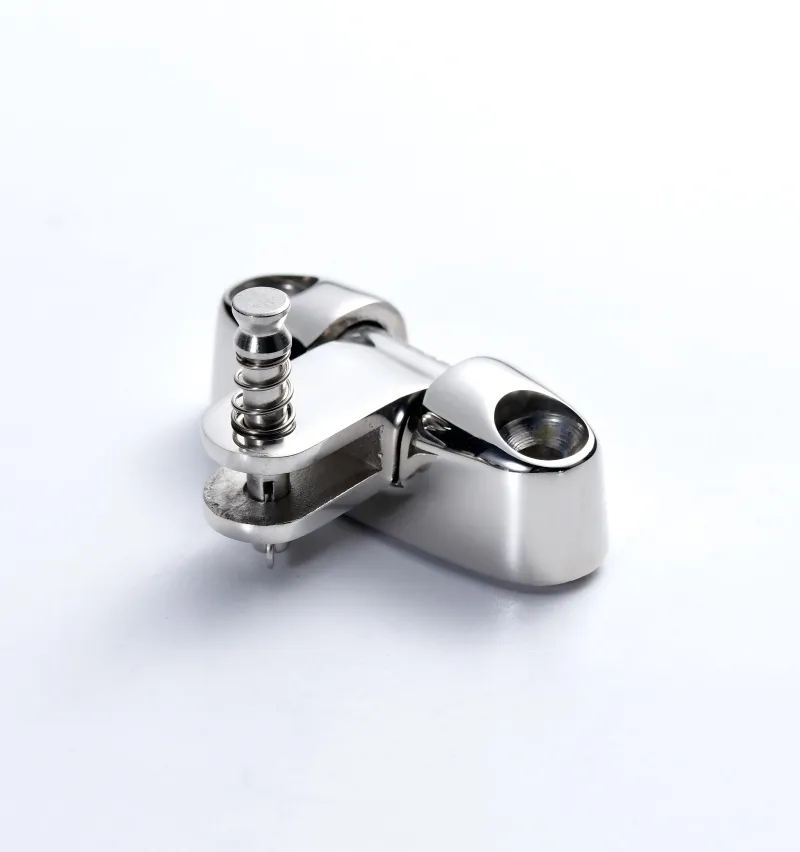

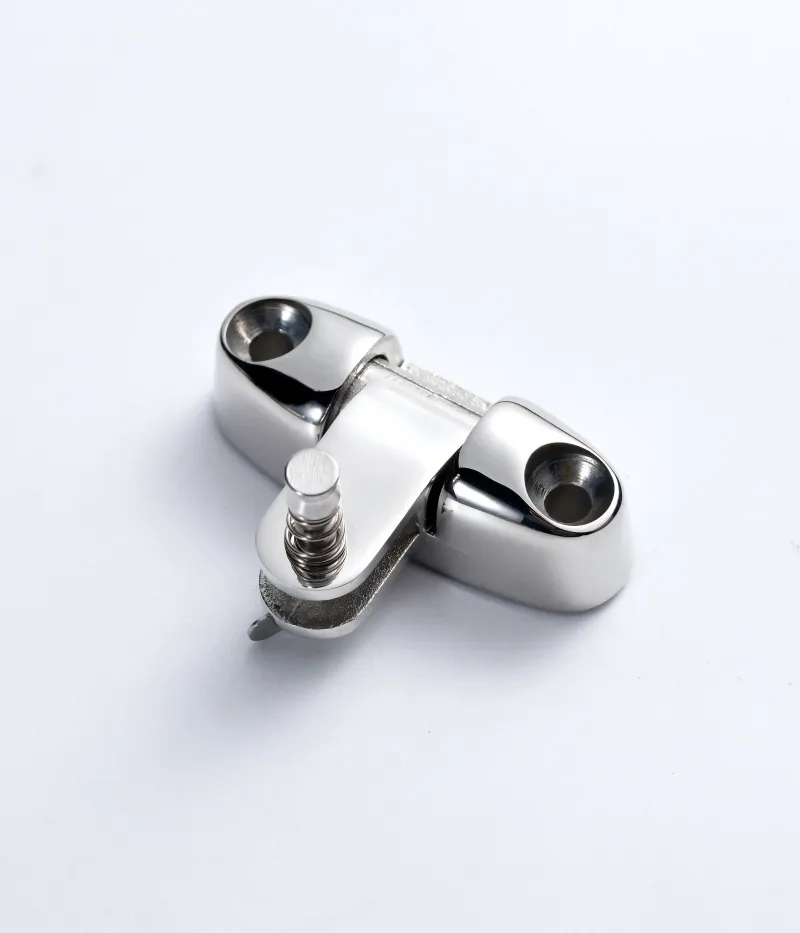

360° Universal Swivel Deck Hinge
Multi-axial articulating 316L swivel hinge. Free-rotating mechanism auto-aligns with dynamic canvas tension to eliminate hinge-pin shear.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
360?? Articulating Base
Precision swivel hub actively compensates for varying canvas angles, preventing mechanical fatigue on mounting bolts.
Wear-Resistant Articulation
Tight-tolerance pins and micro-polished internal surfaces ensure smooth operation without binding.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion.

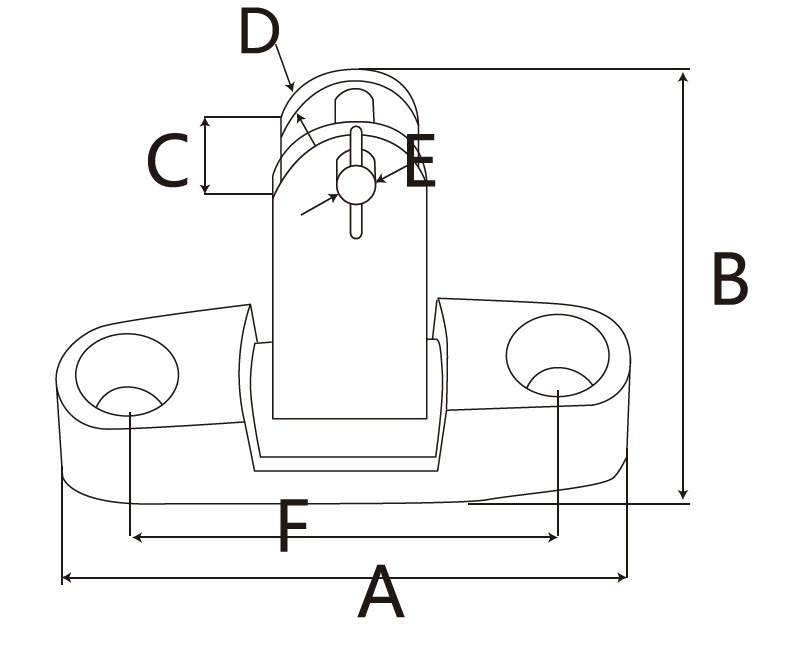

Dimensional Specifications
| RM06-008 | Horn Lock Pin Deck Hinge | 70 | 47.2 | 14 | 7.6 | 6.2 | 51 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
