MACRO VIEW
SKU: RM01-002

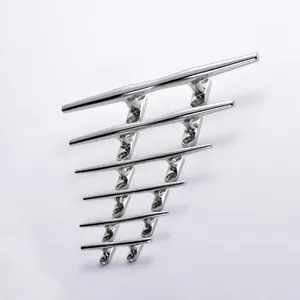

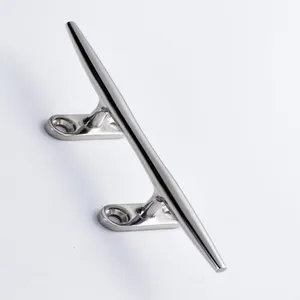

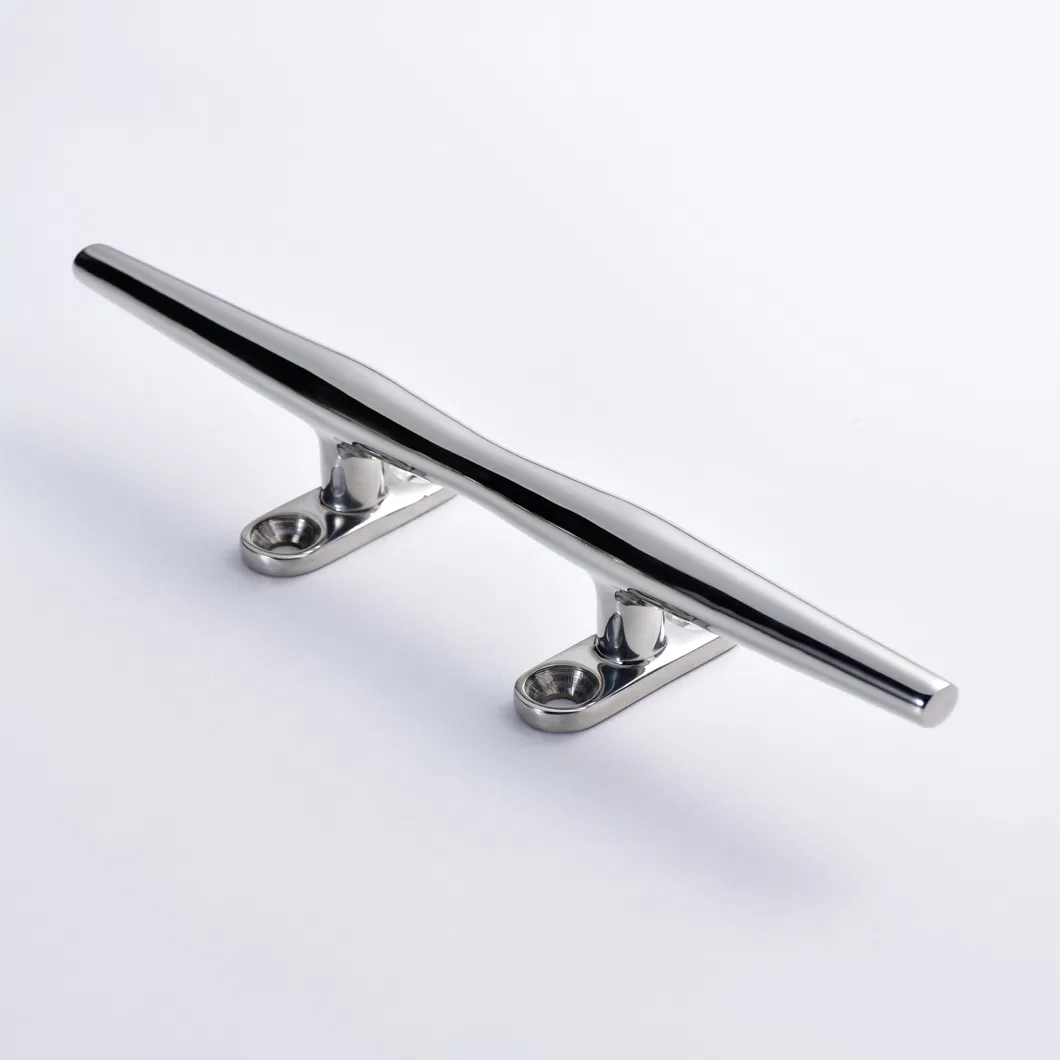

Heavy Duty 316L SS Cleat
Heavy-duty Marine 316L Cleat. CNC-machined base and thick-walled casting designed specifically for commercial and high-stress mooring applications.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Heavy-Wall Construction
Increased cross-sectional thickness yields superior resistance against impact and lateral shear forces.

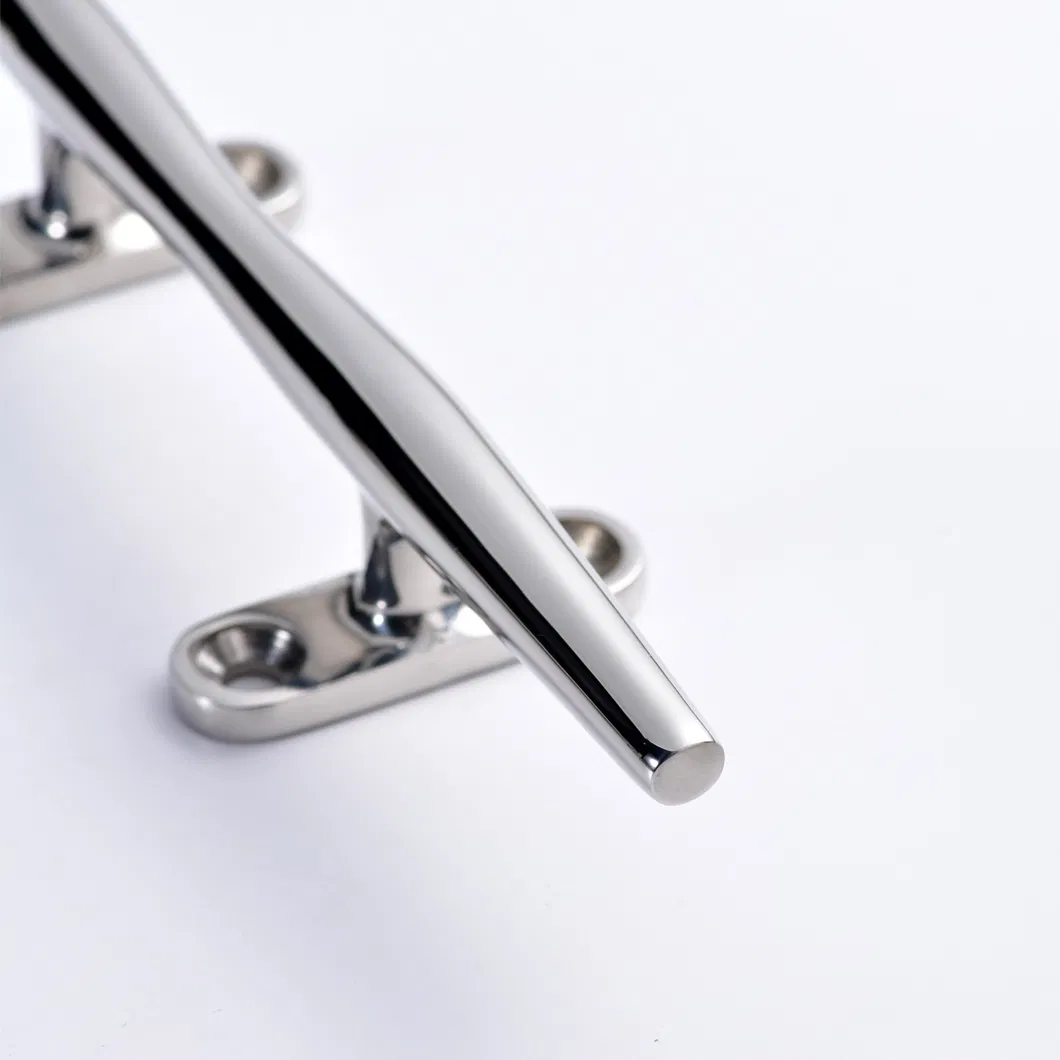

Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero rope abrasion and premium aesthetic.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation from stray hull currents.

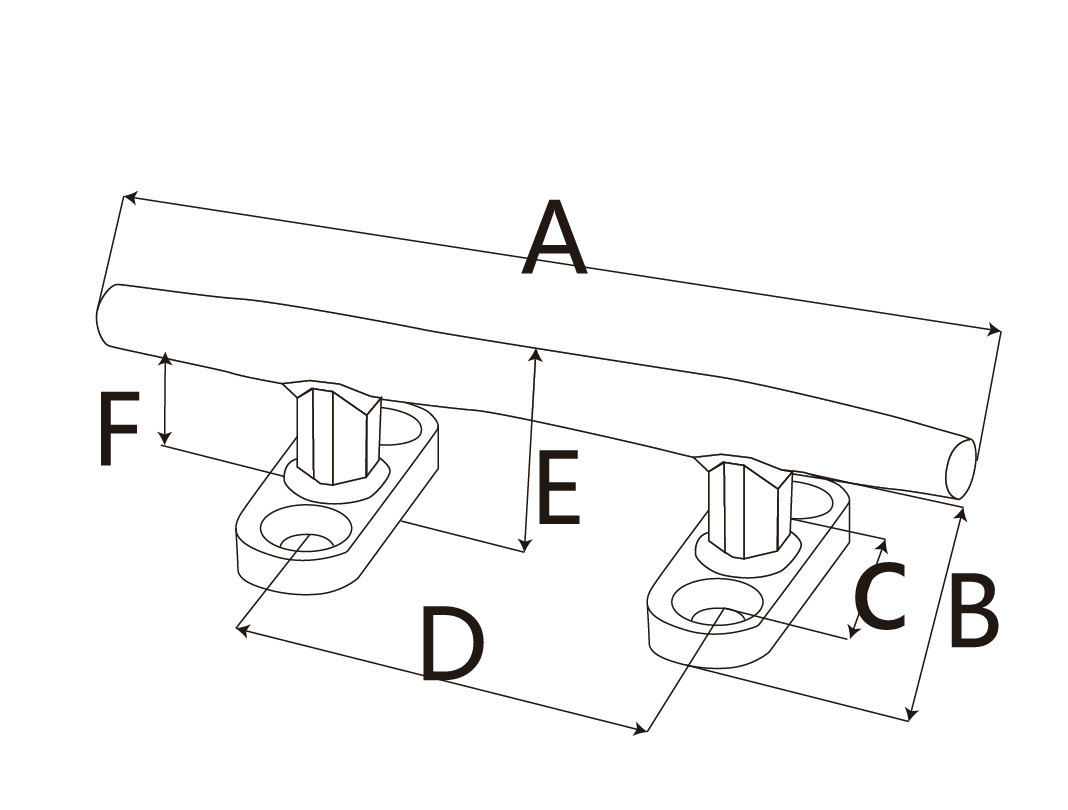

Dimensional Specifications
| RM01-002 | 4" Heavy Duty Cleat | 100 | 37 | 24 | 49 | 24.5 | 10 |
| RM01-002 | 5" Heavy Duty Cleat | 127 | 38.5 | 26 | 57 | 29 | 13.5 |
| RM01-002 | 6" Heavy Duty Cleat | 151 | 45 | 28.5 | 57.5 | 30 | 12.5 |
| RM01-002 | 8" Heavy Duty Cleat | 200 | 55 | 34 | 73 | 38 | 16 |
| RM01-002 | 10" Heavy Duty Cleat | 256 | 65 | 46.5 | 94 | 44 | 17 |
| RM01-002 | 12" Heavy Duty Cleat | 300 | 70 | 50 | 110 | 55 | 24 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
Heavy Duty 316L SS Cleat
