MACRO VIEW
SKU: RM01-001

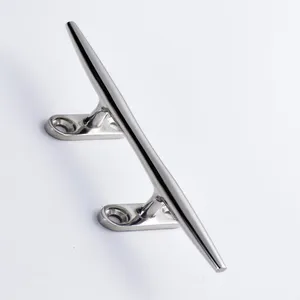

316L SS Hollow Base Cleat
Marine-grade 316L Hollow Base Cleat. Silica sol precision cast to guarantee extreme structural integrity under high dynamic mooring loads.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages

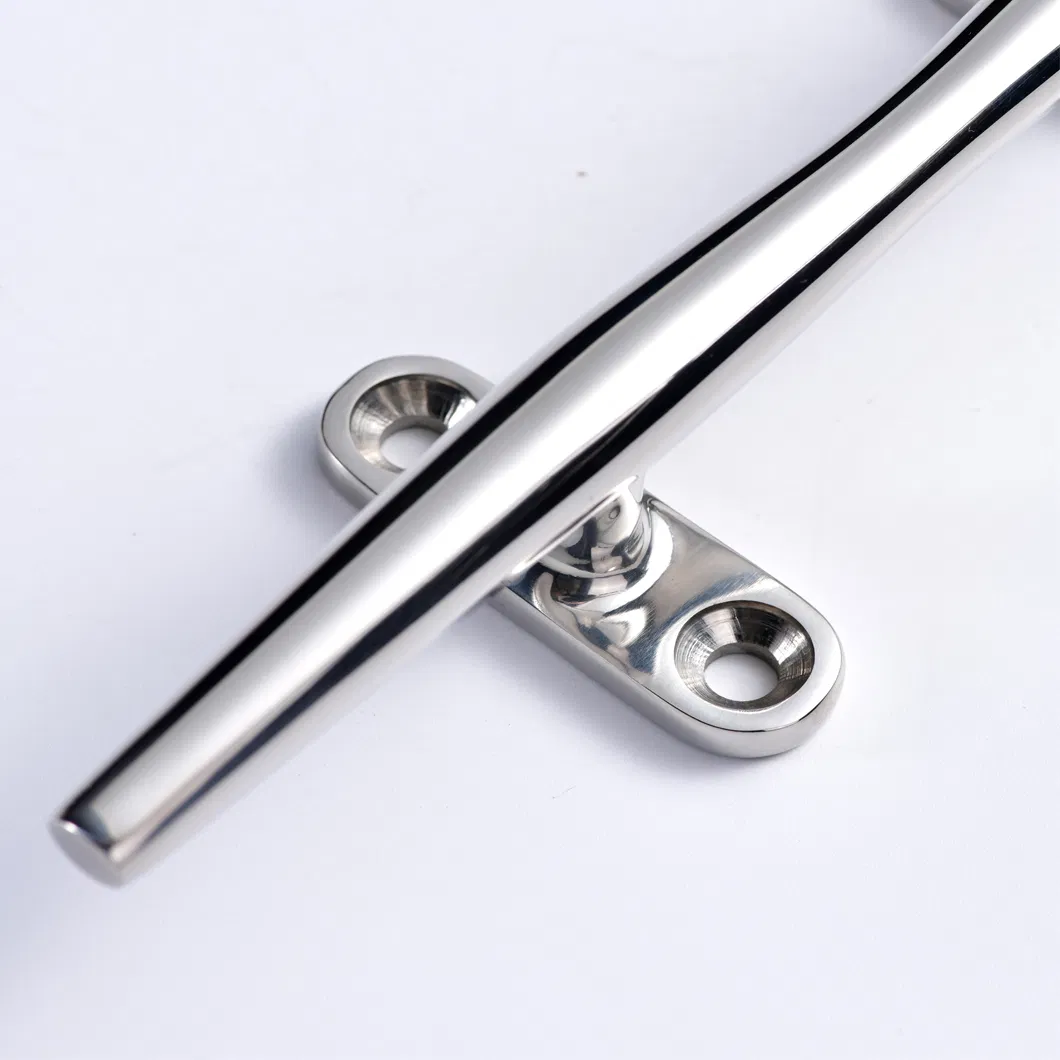

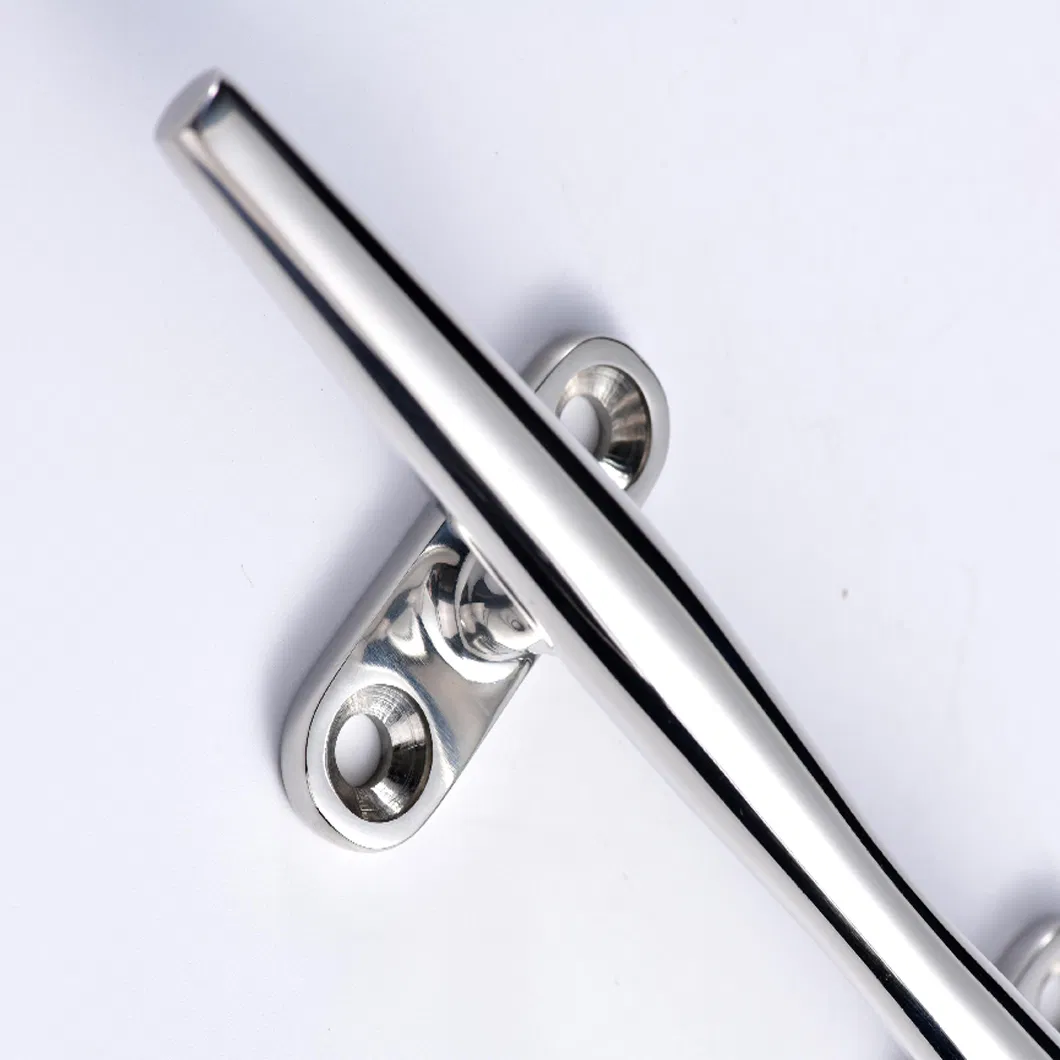

Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero rope abrasion and premium aesthetic under harsh marine environments.
Optimized Load Distribution
Engineered base geometry maximizes tensile strength and distributes stress uniformly across the hull.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation from stray hull currents.

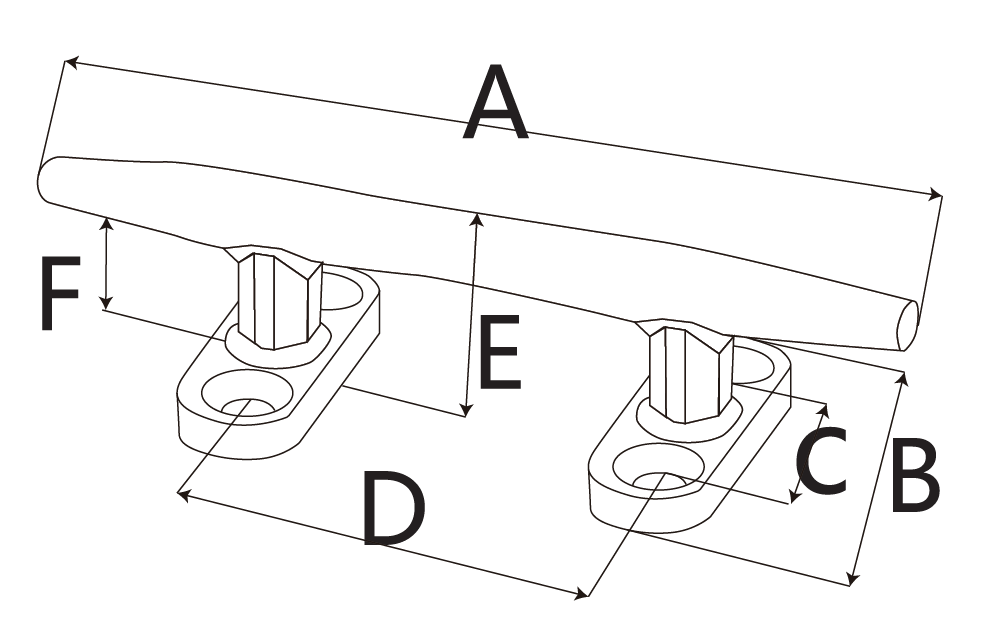

Dimensional Specifications

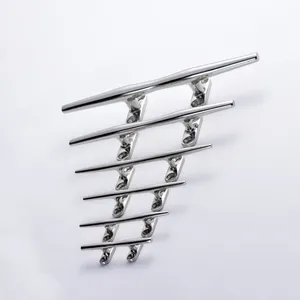

| RM01-001 | 4" Hollow Base Cleat | 102 | 37 | 23 | 52 | 21 | 8.5 |
| RM01-001 | 5" Hollow Base Cleat | 125 | 38 | 25 | 55 | 27.5 | 12 |
| RM01-001 | 6" Hollow Base Cleat | 150 | 44 | 26.5 | 57 | 31 | 14 |
| RM01-001 | 8" Hollow Base Cleat | 200 | 51 | 34 | 72 | 36.5 | 18 |
| RM01-001 | 10" Hollow Base Cleat | 252 | 66 | 47 | 95 | 44 | 20 |
| RM01-001 | 12" Hollow Base Cleat | 300 | 70 | 49 | 96 | 52.5 | 28 |
| RM01-001 | 15" Hollow Base Cleat | 376 | 80 | 59 | 128 | 61.5 | 35 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
Direct Factory Quote
Start Your Inquiry
Share the part number, quantity and key requirements. We will review your inquiry and confirm pricing and lead time.
Inquiring Item:
316L SS Hollow Base Cleat
