MACRO VIEW
SKU: RM09-002
Symmetrical 316 SS Butt Hinge
Symmetrical flush-mount 316L butt hinge. Tight-tolerance CNC articulation ensures silent, zero-play operation over decades.
Select Dimensions
Material Grade As Specified
Process As Specified
Inspection As Required
Material Options316 / 316L Stainless
Order QuantityMOQ by Part & Quantity
OEM / ODMProject-Based Lead Time
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Symmetrical Load Distribution
Equal-leaf geometry perfectly distributes opening loads across both mounting plates for maximum screw-holding power.
Wear-Resistant Articulation
Tight-tolerance pins and micro-polished internal surfaces ensure smooth operation without binding.
Mirror Polished Finish
Hand-polished to Ra < 0.05??m, ensuring zero abrasion and premium aesthetic under harsh marine environments.

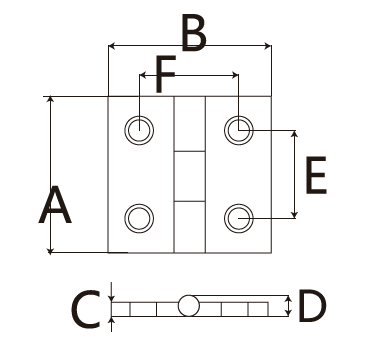

Dimensional Specifications
| RM09-002 | 60*60 Symmetrical Hinge | 60 | 60 | 5 | 15 | ||
| RM09-002 | 75*75 Symmetrical Hinge | 75 | 75 | 6 | 16 | 40 | 49 |
Standard Export Packaging
Export packaging is selected for the part and shipment, with protective wrapping, cartons or pallets where required.
