MACRO VIEW
SKU: RM18-004

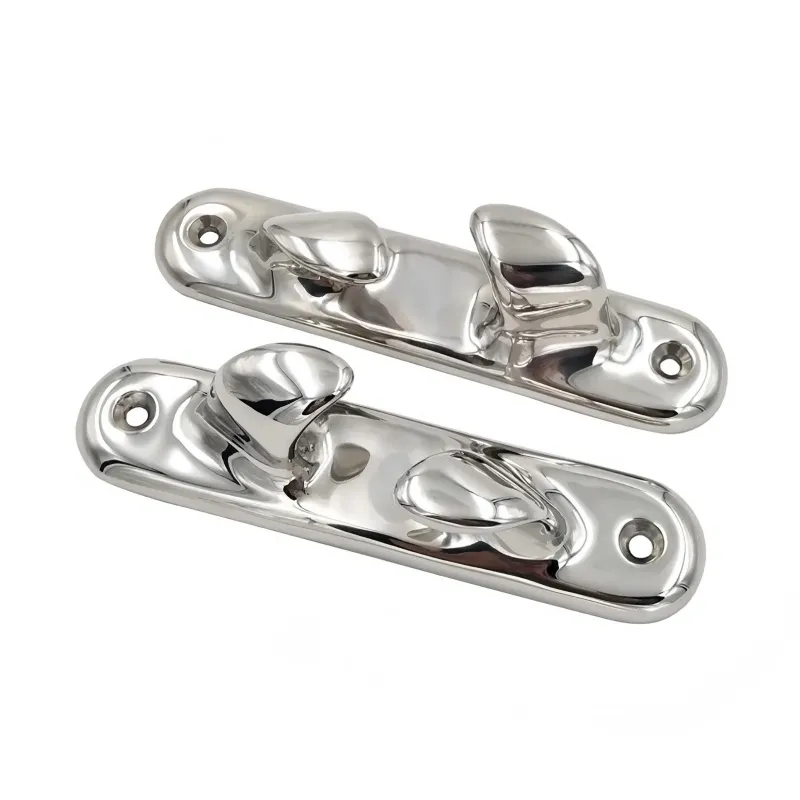

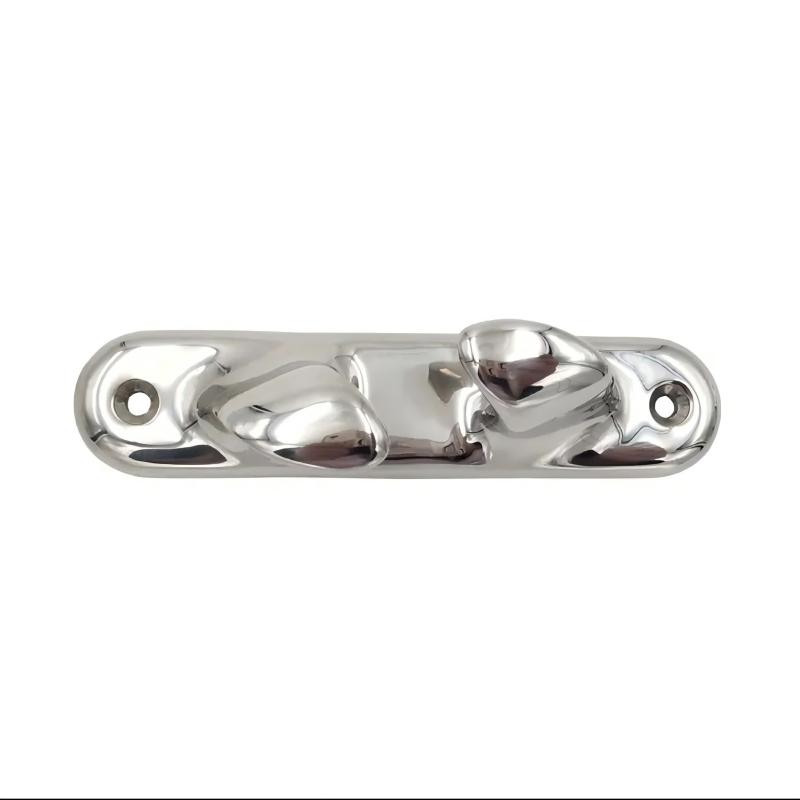

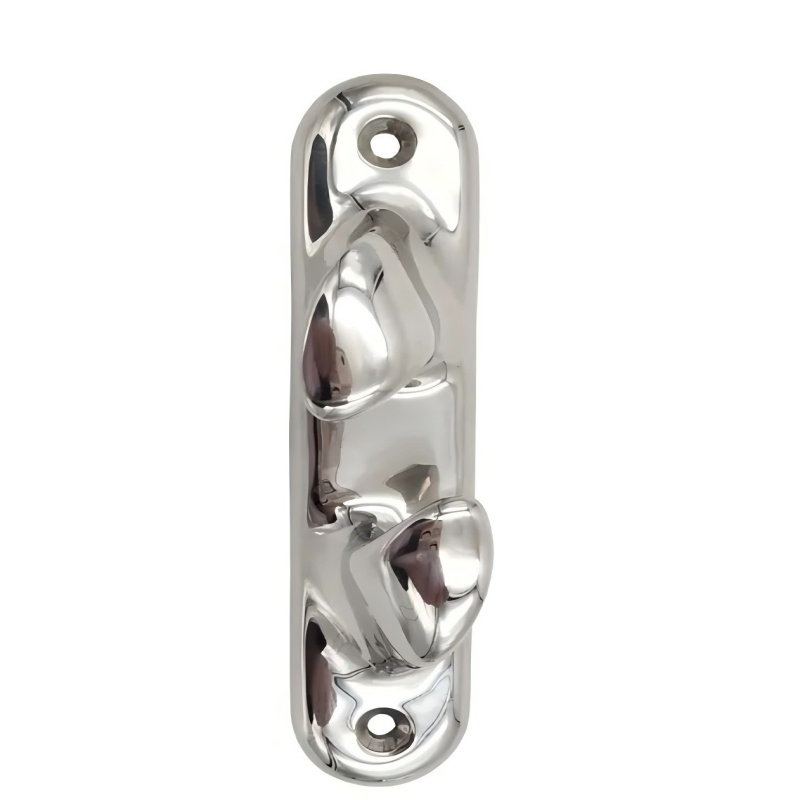

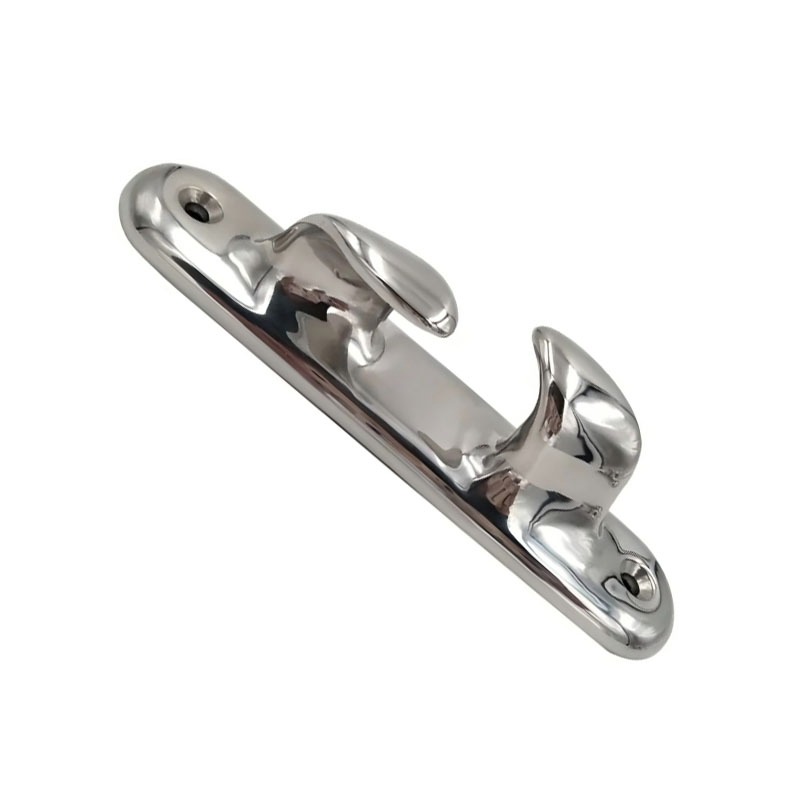

Recessed / Concave Marine Bow Chock
Recessed 316L concave bow chock. Contoured mounting base mates flawlessly with curved bow rails, guiding mooring lines safely overboard.
Select Dimensions
Material Grade 316L Stainless
Process Sol Casting
Spectrum SGS Tested
Premium Material100% AISI 316/316L
Flexible MOQSupport Mixed Orders
OEM / ODM20-Day Fast Tooling
Global DispatchFOB Qingdao / Tianjin
Design & Structural Advantages
Gunwale-Matched Curvature
Precision-milled concave bottom eliminates rocking and provides a completely gap-free installation on rounded decking.
Silica Sol Casting
Void-free internal core guarantees maximum tensile strength against intense wave surges.
Galvanic Isolation Prep
High-purity 316L stainless steel significantly reduces the risk of metal degradation.

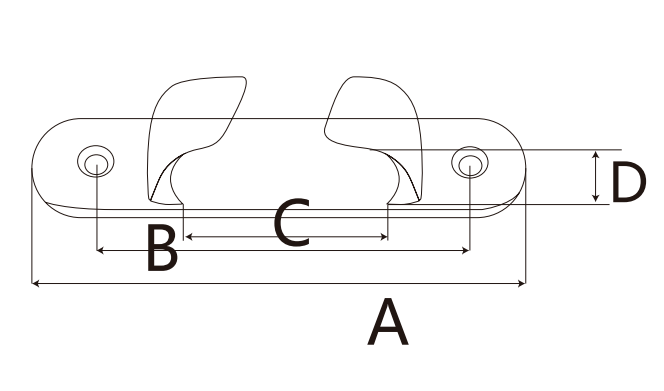

Dimensional Specifications
| RM18-004 | 6" Left/Right Concave Chock | 155 | 124.5 | 29 | 21 |
| RM18-004 | 8" Left/Right Concave Chock | 204 | 165 | 55 | 27 |
| RM18-004 | 10" Left/Right Concave Chock | 260 | 210 | 60 | 32 |
Standard Export Packaging
Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
Direct Factory Quote
Start Your Inquiry
Provide your target quantities. Our engineers will return an official quotation within 24 hours.
Inquiring Item:
Recessed / Concave Marine Bow Chock
