316L SS Wing Anchor (Delta Style)

MACRO VIEW

316L SS Wing Anchor (Delta Style) detail 1

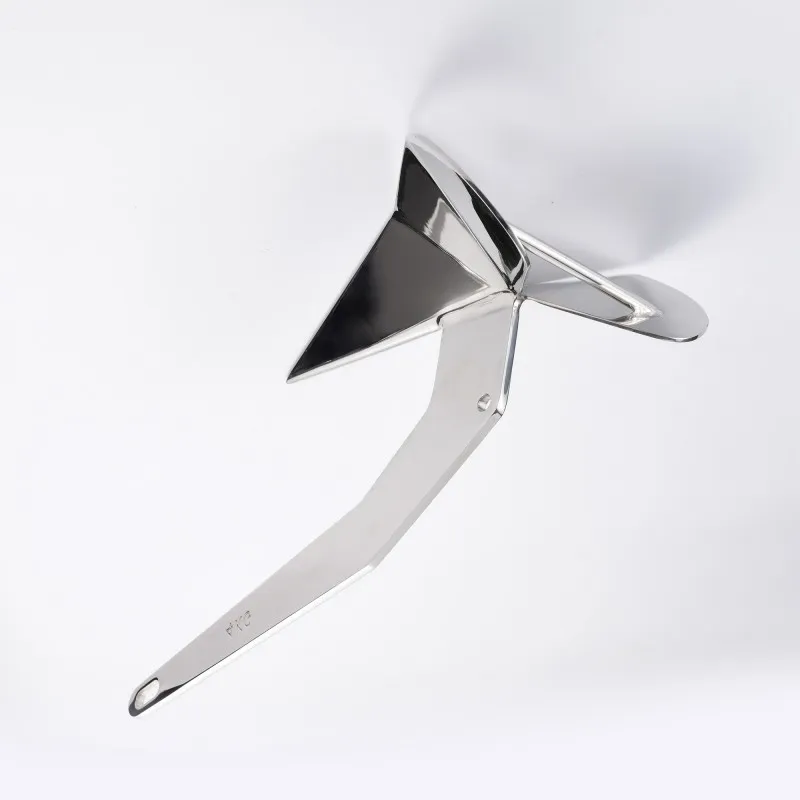

316L SS Wing Anchor (Delta Style) detail 2

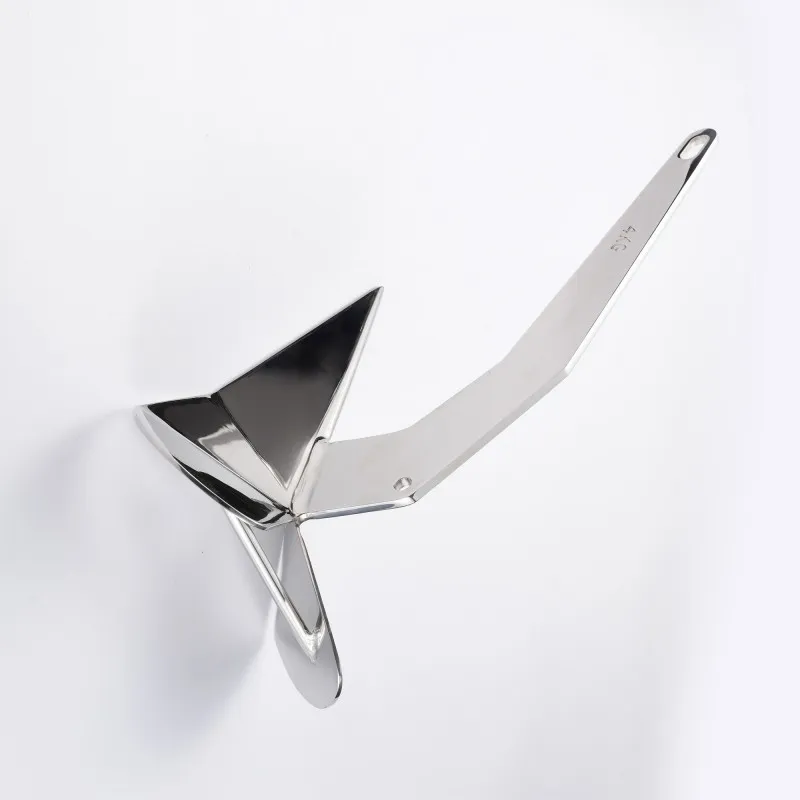

316L SS Wing Anchor (Delta Style) detail 3

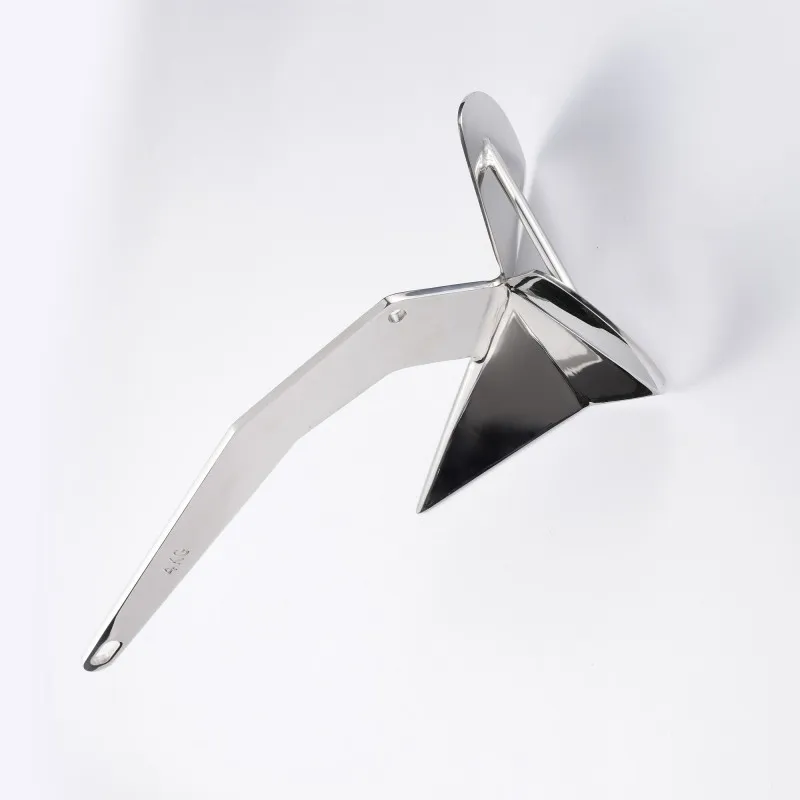

316L SS Wing Anchor (Delta Style) detail 4

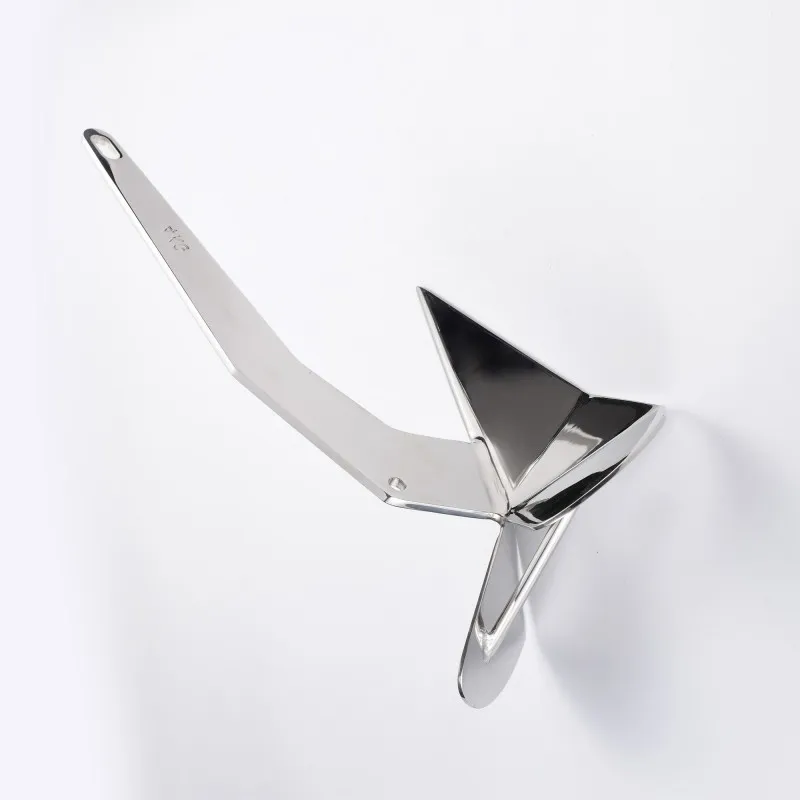

316L SS Wing Anchor (Delta Style) detail 5

SKU: RM11-004

316L SS Wing Anchor (Delta Style)

Self-launching 316L wing delta anchor. Ballasted tip profile ensures immediate self-righting and deep seabed penetration upon dropping.

Select Dimensions

Material Grade 316L Stainless

Process Sol Casting

Spectrum SGS Tested

Request a Quote Download CAD

Premium Material100% AISI 316/316L

Flexible MOQSupport Mixed Orders

OEM / ODM20-Day Fast Tooling

Global DispatchFOB Qingdao / Tianjin

Design & Structural Advantages

Ballasted Wing Profile

Low center of gravity geometry forces the sharp tip to instantly bite into hard sand and clay seabeds.

Silica Sol Casting

Void-free internal core guarantees maximum tensile strength against intense wave surges.

Galvanic Isolation Prep

High-purity 316L stainless steel significantly reduces the risk of metal degradation.

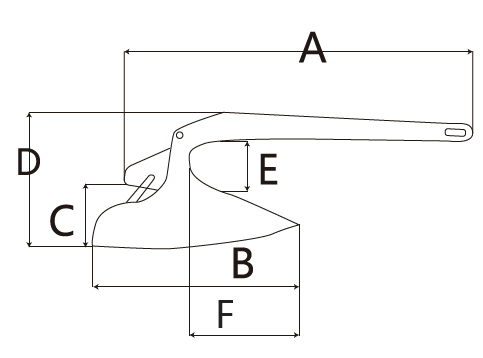

Dimensional Specifications

RM11-004	3kg Delta Anchor	444	200	180	110	130	310
RM11-004	4kg Delta Anchor	518	220	195	120	145	310
RM11-004	5kg Delta Anchor	580	260	240	145	150	410
RM11-004	6kg Delta Anchor	580	260	240	145	150	410
RM11-004	7kg Delta Anchor	580	260	240	145	150	410
RM11-004	7.5kg Delta Anchor	610	270	285	150	200	440
RM11-004	8kg Delta Anchor	655	277	285	150	196	470
RM11-004	10kg Delta Anchor	680	280	296	160	210	480
RM11-004	15kg Delta Anchor	810	340	315	190	255	440
RM11-004	20kg Delta Anchor	840	365	339	200	270	465
RM11-004	25kg Delta Anchor	950	395	433	230	295	600
RM11-004	30kg Delta Anchor	1035	420	460	250	315	650
RM11-004	40kg Delta Anchor	1115	460	510	270	335	680
RM11-004	50kg Delta Anchor	1200	487	540	290	370	720
RM11-004	60kg Delta Anchor	1270	595	515	270	390	750
RM11-004	80kg Delta Anchor	1470	660	590	310	470	770

Standard Export Packaging

Every piece follows a strict 3-step protocol: bubble wrap ➔ heavy-duty cartons ➔ ISPM-15 pallets.
